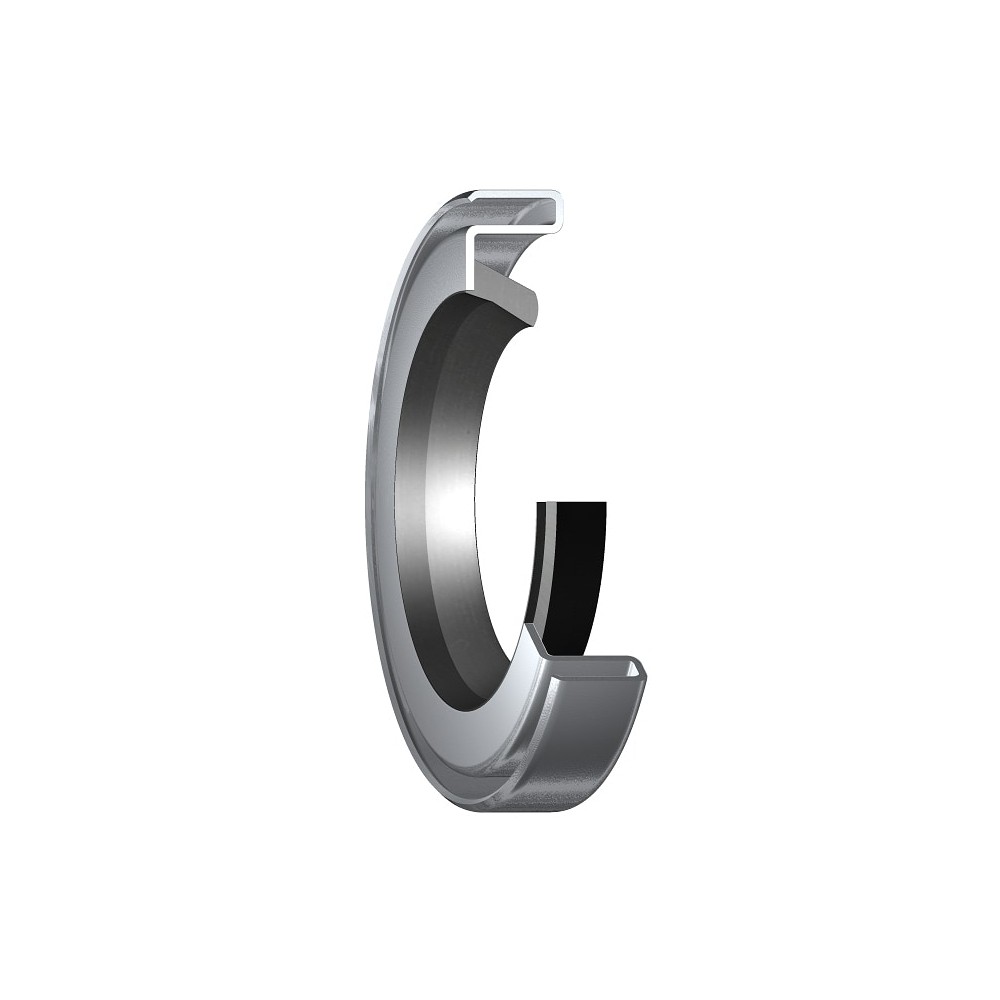

SKF 27394 Radial shaft seals

SKF 27394 Radial shaft seals

Product Code: 27394
Part/No: Eshop044590
EAN: 85311028462
Brand: SKF
Radial shaft seals are used between rotating and stationary machine components, or between components in relative motion. HM21 seals are designed with a sealant coated metal case. They have a conventional double sealing lip made of elastomer. Typical applications include grease lubricated agriculture machinery.
Maximise the exclusion of contamination
Accommodate low speed
Easy installation
€20.68
Tax included
Quantity

100% Shopping Security
  On Request
Dimensions
Shaft diameter 69.85 mm
Housing bore diameter 95.2754 mm
Seal width 6.35 mm
Performance
Maximum operating temperature 100 °C
Permissible circumferential speed 9.19 m/s
Minimum operating temperature -40 °C
Rotational speed 2.513 r/min
Properties
Shaft diameter 69.85 mm
Design HM21
Auxiliary lip No
Unit system Inch
Sealing lip material Nitrile rubber (NBR)
Type of outside diameter Metal-cased
Logistics
EAN code 85311028462
Product net weight 0.039 kg
eClass name Radial shaft pack. ring
Pack gross weight 0.1039 kg
