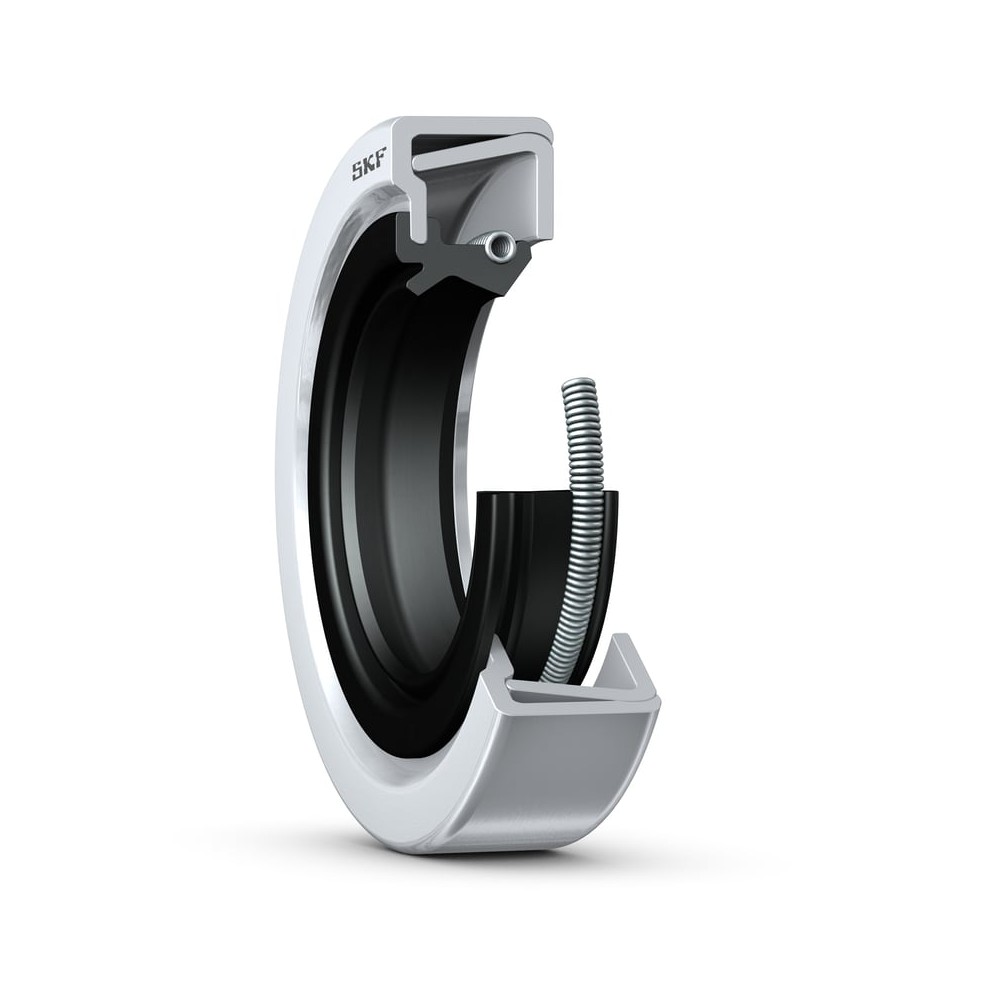

SKF 57584 Radial shaft seals

SKF 57584 Radial shaft seals

Product Code: 57584
Part/No: Eshop045977
EAN: 0008531103860
Brand: SKF
Radial shaft seals are used between rotating and stationary machine components, or between components in relative motion. CRSHA1 seals are designed with a double metal case, a sealing lip and an contacting auxiliary lip made of elastomer for best sealing against the rotating shaft. The seal also has a garter spring to optimize sealing against the shaft.
For oil or grease
With garter spring
Easy installation
€0.00
(*The price will be determined)
Tax included
Quantity

100% Shopping Security
  On Request
Dimensions
Shaft diameter 146.05 mm
Housing bore diameter 190.55 mm
Seal width 14.3002 mm
Performance
Maximum operating temperature 100 °C
Permissible circumferential speed 12.18 m/s
Minimum operating temperature -40 °C
Rotational speed 1.593 r/min
Properties
Shaft diameter 146.05 mm
Design CRSHA1
Auxiliary lip Yes
Unit system Inch
Sealing lip material Nitrile rubber (NBR)
Type of outside diameter Metal-cased
Logistics
EAN code 00085311038607
Product net weight 0.3492 kg
eClass name Radial shaft pack. ring
Pack gross weight 0.4635 kg
