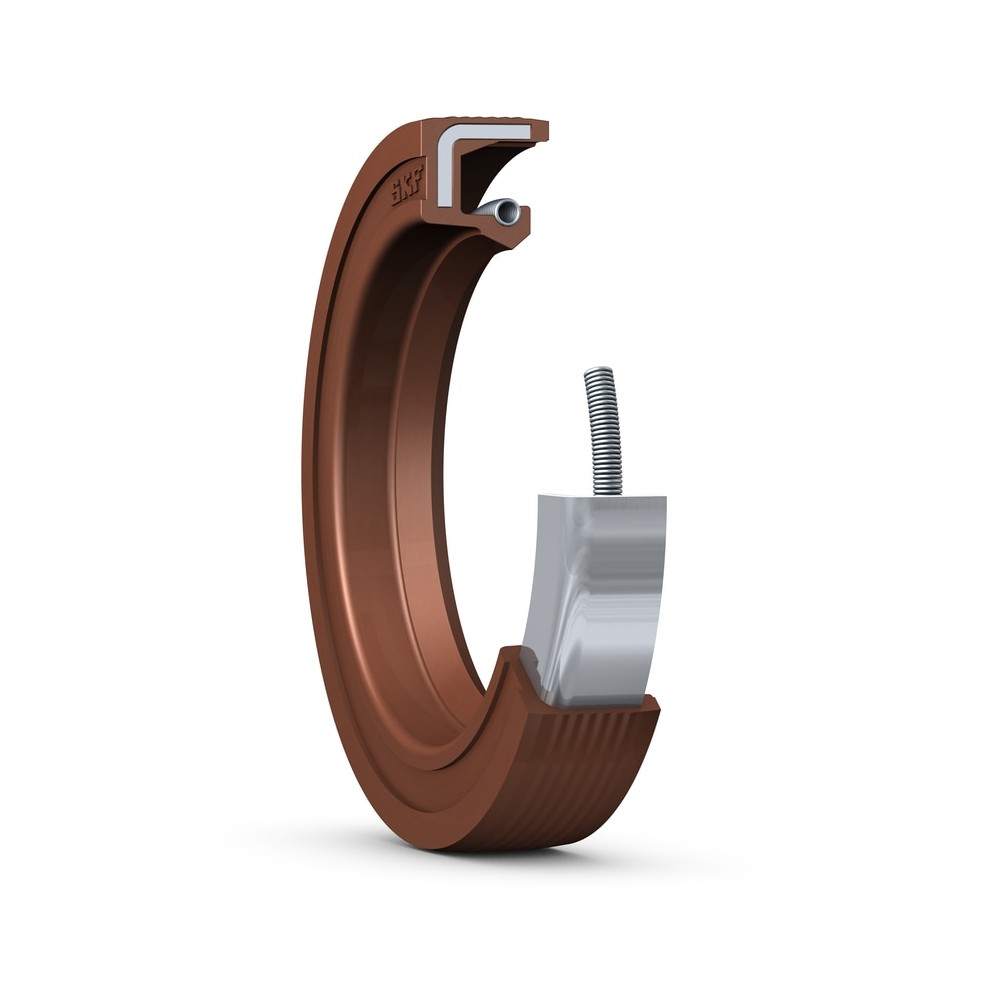

SKF 85X100X10 HMS5 V Radial shaft seals

SKF 85X100X10 HMS5 V Radial shaft seals

Product Code: 85X100X10 HMS5 V
Part/No: Eshop046346
EAN: 0731657254679
Brand: SKF
Radial shaft seals are used between rotating and stationary machine components, or between components in relative motion. HMS5 seals are designed with a rubber outside diameter. They have a conventional sealing lip made of elastomer with a garter spring to maintain the right radial load.
High pumping rate
With garter spring
Accommodate misalignment
€22.47
Tax included
Quantity

100% Shopping Security
  On Request
Dimensions
Shaft diameter 85 mm
Housing bore diameter 100 mm
Seal width 10 mm
Performance
Maximum operating temperature 200 °C
Permissible circumferential speed 31.15 m/s
Minimum operating temperature -20 °C
Rotational speed 7.020 r/min
Properties
Shaft diameter 85 mm
Design HMS5
Auxiliary lip No
Unit system Metric
Sealing lip material Fluoro rubber (FKM)
Type of outside diameter Rubber metal reinforced
Logistics
EAN code 07316572546796
Product net weight 0.0456 kg
eClass name Radial shaft pack. ring
Pack gross weight 0.0546 kg
