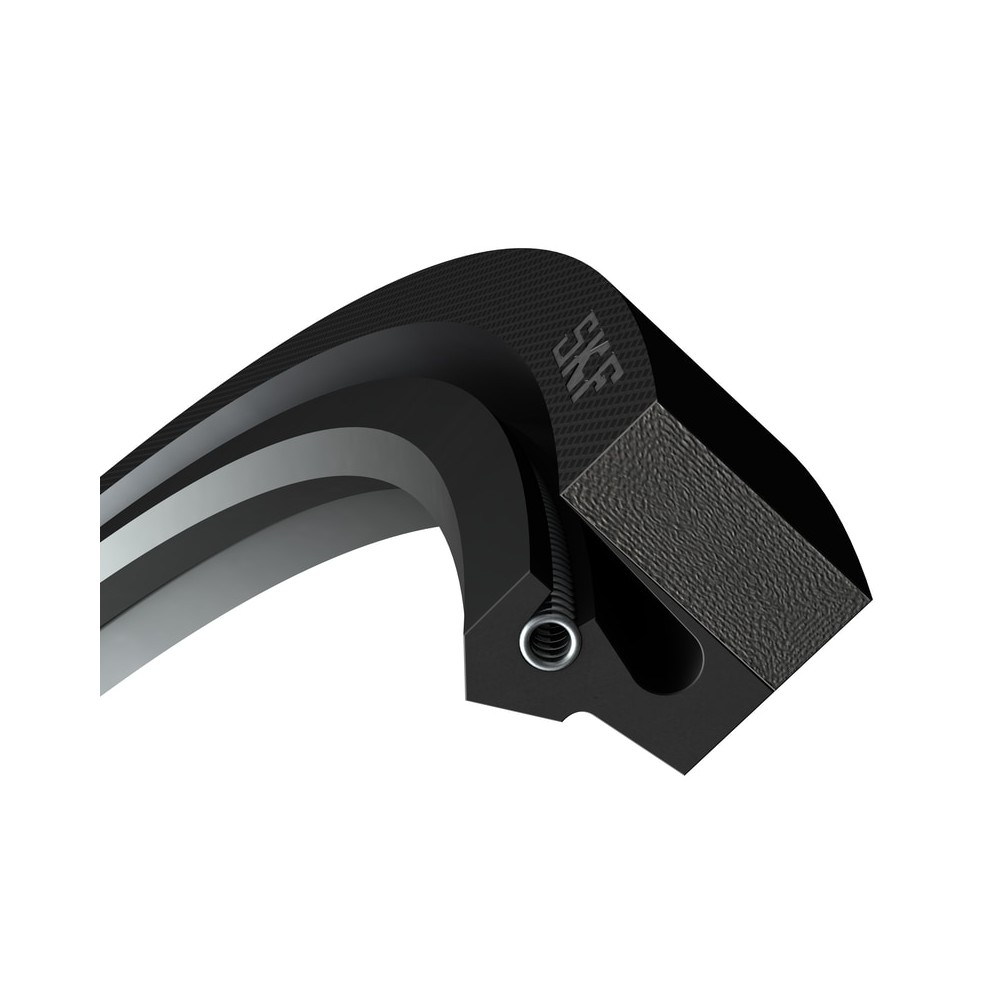

SKF 420X460X20 HFS R Radial shaft seals

SKF 420X460X20 HFS R Radial shaft seals

Product Code: 420X460X20 HFS R
Part/No: Eshop051207
EAN: 0731657976370
Brand: SKF
HFS seals have a garter spring and are designed for housings with a cover plate. They perform exceptionally well in large-size machinery, customized or heavy-duty machinery, and industrial gearboxes. They are designed for industries such as metal, construction, wind energy, forestry, mining, and pulp and paper.
Robust design
Excellent grease or oil retention
Wide range of dimensions
Fast set up for new sizes
€0.00
(*The price will be determined)
Tax included
Quantity

100% Shopping Security
  On Request
Dimensions
Shaft diameter 420 mm
Housing bore diameter 460 mm
Housing groove width 20 mm
Performance
Maximum operating temperature 100 °C
Permissible circumferential speed 15 m/s
Minimum operating temperature -25 °C
Rotational speed 682.1 r/min
Properties
Shaft diameter 420 mm
Design HFS
Auxiliary lip No
Unit system Metric
Sealing lip material Nitrile rubber (NBR)
Type of outside diameter Rubber, fabric reinforced
Logistics
EAN code 07316579763707
Product net weight 0.64 kg
eClass name Radial shaft pack. ring
Pack gross weight 0.999 kg

Related Products

4 other products in the same category:

SKF 1200230 Radial shaft seals
SKF

SKF 1200230 Radial shaft seals

Shaft diameter 304.8 mm
Housing bore diameter 342.9 mm
Seal width 15.88 mm
Reference: 1200230
Price €0.00
*Prices with vat
  On Request

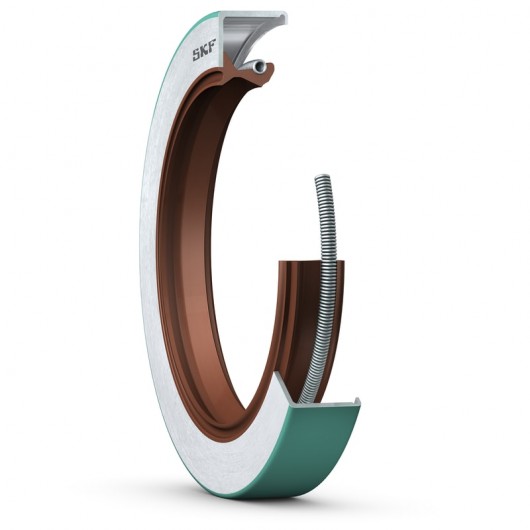

SKF 28779 Radial shaft seals
