SKF
Out of
Stock
  • SALE!

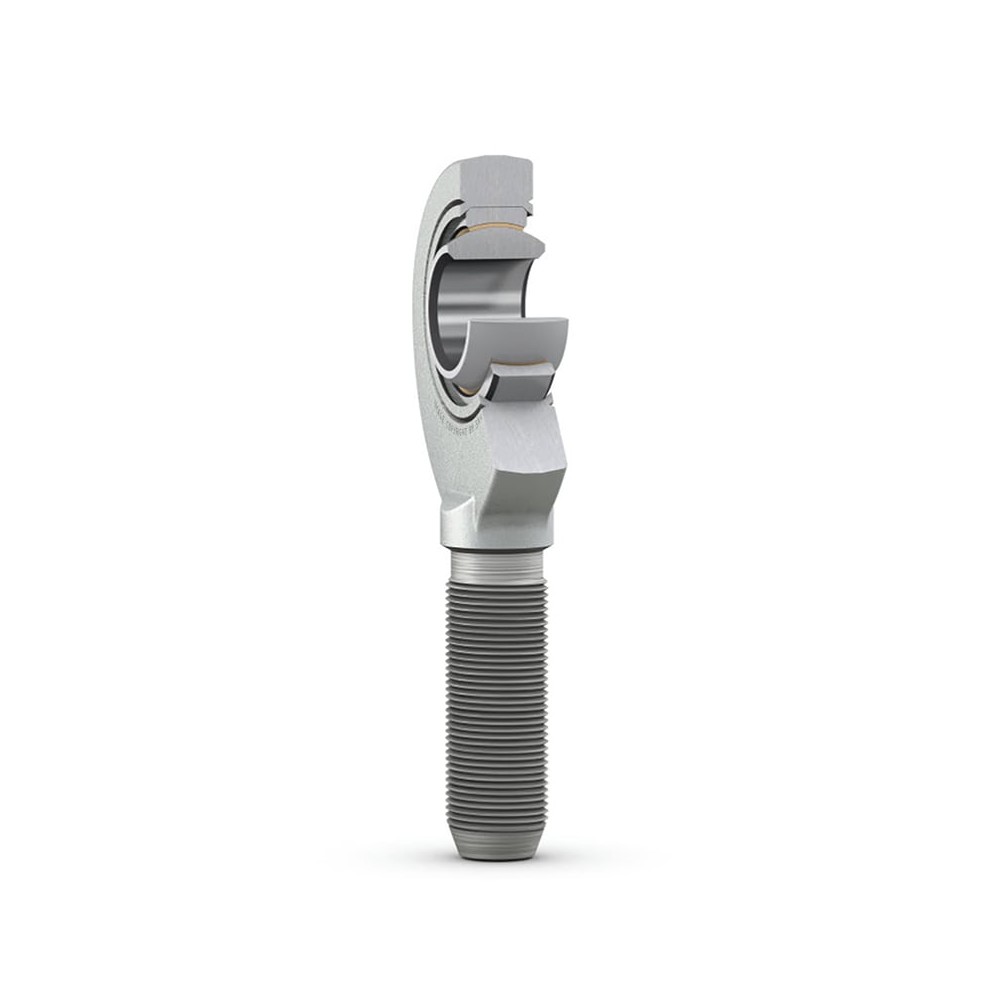

SKF SA 10 C Rod ends

SKF SA 10 C Rod ends

Product Code: SA 10 C
Part/No: Eshop019402
Brand: SKF
These SKF rod ends contain a spherical plain bearing with a steel/PTFE sintered bronze sliding contact surface combination. The bearing is maintenance-free. The male thread is available with a left- (prefix SAL) or right-hand thread.
Long service life
Maintenance-free
Suitable for heavy, constant direction loads
Low coefficient of friction
Simple and ready-to-mount
€114.55
Tax included
Quantity

100% Shopping Security
  On Request
Dimensions
Performance
Basic dynamic load rating 8.65 kN
Basic static load rating 18.3 kN
Properties
Bore diameter bearing inner ring 10 mm
Centre height housing from end of shank 48 mm
Housing length total 65 mm
Outside diameter housing eye 30 mm
Thread designation M 10
Width bearing inner ring 9 mm
Width housing eye 7.5 mm
Sealing Without
Material housing Steel
Attachment feature rod end shank Righthand male thread
Sliding contact surface combination Steel/PTFE sintered bronze
Material inner ring Bearing steel
Material outer ring Deepdrawing steel
Maintenance Maintenancefree
Logistics
Pack gross weight 58.9 g
eClass name Rod end (spherical plain bearing)
EAN 7316577002518
Product net weight 1.457 kg
