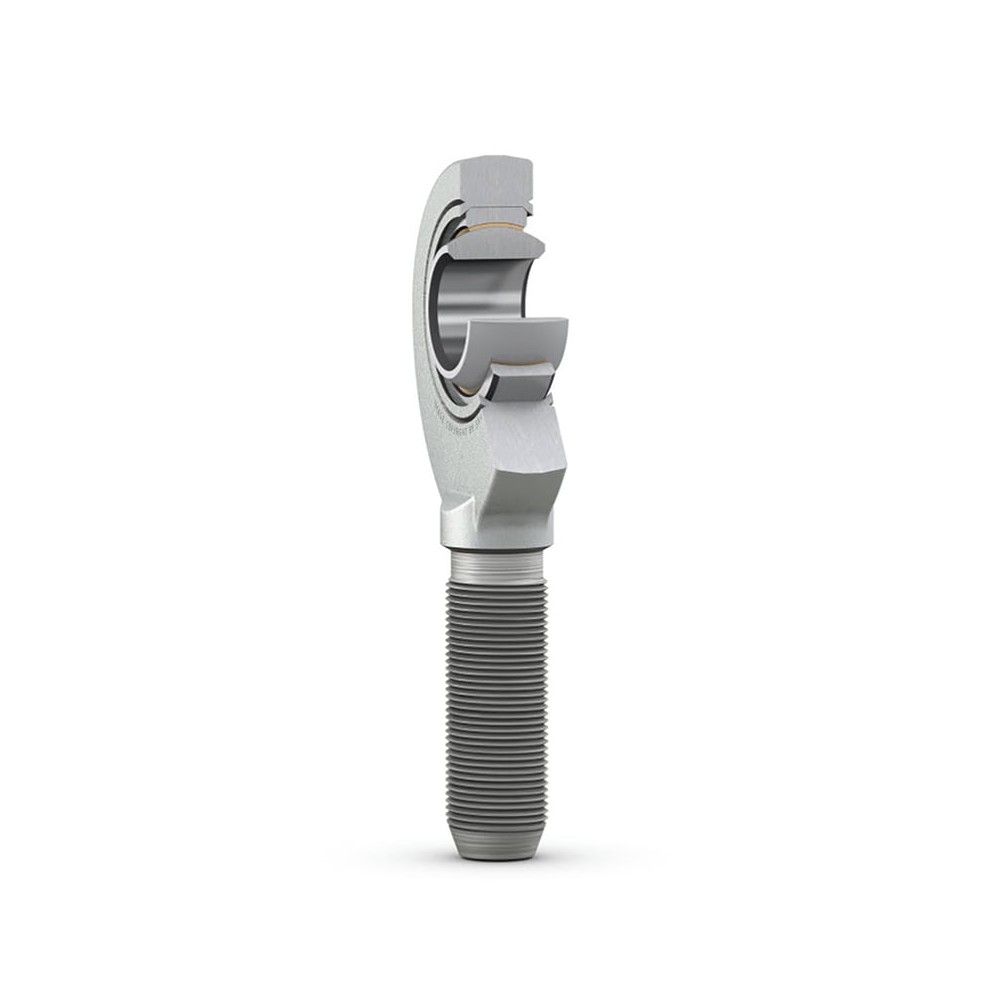

SKF SA 20 C Rod ends

SKF SA 20 C Rod ends

Product Code: SA 20 C
Part/No: Eshop019410
Brand: SKF
SKF rod ends consist of an eye-shaped head with an integral shank that forms a housing for a spherical plain bearing. These rod ends are used in applications such as hydraulic cylinders, steering links, tie rods, or anywhere a precision articulation joint is required. SKF provides both rod ends that require maintenance and rod ends that are maintenance-free.
Bearing housing combination for simple installation
Various designs for individual assemblies
Many sliding contact surface combinations
Available with female or male left- or right-hand thread or with a welding shank
€158.77
Tax included
Quantity

100% Shopping Security
  On Request
Dimensions
Performance
Basic dynamic load rating 31.5 kN
Basic static load rating 51 kN
Properties
Bore diameter bearing inner ring 20 mm
Centre height housing from end of shank 78 mm
Housing length total 107 mm
Outside diameter housing eye 54 mm
Thread designation M 20x1.5
Width bearing inner ring 16 mm
Width housing eye 13.5 mm
Sealing Without
Material housing Steel
Attachment feature rod end shank Righthand male thread
Sliding contact surface combination Steel/PTFE sintered bronze
Material inner ring Bearing steel
Material outer ring Deepdrawing steel
Maintenance Maintenancefree
Logistics
Pack gross weight 333.8 g
eClass name Rod end (spherical plain bearing)
EAN 7316577002587
Product net weight 0.13 kg
