SKF SAKB 14 F Rod ends

SKF SAKB 14 F Rod ends

Product Code: SAKB 14 F
Part/No: Eshop019460
Brand: SKF

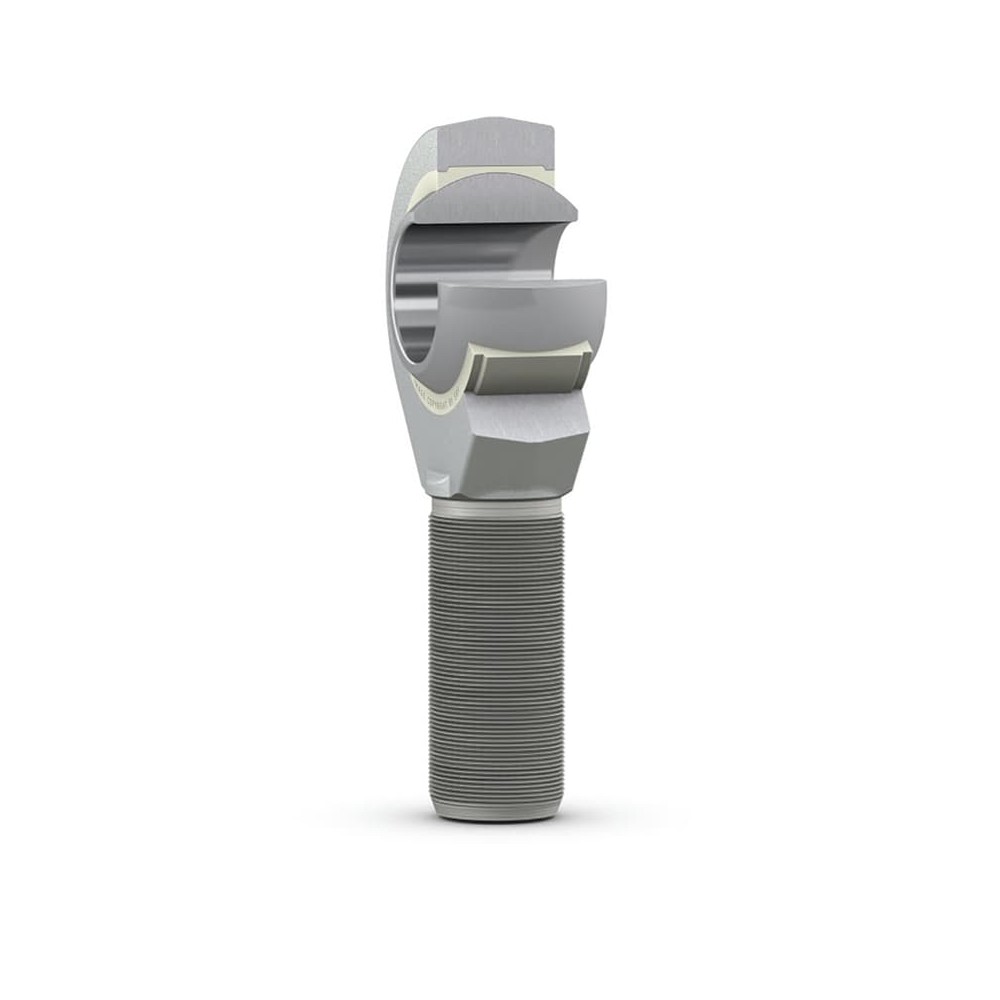

These SKF rod ends have an injection moulded sliding layer of PTFE FRP between the housing and the inner ring. This sliding contact surface combination is maintenance-free. The male thread is available with a left- (prefix SAL) or right-hand thread.
Long service life
Maintenance-free
Relatively insensitive to contaminants
Low coefficient of friction
Simple and ready-to-mount
€226.47
Tax included
Quantity

100% Shopping Security
  On Request
Dimensions
Performance
Basic dynamic load rating 17 kN
Basic static load rating 25.5 kN
Properties
Bore diameter bearing inner ring 14 mm
Centre height housing from end of shank 60 mm
Housing length total 80 mm
Outside diameter housing eye 37 mm
Thread designation M 14
Width bearing inner ring 19 mm
Width housing eye 14.5 mm
Sealing Without
Material housing Steel
Attachment feature rod end shank Righthand male thread
Sliding contact surface combination Steel/PTFE FRP
Material inner ring Bearing steel
Maintenance Maintenancefree
Logistics
Pack gross weight 0.139 kg
eClass name Rod end (spherical plain bearing)
EAN 7316577003744
Product net weight 41.4 g
