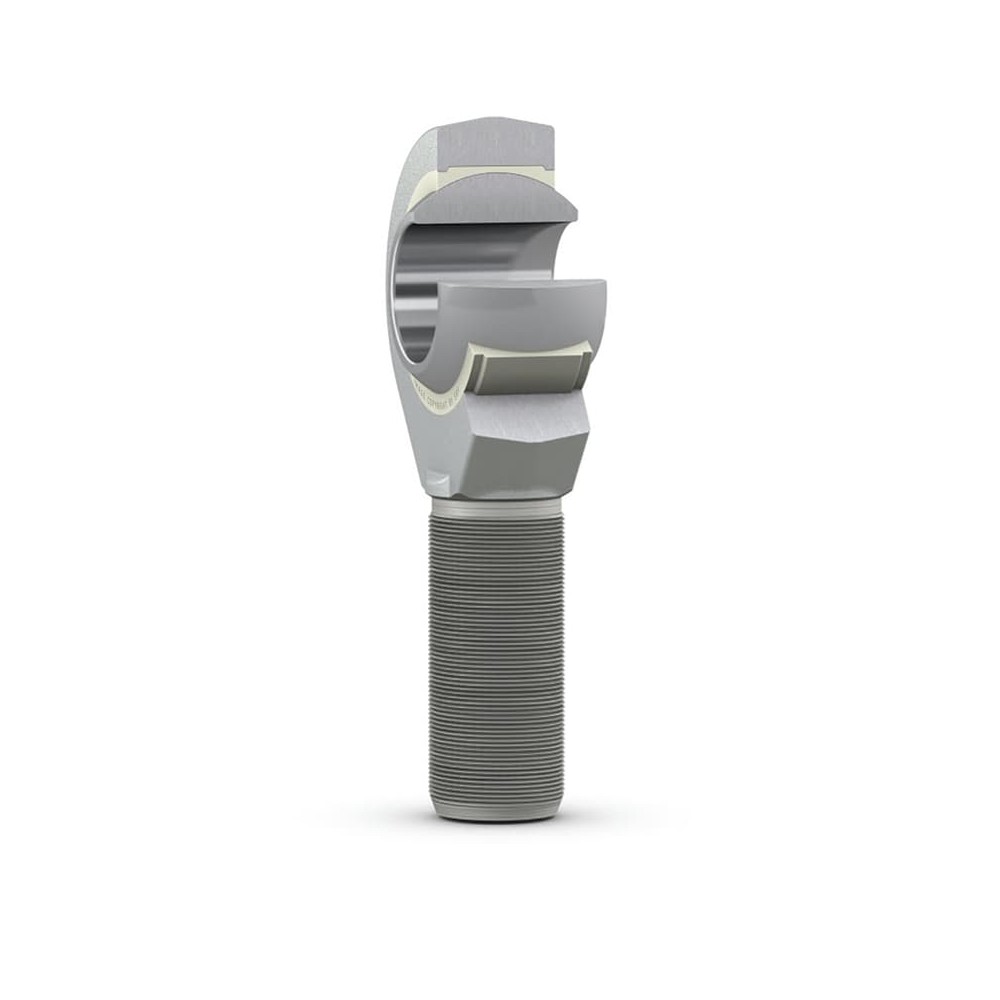

SKF SAKB 5 F Rod ends

SKF SAKB 5 F Rod ends

Product Code: SAKB 5 F
Part/No: Eshop019465
Brand: SKF
These SKF rod ends have an injection moulded sliding layer of PTFE FRP between the housing and the inner ring. This sliding contact surface combination is maintenance-free. The male thread is available with a left- (prefix SAL) or right-hand thread.
Long service life
Maintenance-free
Relatively insensitive to contaminants
Low coefficient of friction
Simple and ready-to-mount
€61.75
Tax included
Quantity

100% Shopping Security
  On Request
Dimensions
Performance
Basic dynamic load rating 3.25 kN
Basic static load rating 5.3 kN
Properties
Bore diameter bearing inner ring 5 mm
Centre height housing from end of shank 33 mm
Housing length total 44 mm
Outside diameter housing eye 19 mm
Thread designation M 5
Width bearing inner ring 8 mm
Width housing eye 7.5 mm
Sealing Without
Material housing Steel
Attachment feature rod end shank Righthand male thread
Sliding contact surface combination Steel/PTFE FRP
Material inner ring Bearing steel
Maintenance Maintenancefree
Logistics
Pack gross weight 18.6 g
eClass name Rod end (spherical plain bearing)
EAN 7316577003706
Product net weight 264.1 g
