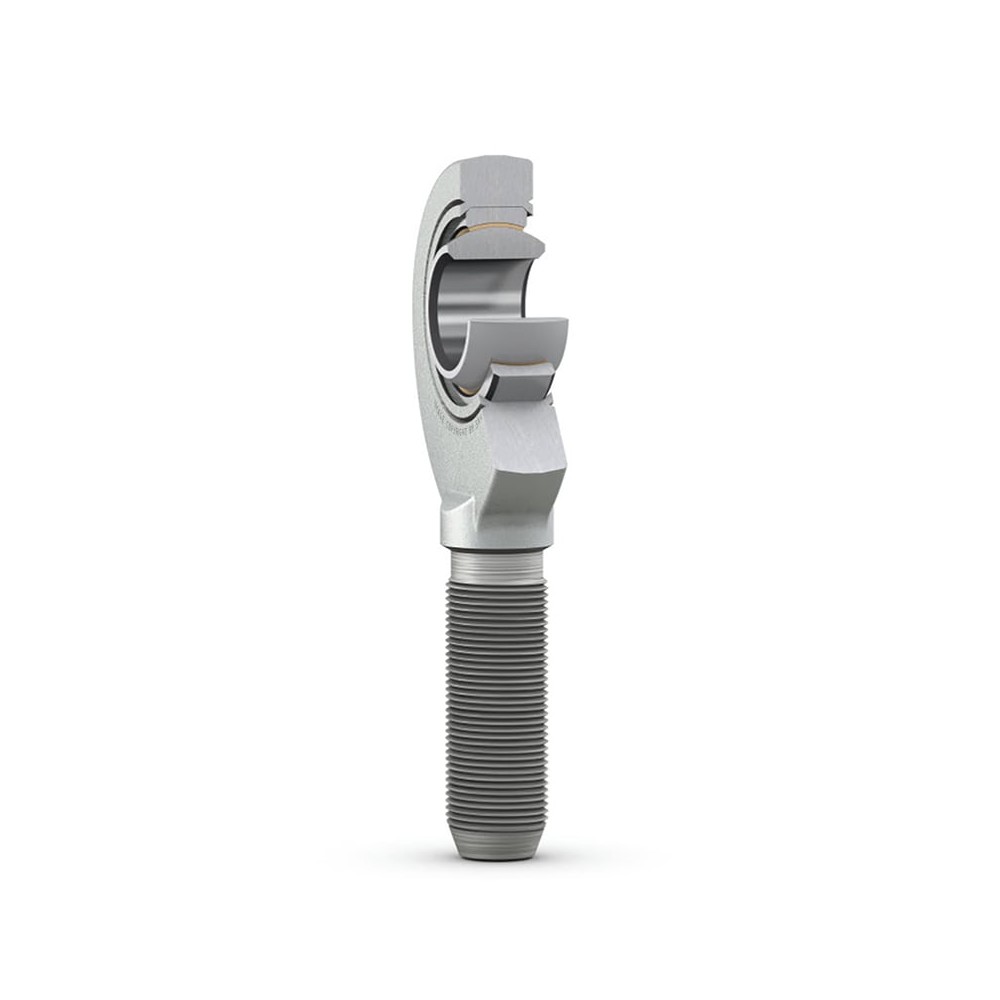

SKF SAL 17 C Rod ends

SKF SAL 17 C Rod ends

Product Code: SAL 17 C
Part/No: Eshop019473
Brand: SKF
These SKF rod ends contain a spherical plain bearing with a steel/PTFE sintered bronze sliding contact surface combination. The bearing is maintenance-free. The male thread is available with a left- (prefix SAL) or right-hand thread.
Long service life
Maintenance-free
Suitable for heavy, constant direction loads
Low coefficient of friction
Simple and ready-to-mount
€178.83
Tax included
Quantity

100% Shopping Security
  On Request
Dimensions
Performance
Basic dynamic load rating 22.4 kN
Basic static load rating 42.5 kN
Properties
Bore diameter bearing inner ring 17 mm
Centre height housing from end of shank 69 mm
Housing length total 94 mm
Outside diameter housing eye 47 mm
Thread designation M 16
Width bearing inner ring 14 mm
Width housing eye 11.5 mm
Sealing Without
Material housing Steel
Attachment feature rod end shank Lefthand male thread
Sliding contact surface combination Steel/PTFE sintered bronze
Material inner ring Bearing steel
Material outer ring Deepdrawing steel
Maintenance Maintenancefree
Logistics
Pack gross weight 203.8 g
eClass name Rod end (spherical plain bearing)
EAN 7316577003447
Product net weight 78.9 g
