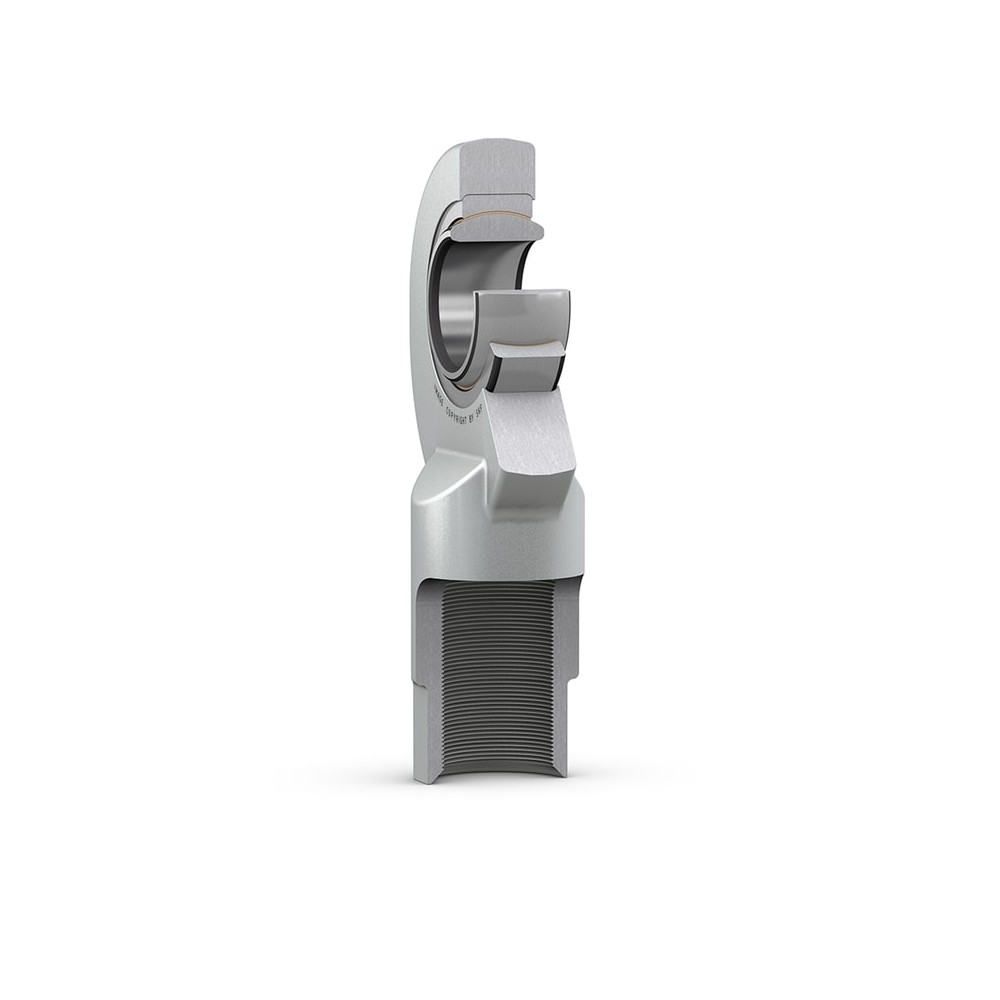

SKF SI 8 C Rod ends

SKF SI 8 C Rod ends

Product Code: SI 8 C
Part/No: Eshop019577
Brand: SKF
These SKF rod ends contain a spherical plain bearing with a steel/PTFE sintered bronze contact surface combination. The bearing is maintenance-free. The female thread is available with a left- (prefix SIL) or right-hand thread.
Long service life
Maintenance-free
Suitable for heavy, constant direction loads
Low coefficient of friction
Simple and ready-to-mount
€109.36
Tax included
Quantity

100% Shopping Security
  Shipped within 24 hours
Dimensions
Performance
Basic dynamic load rating 5.85 kN
Basic static load rating 12.9 kN
Properties
Bore diameter bearing inner ring 8 mm
Centre height housing from end of shank 36 mm
Housing length total 50 mm
Outside diameter housing eye 25 mm
Thread designation M 8
Width bearing inner ring 8 mm
Width housing eye 6.5 mm
Sealing Without
Material housing Steel
Attachment feature rod end shank Righthand female thread
Sliding contact surface combination Steel/PTFE sintered bronze
Material inner ring Bearing steel
Material outer ring Deepdrawing steel
Maintenance Maintenancefree
Logistics
Pack gross weight 40.1 g
eClass name Rod end (spherical plain bearing)
EAN 7316577002822
Product net weight 7938.6 g
