SKF SIA 40 TXE-2LS Rod ends

SKF SIA 40 TXE-2LS Rod ends

Product Code: SIA 40 TXE-2LS
Part/No: Eshop019581
Brand: SKF

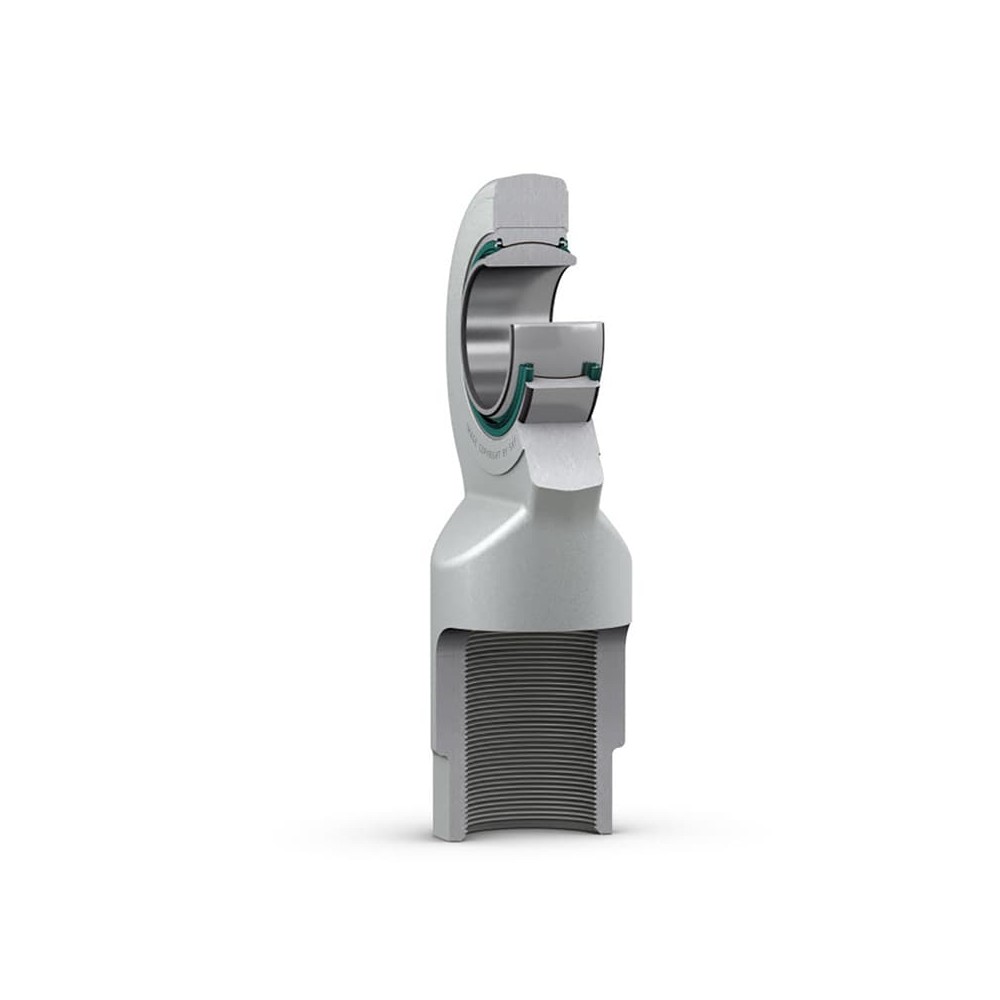

These SKF rod ends contain a spherical plain bearing with a steel/PTFE fabric sliding contact surface combination and a triple-lip, heavy duty contact seal on both sides. The bearing is maintenance-free. The female thread is available with a left- (prefix SIL) or right-hand thread. Some sizes have different fitting dimensions (SAA series).
Long service life
Maintenance-free
Suitable for very heavy, constant direction loads
Low coefficient of friction
Simple and ready-to-mount
€908.44
Tax included
Quantity

100% Shopping Security
  On Request
Dimensions
Performance
Basic dynamic load rating 280 kN
Basic static load rating 166 kN
Properties
Bore diameter bearing inner ring 40 mm
Centre height housing from end of shank 142 mm
Housing length total 191 mm
Outside diameter housing eye 94 mm
Thread designation M 39x3
Width bearing inner ring 28 mm
Width housing eye 24 mm
Sealing type Triplelip
Sealing Seal on both sides
Material housing Steel
Attachment feature rod end shank Righthand female thread
Sliding contact surface combination Steel/PTFE fabric
Material inner ring Bearing steel
Material outer ring Bearing steel
Maintenance Maintenancefree
Logistics
Pack gross weight 2.265 kg
eClass name Rod end (spherical plain bearing)
EAN 7316572082232
Product net weight 0.036 kg
