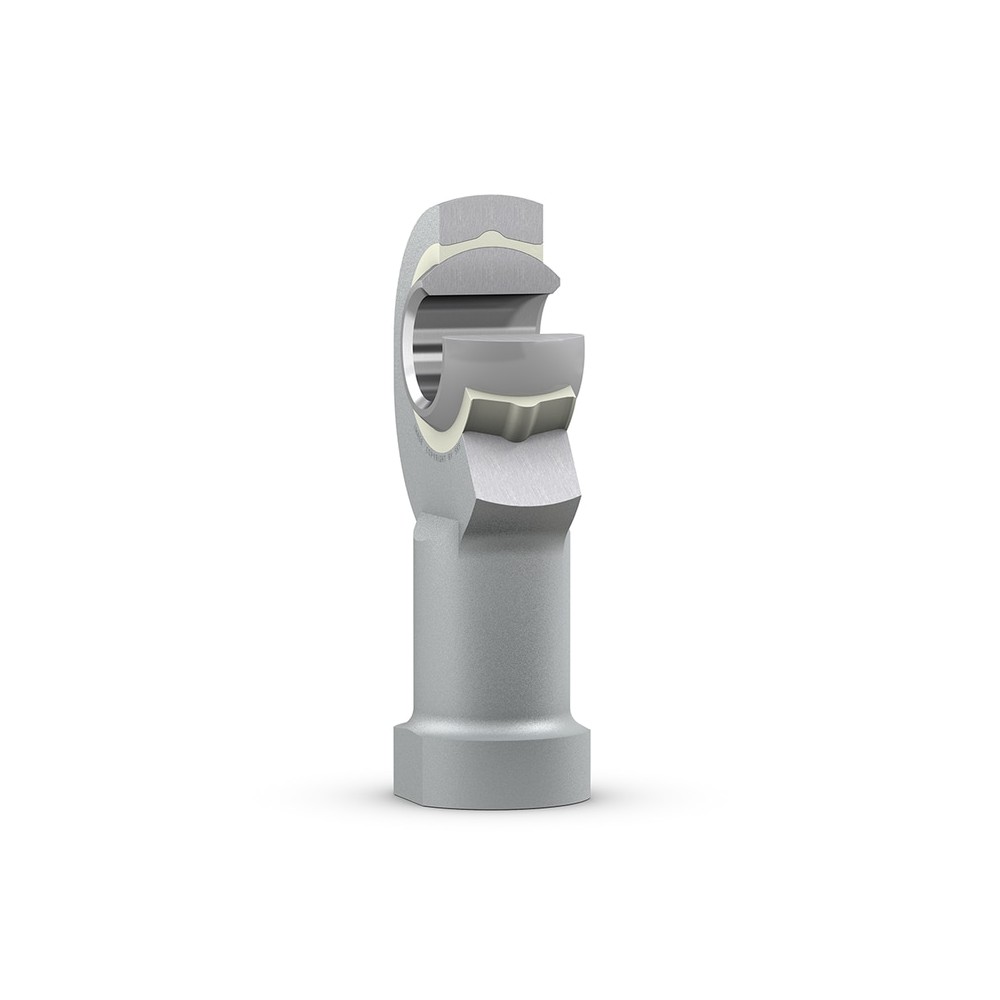

SKF SIKB 18 F Rod ends

SKF SIKB 18 F Rod ends

Product Code: SIKB 18 F
Part/No: Eshop019612
Brand: SKF
These SKF rod ends have an injection moulded sliding layer of PTFE FRP between the housing and the inner ring. This sliding contact surface combination is maintenance-free. The male thread is available with a left- (prefix SAL) or right-hand thread.
Long service life
Maintenance-free
Relatively insensitive to contaminants
Low coefficient of friction
Simple and ready-to-mount
€0.00
(*The price will be determined)
Tax included
Quantity

100% Shopping Security
  On Request
Dimensions
Performance
Basic dynamic load rating 26 kN
Basic static load rating 41.5 kN
Properties
Bore diameter bearing inner ring 18 mm
Centre height housing from end of shank 71 mm
Housing length total 96 mm
Outside diameter housing eye 47 mm
Thread designation M 18x1.5
Width bearing inner ring 23 mm
Width housing eye 17.5 mm
Sealing Without
Material housing Steel
Attachment feature rod end shank Righthand female thread
Sliding contact surface combination Steel/PTFE FRP
Material inner ring Bearing steel
Maintenance Maintenancefree
Logistics
Pack gross weight 320.8 g
eClass name Rod end (spherical plain bearing)
EAN 7316577003867
Product net weight 0.16 kg
