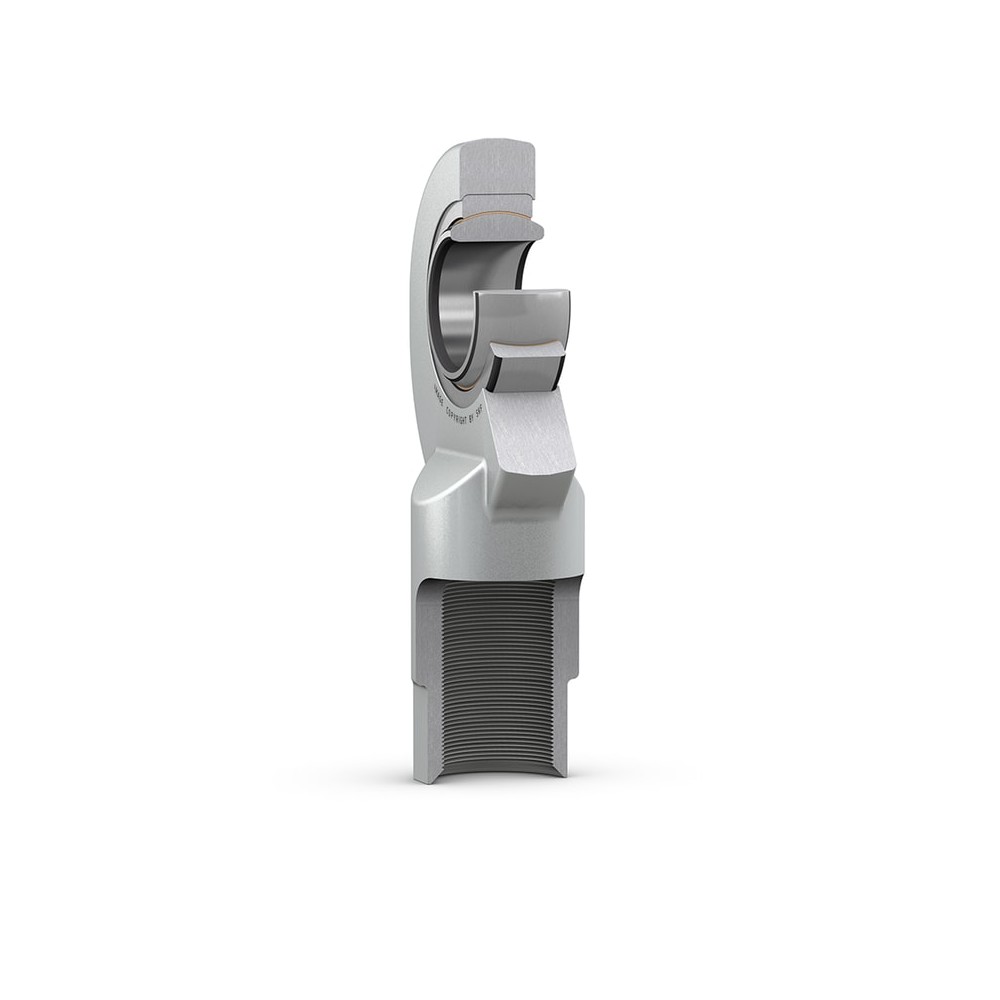

SKF SIL 17 C Rod ends

SKF SIL 17 C Rod ends

Product Code: SIL 17 C
Part/No: Eshop019624
Brand: SKF
These SKF rod ends contain a spherical plain bearing with a steel/PTFE sintered bronze contact surface combination. The bearing is maintenance-free. The female thread is available with a left- (prefix SIL) or right-hand thread.
Long service life
Maintenance-free
Suitable for heavy, constant direction loads
Low coefficient of friction
Simple and ready-to-mount
€187.38
Tax included
Quantity

100% Shopping Security
  On Request
Dimensions
Performance
Basic dynamic load rating 22.4 kN
Basic static load rating 46.5 kN
Properties
Bore diameter bearing inner ring 17 mm
Centre height housing from end of shank 67 mm
Housing length total 92 mm
Outside diameter housing eye 47 mm
Thread designation M 16
Width bearing inner ring 14 mm
Width housing eye 11.5 mm
Sealing Without
Material housing Steel
Attachment feature rod end shank Lefthand female thread
Sliding contact surface combination Steel/PTFE sintered bronze
Material inner ring Bearing steel
Material outer ring Deepdrawing steel
Maintenance Maintenancefree
Logistics
Pack gross weight 263.8 g
eClass name Rod end (spherical plain bearing)
EAN 7316571034553
Product net weight 0.102 kg
