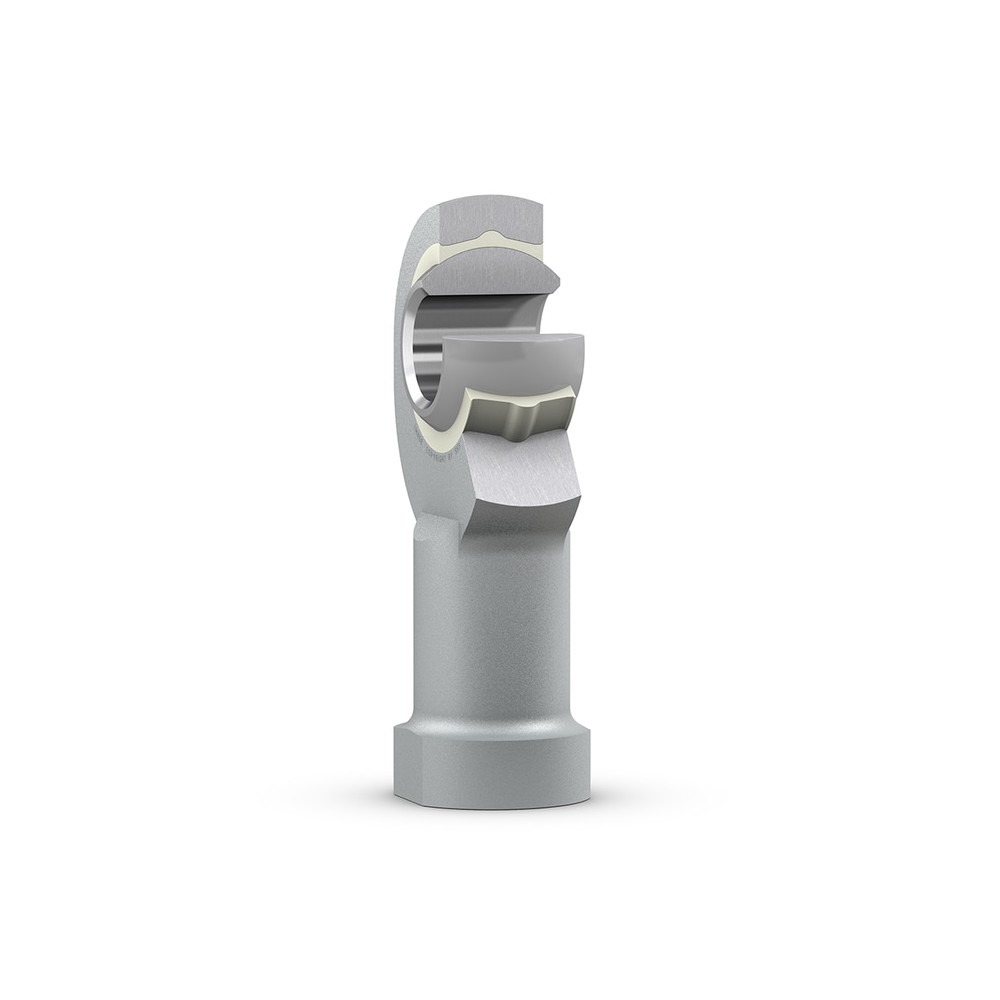

SKF SILKB 14 F Rod ends

SKF SILKB 14 F Rod ends

Product Code: SILKB 14 F
Part/No: Eshop019659
Brand: SKF
These SKF rod ends have an injection moulded sliding layer of PTFE FRP between the housing and the inner ring. This sliding contact surface combination is maintenance-free. The male thread is available with a left- (prefix SAL) or right-hand thread.
Long service life
Maintenance-free
Relatively insensitive to contaminants
Low coefficient of friction
Simple and ready-to-mount
€168.78
Tax included
Quantity

100% Shopping Security
  On Request
Dimensions
Performance
Basic dynamic load rating 17 kN
Basic static load rating 27.5 kN
Properties
Bore diameter bearing inner ring 14 mm
Centre height housing from end of shank 57 mm
Housing length total 77 mm
Outside diameter housing eye 37 mm
Thread designation M 14
Width bearing inner ring 19 mm
Width housing eye 14.5 mm
Sealing Without
Material housing Steel
Attachment feature rod end shank Lefthand female thread
Sliding contact surface combination Steel/PTFE FRP
Material inner ring Bearing steel
Maintenance Maintenancefree
Logistics
Pack gross weight 181.8 g
eClass name Rod end (spherical plain bearing)
EAN 7316577030276
Product net weight 0.043 kg
