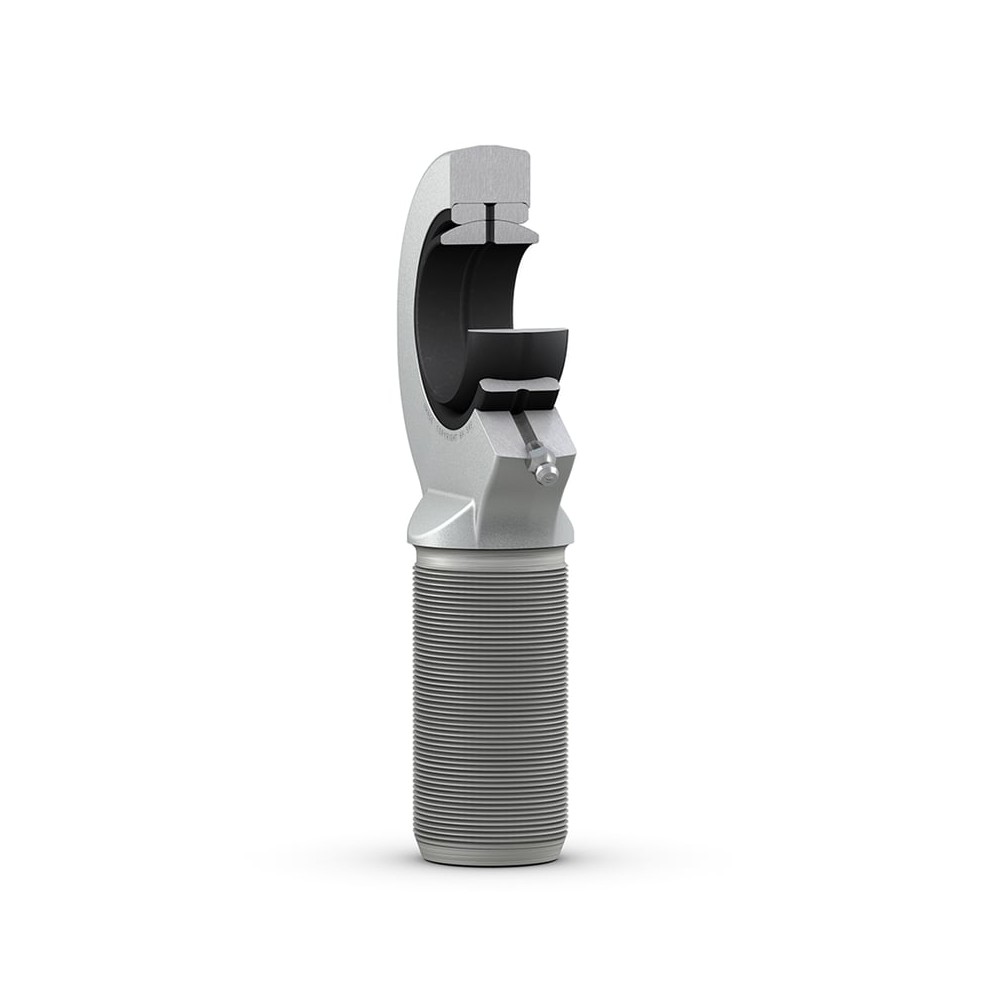

SKF SAL 25 ES Rod ends

SKF SAL 25 ES Rod ends

Product Code: SAL 25 ES
Part/No: Eshop019478
Brand: SKF
These SKF rod ends contain a spherical plain bearing with a steel/steel sliding contact surface combination. The bearing requires maintenance and can be relubricated via a grease fitting in the housing and via the shaft. The male thread is available with a left- (prefix SAL) or a right-hand thread. Some sizes have different fitting dimensions (SAA series).
Suitable for heavy static, alternating or impact loads
Simple and ready-to-mount
Easy to relubricate
€235.70
Tax included
Quantity

100% Shopping Security
  On Request
Dimensions
Performance
Basic dynamic load rating 48 kN
Basic static load rating 78 kN
Properties
Bore diameter bearing inner ring 25 mm
Centre height housing from end of shank 94 mm
Housing length total 128 mm
Outside diameter housing eye 65 mm
Thread designation M 24x2
Width bearing inner ring 20 mm
Width housing eye 18 mm
Sealing Without
Material housing Steel
Attachment feature rod end shank Lefthand male thread
Sliding contact surface combination Steel/steel, standard
Material inner ring Bearing steel
Material outer ring Bearing steel
Maintenance Relubrication required
Logistics
Pack gross weight 0.608 kg
eClass name Rod end (spherical plain bearing)
EAN 7316577049292
Product net weight 0.32 kg
