SKF SAL 60 ES-2RS Rod ends

SKF SAL 60 ES-2RS Rod ends

Product Code: SAL 60 ES-2RS
Part/No: Eshop019490
Brand: SKF
SKF rod ends consist of an eye-shaped head with an integral shank that forms a housing for a spherical plain bearing. These rod ends are used in applications such as hydraulic cylinders, steering links, tie rods, or anywhere a precision articulation joint is required. SKF provides both rod ends that require maintenance and rod ends that are maintenance-free.
Bearing housing combination for simple installation
Various designs for individual assemblies
Many sliding contact surface combinations
Available with female or male left- or right-hand thread or with a welding shank
€0.00
(*The price will be determined)
Tax included
Quantity

100% Shopping Security
  On Request

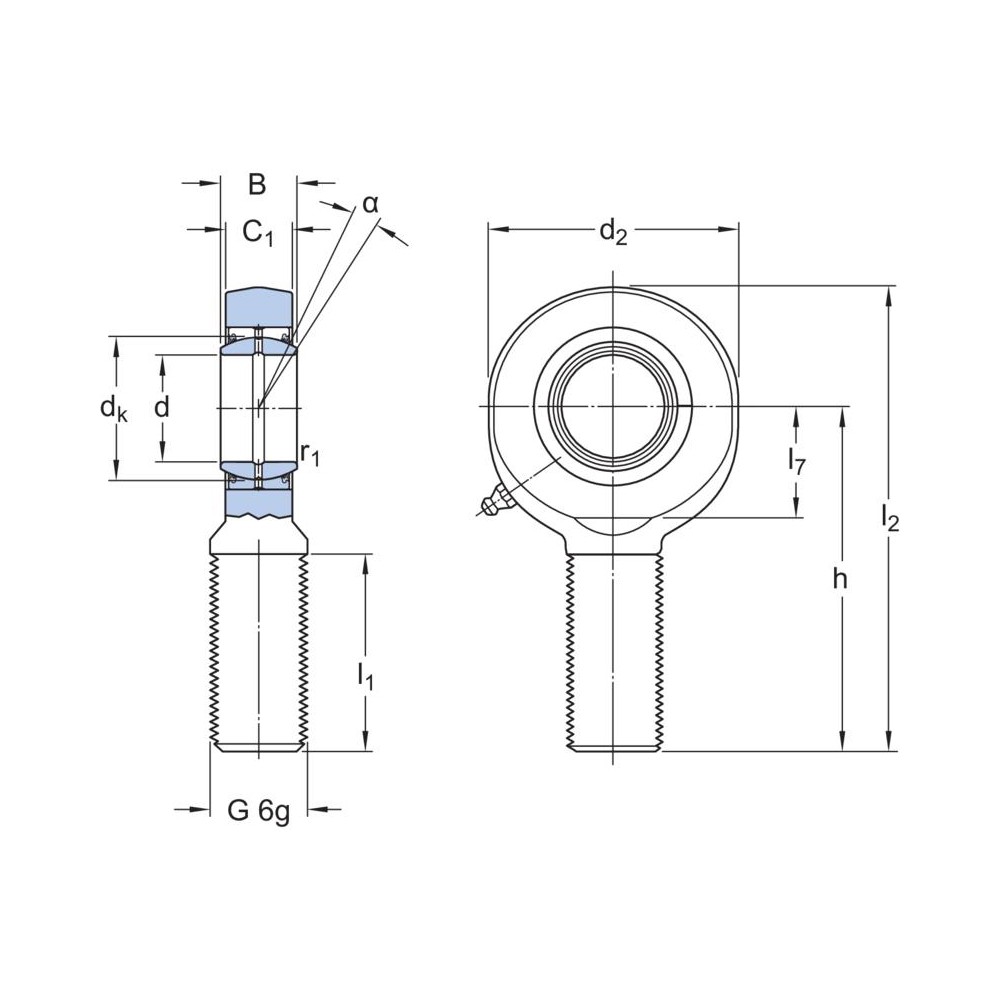

Dimensions
Performance
Basic dynamic load rating 245 kN
Basic static load rating 360 kN
Properties
Bore diameter bearing inner ring 60 mm
Centre height housing from end of shank 225 mm
Housing length total 296 mm
Outside diameter housing eye 137 mm
Thread designation M 60x4
Width bearing inner ring 44 mm
Width housing eye 39 mm
Sealing type Doublelip
Sealing Seal on both sides
Material housing Steel
Attachment feature rod end shank Lefthand male thread
Sliding contact surface combination Steel/steel, standard
Material inner ring Bearing steel
Material outer ring Bearing steel
Maintenance Relubrication required
Logistics
Pack gross weight 6810.8 g
eClass name Rod end (spherical plain bearing)
EAN 7316570803587
Product net weight 3.964 kg
