SKF SI 10 E Rod ends

SKF SI 10 E Rod ends

Product Code: SI 10 E
Part/No: Eshop019549
Brand: SKF
SKF rod ends consist of an eye-shaped head with an integral shank that forms a housing for a spherical plain bearing. These rod ends are used in applications such as hydraulic cylinders, steering links, tie rods, or anywhere a precision articulation joint is required. SKF provides both rod ends that require maintenance and rod ends that are maintenance-free.
Bearing housing combination for simple installation
Various designs for individual assemblies
Many sliding contact surface combinations
Available with female or male left- or right-hand thread or with a welding shank
€101.51
Tax included
Quantity

100% Shopping Security
  On Request

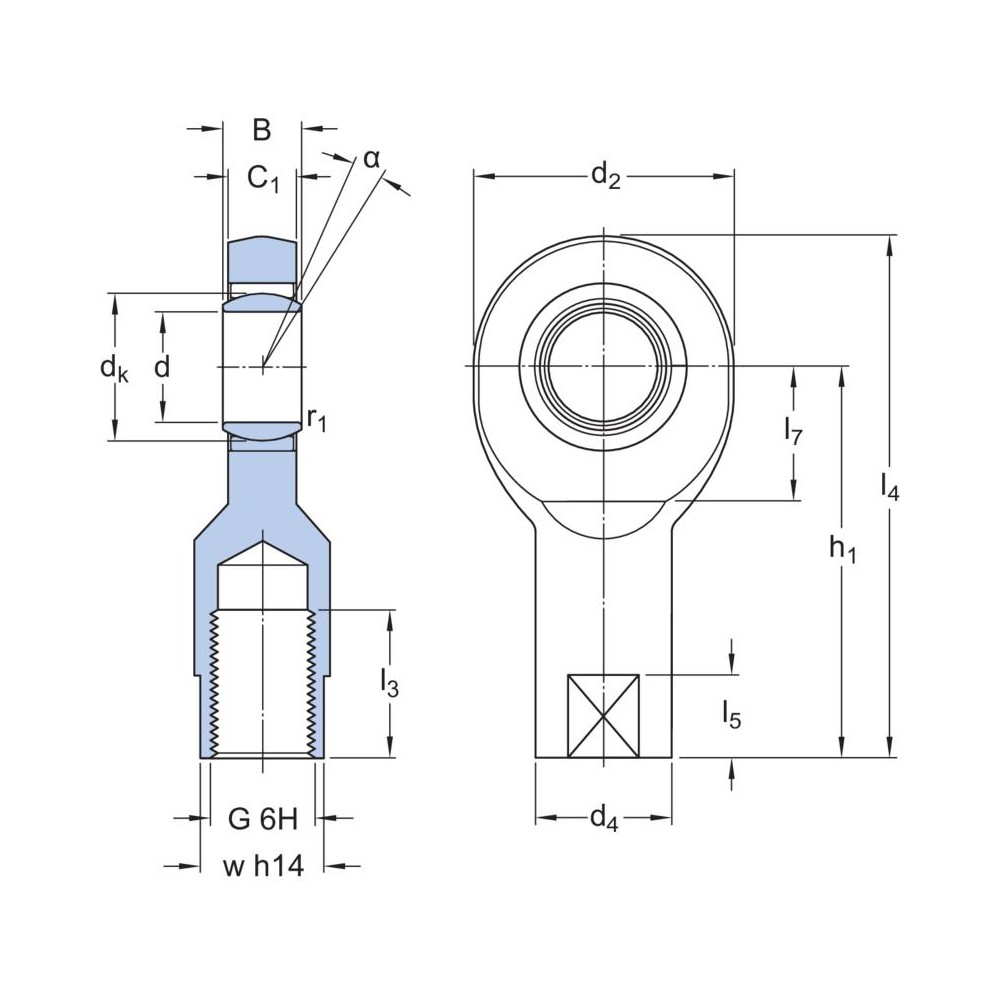

Dimensions
Performance
Basic dynamic load rating 8.15 kN
Basic static load rating 19 kN
Properties
Bore diameter bearing inner ring 10 mm
Centre height housing from end of shank 43 mm
Housing length total 60 mm
Outside diameter housing eye 30 mm
Thread designation M 10
Width bearing inner ring 9 mm
Width housing eye 7.5 mm
Sealing Without
Material housing Steel
Attachment feature rod end shank Righthand female thread
Sliding contact surface combination Steel/steel, standard
Material inner ring Bearing steel
Material outer ring Bearing steel
Maintenance Relubrication required
Logistics
Pack gross weight 73.9 g
eClass name Rod end (spherical plain bearing)
EAN 7316577002853
Product net weight 0.007 kg
