SKF SIA 45 ES-2RS Rod ends

SKF SIA 45 ES-2RS Rod ends

Product Code: SIA 45 ES-2RS
Part/No: Eshop019582
Brand: SKF

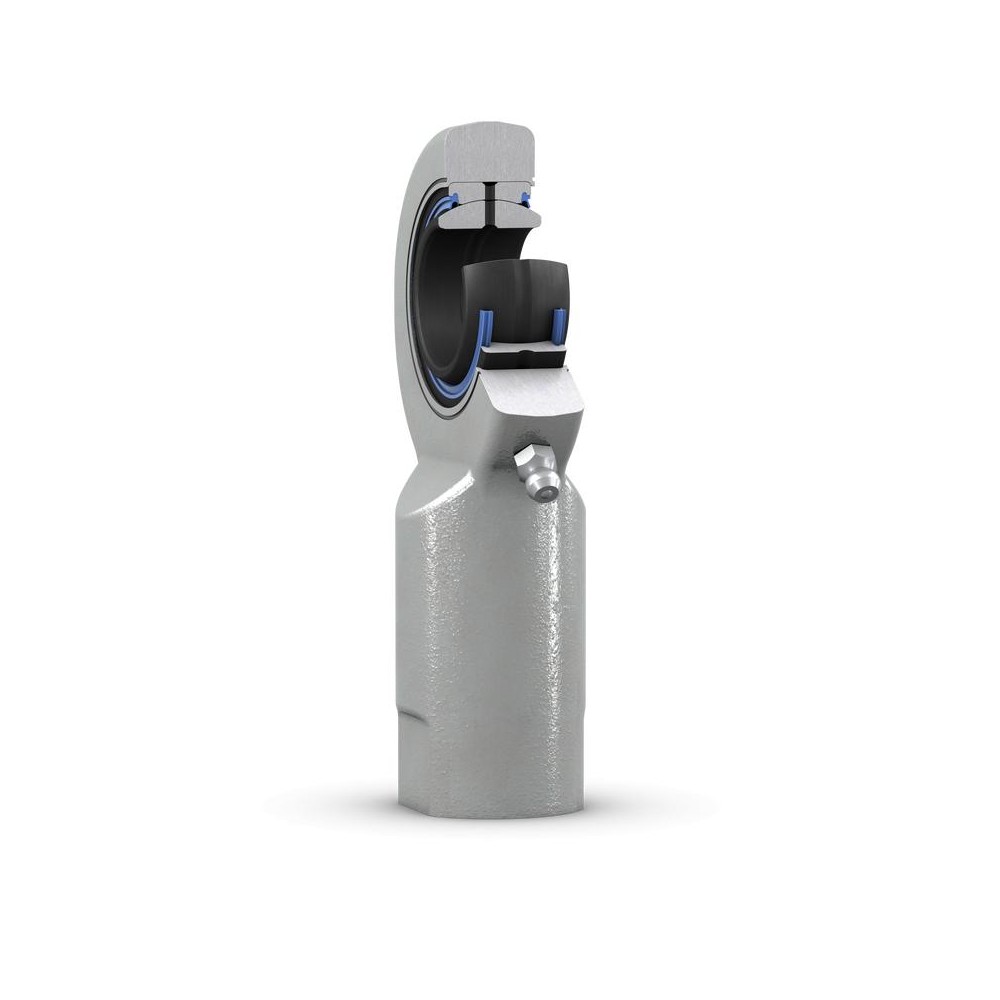

These SKF rod ends contain a spherical plain bearing with a steel/steel sliding contact surface combination and a double-lip contact seal on both sides. The bearing requires maintenance and can be relubricated via a grease fitting in the housing and via the shaft. The female thread is available with a left- (prefix SIL) or right-hand thread. Some sizes have different fitting dimensions (SIA series).
Long service life
Minimal maintenance
Easy to relubricate
Suitable for heavy static, alternating or impact loads
Simple and ready-to-mount
€0.00
(*The price will be determined)
Tax included
Quantity

100% Shopping Security
  On Request
Dimensions
Performance
Basic dynamic load rating 127 kN
Basic static load rating 224 kN
Properties
Bore diameter bearing inner ring 45 mm
Centre height housing from end of shank 145 mm
Housing length total 199 mm
Outside diameter housing eye 104 mm
Thread designation M 42x3
Width bearing inner ring 32 mm
Width housing eye 28 mm
Sealing type Doublelip
Sealing Seal on both sides
Material housing Steel
Attachment feature rod end shank Righthand female thread
Sliding contact surface combination Steel/steel, standard
Material inner ring Bearing steel
Material outer ring Bearing steel
Maintenance Relubrication required
Logistics
Pack gross weight 2.945 kg
eClass name Rod end (spherical plain bearing)
EAN 7316577300294
Product net weight 16.58 kg
