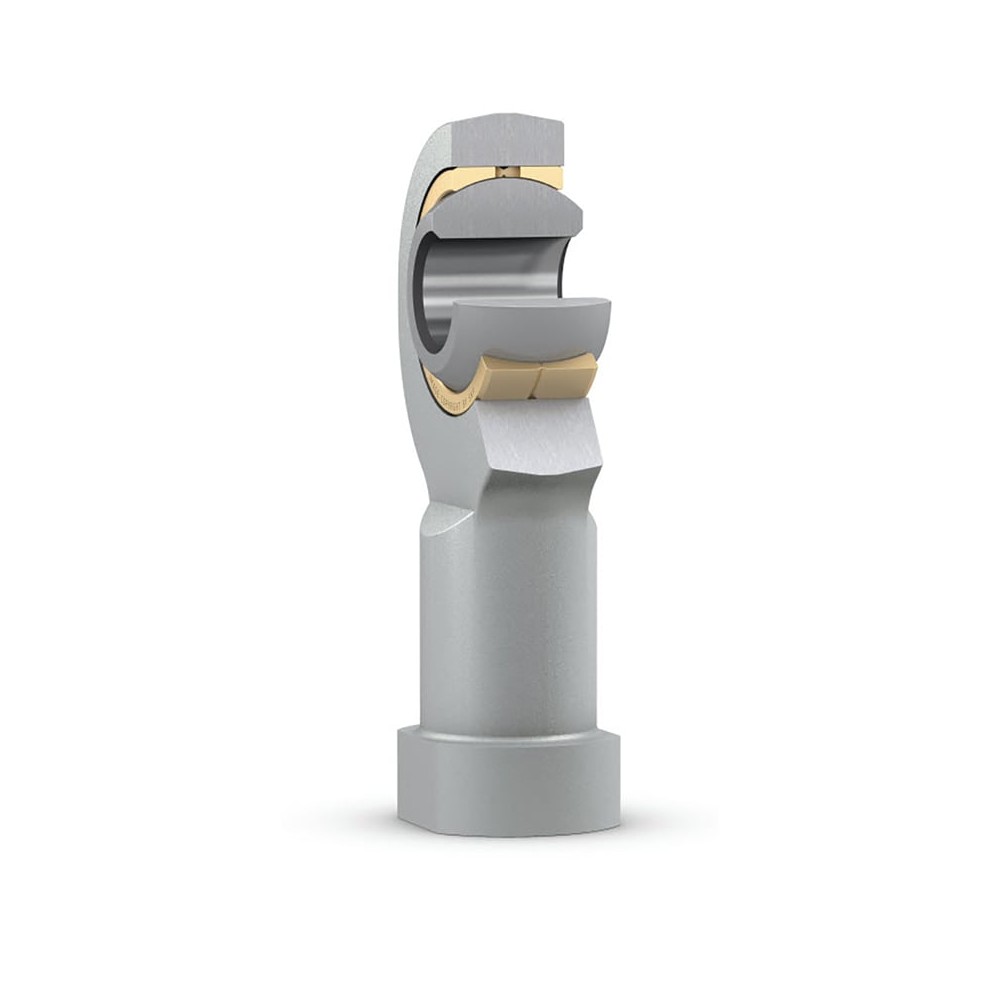

SKF SIKAC 10 M/VZ019 Rod ends

SKF SIKAC 10 M/VZ019 Rod ends

Product Code: SIKAC 10 M/VZ019
Part/No: Eshop019590
Brand: SKF
These SKF rod ends contain a spherical plain bearing with a steel/bronze sliding contact surface combination. The bearing requires maintenance, sizes 6 and larger can be relubricated via a grease fitting in the housing and via the shank. The female thread is available with a left- (prefix SIL) or right-hand thread.
Suitable where lubricant starvation might occur
Simple and ready-to-mount
Easy to relubricate (sizes ≥ 6)
€85.62
Tax included
Quantity

100% Shopping Security
  On Request
Dimensions
Performance
Basic dynamic load rating 10 kN
Basic static load rating 12.2 kN
Properties
Bore diameter bearing inner ring 10 mm
Centre height housing from end of shank 43 mm
Housing length total 58 mm
Outside diameter housing eye 29 mm
Thread designation M 10x1.25
Width bearing inner ring 14 mm
Width housing eye 11.5 mm
Sealing Without
Material housing Steel
Attachment feature rod end shank Righthand female thread
Sliding contact surface combination Steel/bronze
Material inner ring Bearing steel
Maintenance Relubrication required
Logistics
Pack gross weight 0.083 kg
eClass name Rod end (spherical plain bearing)
EAN 7316570857719
Product net weight 1158.4 g
