SKF SIKAC 16 M Rod ends

SKF SIKAC 16 M Rod ends

Product Code: SIKAC 16 M
Part/No: Eshop019594
Brand: SKF

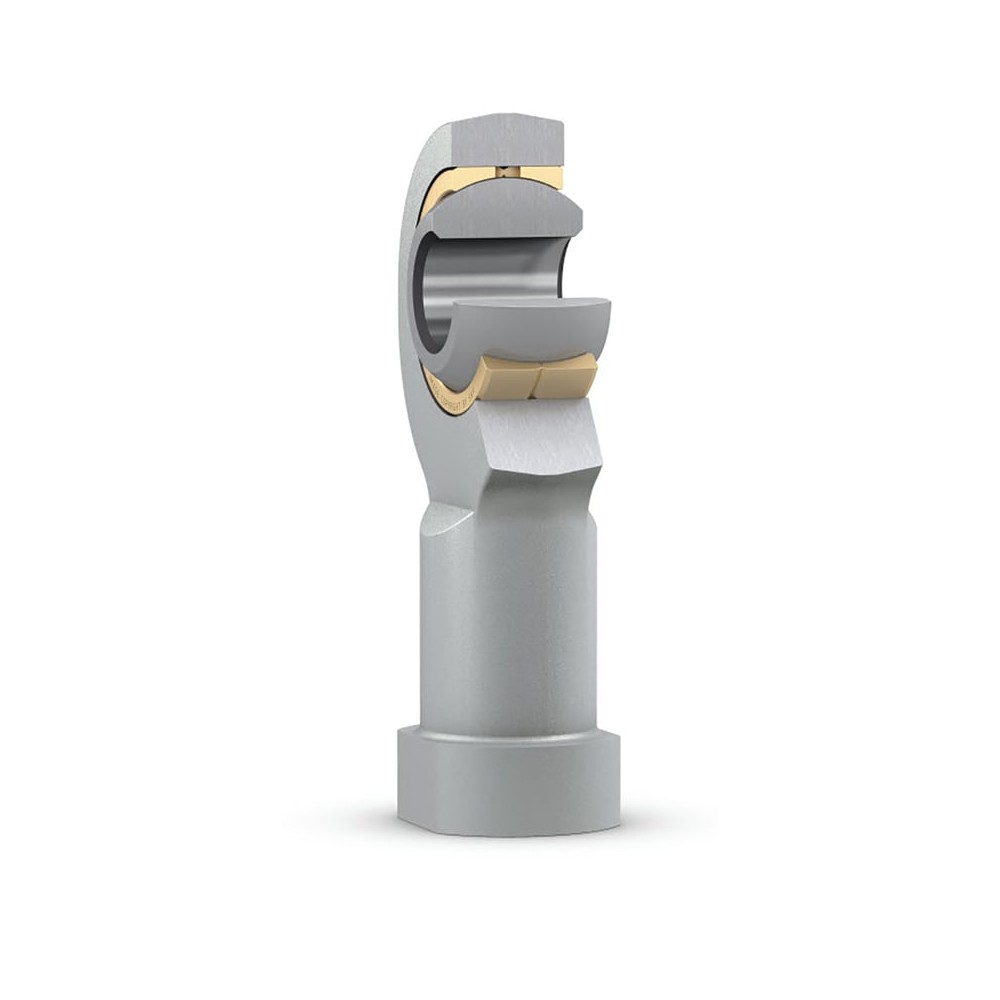

These SKF rod ends contain a spherical plain bearing with a steel/bronze sliding contact surface combination. The bearing requires maintenance, sizes 6 and larger can be relubricated via a grease fitting in the housing and via the shank. The female thread is available with a left- (prefix SIL) or right-hand thread.
Suitable where lubricant starvation might occur
Simple and ready-to-mount
Easy to relubricate (sizes ≥ 6)
€201.00
Tax included
Quantity

100% Shopping Security
  On Request
Dimensions
Performance
Basic dynamic load rating 21.6 kN
Basic static load rating 29 kN
Properties
Bore diameter bearing inner ring 16 mm
Centre height housing from end of shank 64 mm
Housing length total 86 mm
Outside diameter housing eye 43 mm
Thread designation M 16
Width bearing inner ring 21 mm
Width housing eye 15.5 mm
Sealing Without
Material housing Steel
Attachment feature rod end shank Righthand female thread
Sliding contact surface combination Steel/bronze
Material inner ring Bearing steel
Maintenance Relubrication required
Logistics
Pack gross weight 248 g
eClass name Rod end (spherical plain bearing)
EAN 7316577025623
Product net weight 117.7 g
