SKF SIKAC 30 M/VZ019 Rod ends

SKF SIKAC 30 M/VZ019 Rod ends

Product Code: SIKAC 30 M/VZ019
Part/No: Eshop019601
Brand: SKF

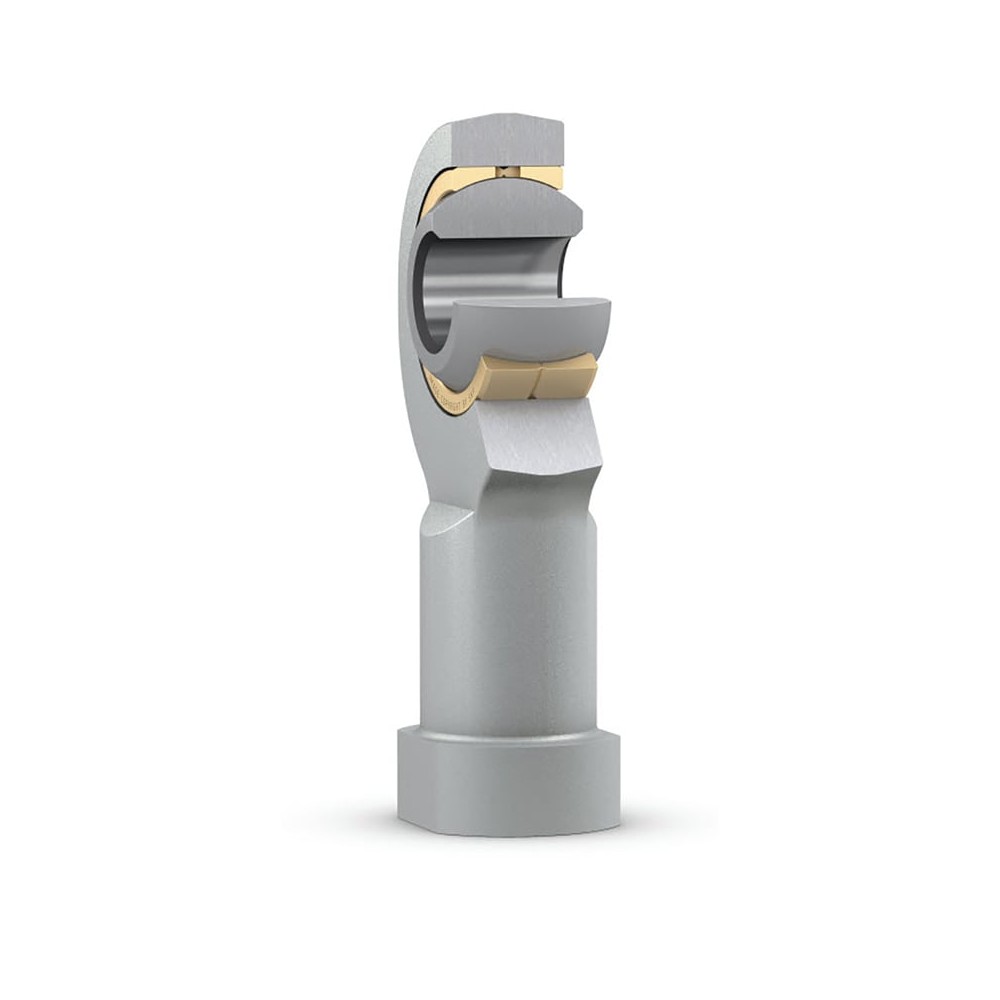

These SKF rod ends contain a spherical plain bearing with a steel/bronze sliding contact surface combination. The bearing requires maintenance, sizes 6 and larger can be relubricated via a grease fitting in the housing and via the shank. The female thread is available with a left- (prefix SIL) or right-hand thread.
Suitable where lubricant starvation might occur
Simple and ready-to-mount
Easy to relubricate (sizes ≥ 6)
€496.77
Tax included
Quantity

100% Shopping Security
  Shipped within 24 hours
Dimensions
Performance
Basic dynamic load rating 64 kN
Basic static load rating 69.5 kN
Properties
Bore diameter bearing inner ring 30 mm
Centre height housing from end of shank 110 mm
Housing length total 146 mm
Outside diameter housing eye 71 mm
Thread designation M 27x2
Width bearing inner ring 37 mm
Width housing eye 27 mm
Sealing Without
Material housing Steel
Attachment feature rod end shank Righthand female thread
Sliding contact surface combination Steel/bronze
Material inner ring Bearing steel
Maintenance Relubrication required
Logistics
Pack gross weight 1256.8 g
eClass name Rod end (spherical plain bearing)
EAN 7316570972795
Product net weight 527.8 g
