SKF SIKAC 8 M Rod ends

SKF SIKAC 8 M Rod ends

Product Code: SIKAC 8 M
Part/No: Eshop019604
Brand: SKF

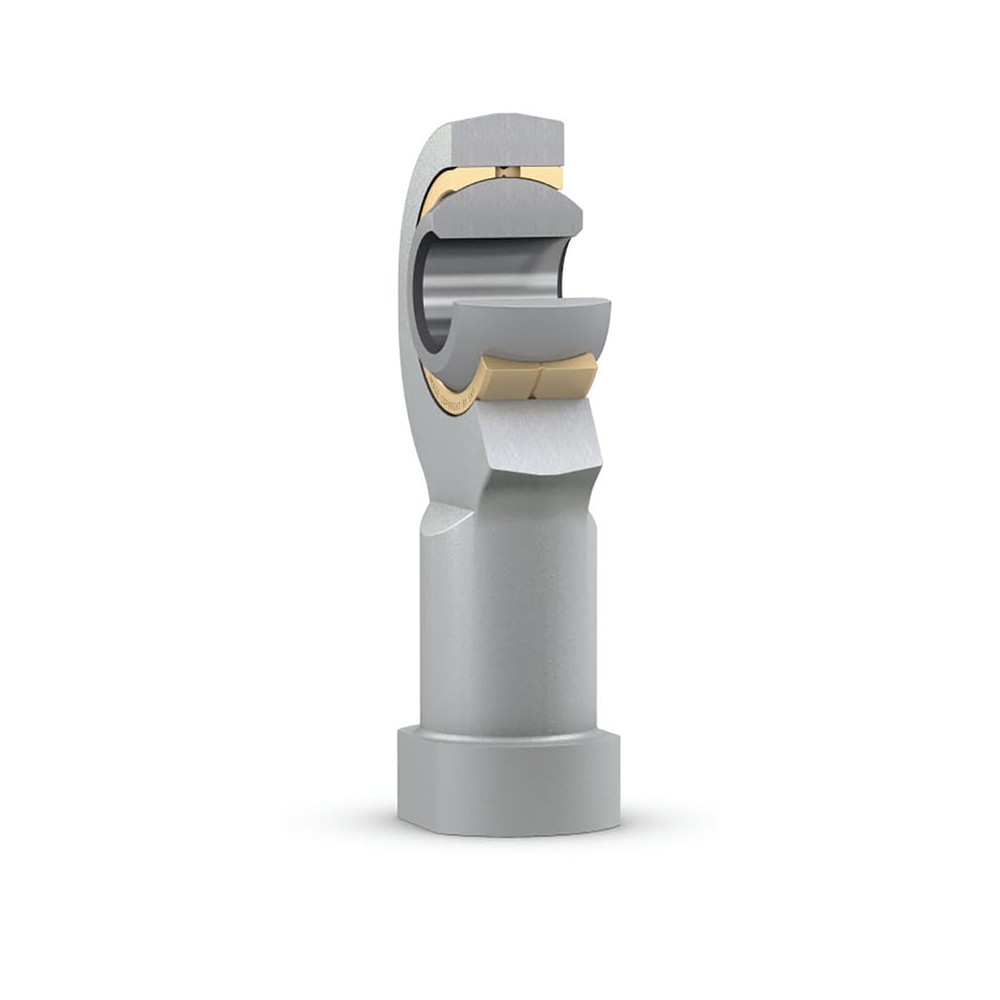

These SKF rod ends contain a spherical plain bearing with a steel/bronze sliding contact surface combination. The bearing requires maintenance, sizes 6 and larger can be relubricated via a grease fitting in the housing and via the shank. The female thread is available with a left- (prefix SIL) or right-hand thread.
Suitable where lubricant starvation might occur
Simple and ready-to-mount
Easy to relubricate (sizes ≥ 6)
€71.67
Tax included
Quantity

100% Shopping Security
  Shipped within 24 hours
Dimensions
Performance
Basic dynamic load rating 7.2 kN
Basic static load rating 9.15 kN
Properties
Bore diameter bearing inner ring 8 mm
Centre height housing from end of shank 36 mm
Housing length total 49 mm
Outside diameter housing eye 25 mm
Thread designation M 8
Width bearing inner ring 12 mm
Width housing eye 9.5 mm
Sealing Without
Material housing Steel
Attachment feature rod end shank Righthand female thread
Sliding contact surface combination Steel/bronze
Material inner ring Bearing steel
Maintenance Relubrication required
Logistics
Pack gross weight 53.6 g
eClass name Rod end (spherical plain bearing)
EAN 7316577027092
Product net weight 1220.8 g
