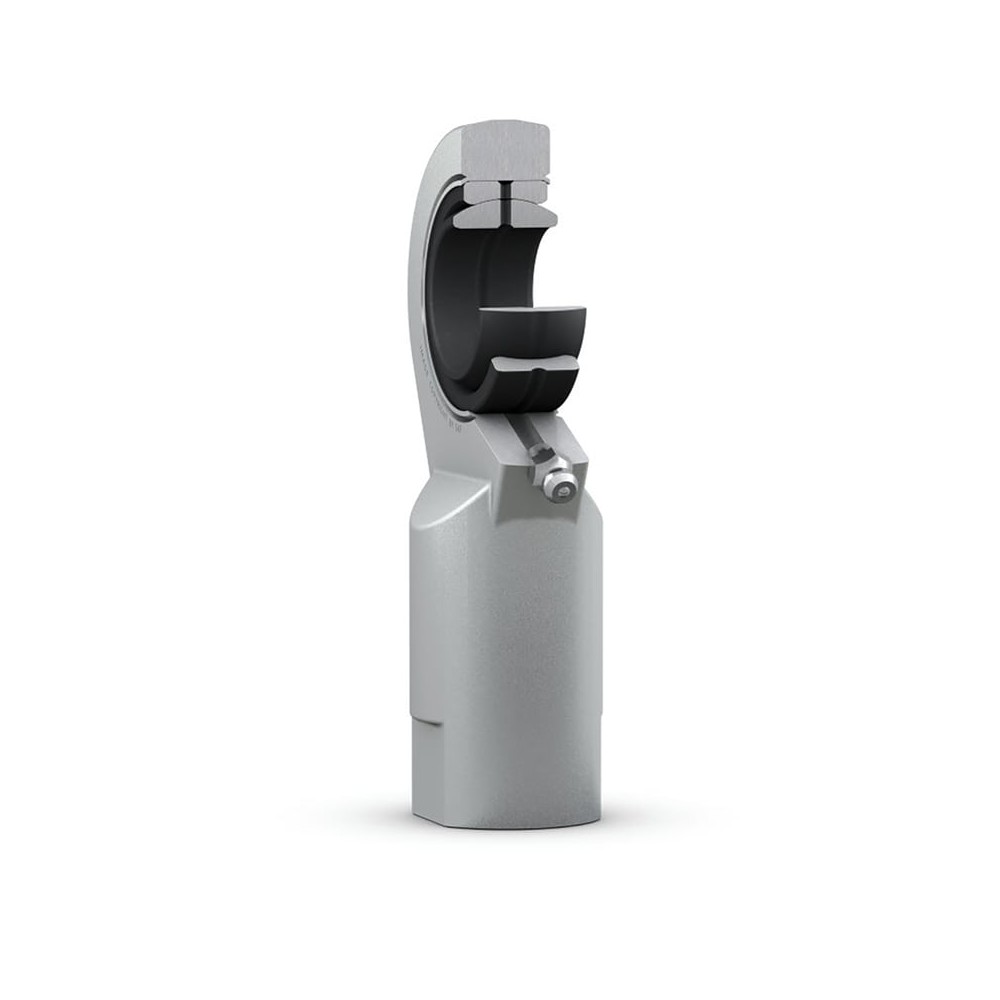

SKF SIL 17 ES Rod ends

SKF SIL 17 ES Rod ends

Product Code: SIL 17 ES
Part/No: Eshop019625
Brand: SKF
These SKF rod ends contain a spherical plain bearing with a steel/steel sliding contact surface combination. The bearing requires maintenance and can be relubricated via a lubrication hole in the housing and via the shaft. The female thread is available with a left- (prefix SIL) or right-hand thread.
Suitable for heavy static, alternating or impact loads
Simple and ready-to-mount
Easy to relubricate
€158.48
Tax included
Quantity

100% Shopping Security
  On Request
Dimensions
Performance
Basic dynamic load rating 21.2 kN
Basic static load rating 44 kN
Properties
Bore diameter bearing inner ring 17 mm
Centre height housing from end of shank 67 mm
Housing length total 92 mm
Outside diameter housing eye 47 mm
Thread designation M 16
Width bearing inner ring 14 mm
Width housing eye 11.5 mm
Sealing Without
Material housing Steel
Attachment feature rod end shank Lefthand female thread
Sliding contact surface combination Steel/steel, standard
Material inner ring Bearing steel
Material outer ring Bearing steel
Maintenance Relubrication required
Logistics
Pack gross weight 263.5 g
eClass name Rod end (spherical plain bearing)
EAN 7316577003584
Product net weight 0.176 kg
