SKF SIL 8 E Rod ends

SKF SIL 8 E Rod ends

Product Code: SIL 8 E
Part/No: Eshop019641
Brand: SKF

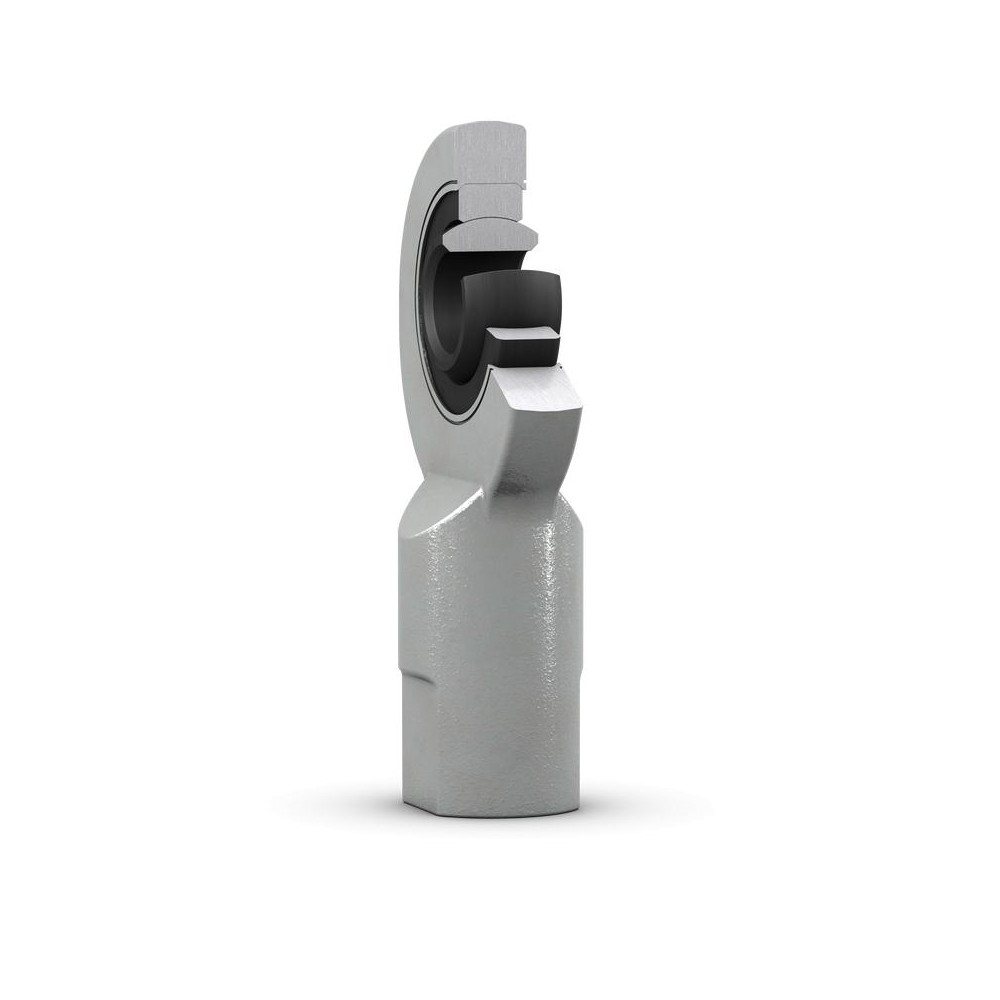

These SKF rod ends contain a spherical plain bearing with a steel/steel sliding contact surface combination. The bearing requires maintenance and can only be relubricated from the side. The female thread is available with a left- (prefix SIL) or right-hand thread.
Suitable for heavy static, alternating or impact loads
Simple and ready-to-mount
€114.55
Tax included
Quantity

100% Shopping Security
  On Request
Dimensions
Performance
Basic dynamic load rating 5.5 kN
Basic static load rating 12.9 kN
Properties
Bore diameter bearing inner ring 8 mm
Centre height housing from end of shank 36 mm
Housing length total 50 mm
Outside diameter housing eye 25 mm
Thread designation M 8
Width bearing inner ring 8 mm
Width housing eye 6.5 mm
Sealing Without
Material housing Steel
Attachment feature rod end shank Lefthand female thread
Sliding contact surface combination Steel/steel, standard
Material inner ring Bearing steel
Material outer ring Bearing steel
Maintenance Relubrication required
Logistics
Pack gross weight 40.1 g
eClass name Rod end (spherical plain bearing)
EAN 7316577003522
Product net weight 0.023 kg
