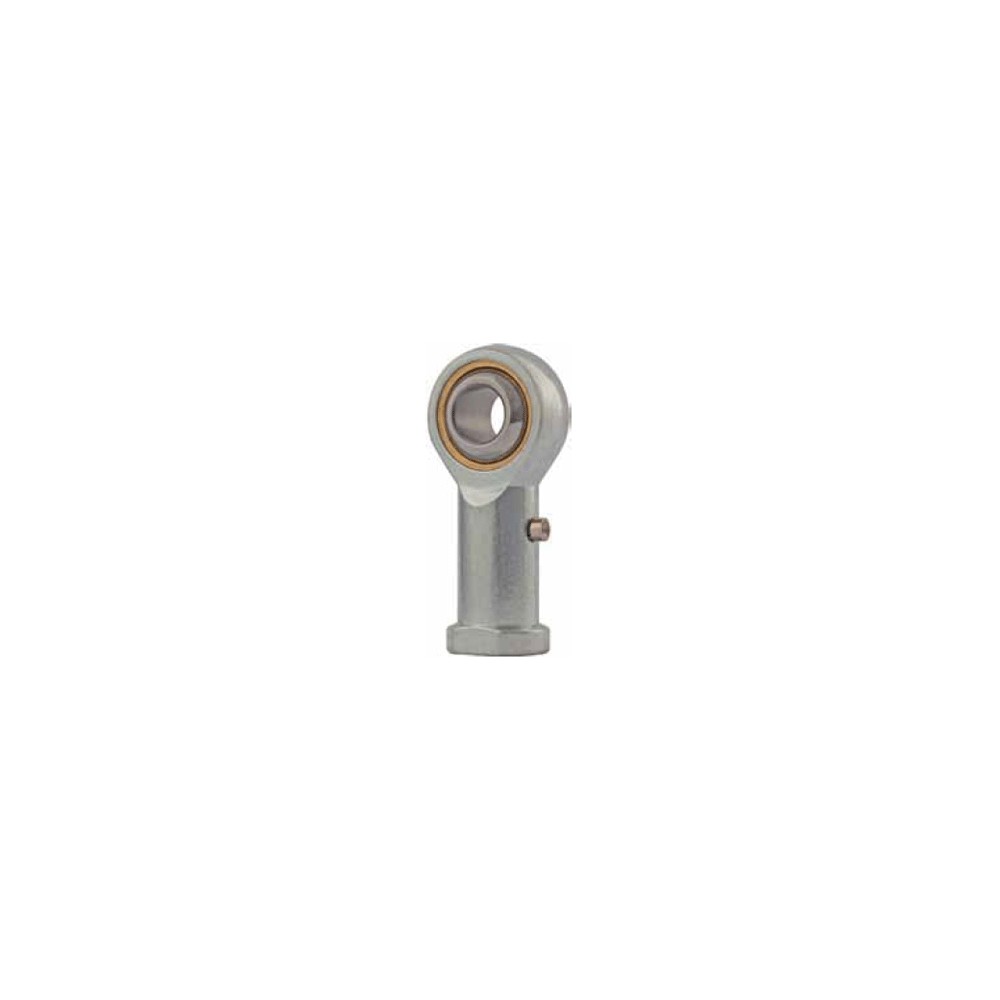

DURBAL DPHS 08 Rod ends, maintenance required

DURBAL DPHS 08 Rod ends, maintenance required

Product Code: DPHS 08
Part/No: 031144
Brand: DURBAL
Rod ends with pressed spherical-plain bearing, series K, female right hand thread, according to DIN ISO 12240-4 & 8139, maintenance required - DURBAL
Product Download
Product Catalogue
€6.86
Tax included
Quantity

100% Shopping Security
  Shipped within 24 hours
Dimensions
Bore diameter 8 mm
Housing length total 47 mm
Diameter Head 22 mm
Thread G M8
Properties
Material Zinc plated
Sliding pair/Maintenance Maintenance required
Thread type Female thread, with right hand
Logistics
Product net weight 0.047 kg
Country of origin People's Republic of China
Tariff Code 84833080

Related Products

4 other products in the same category:

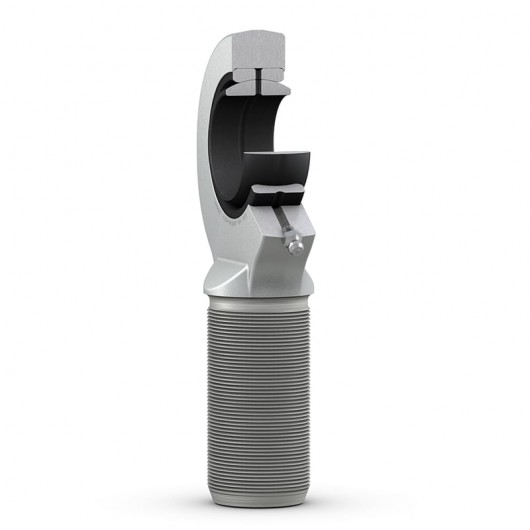

SKF SAL 30 ES Rod ends
