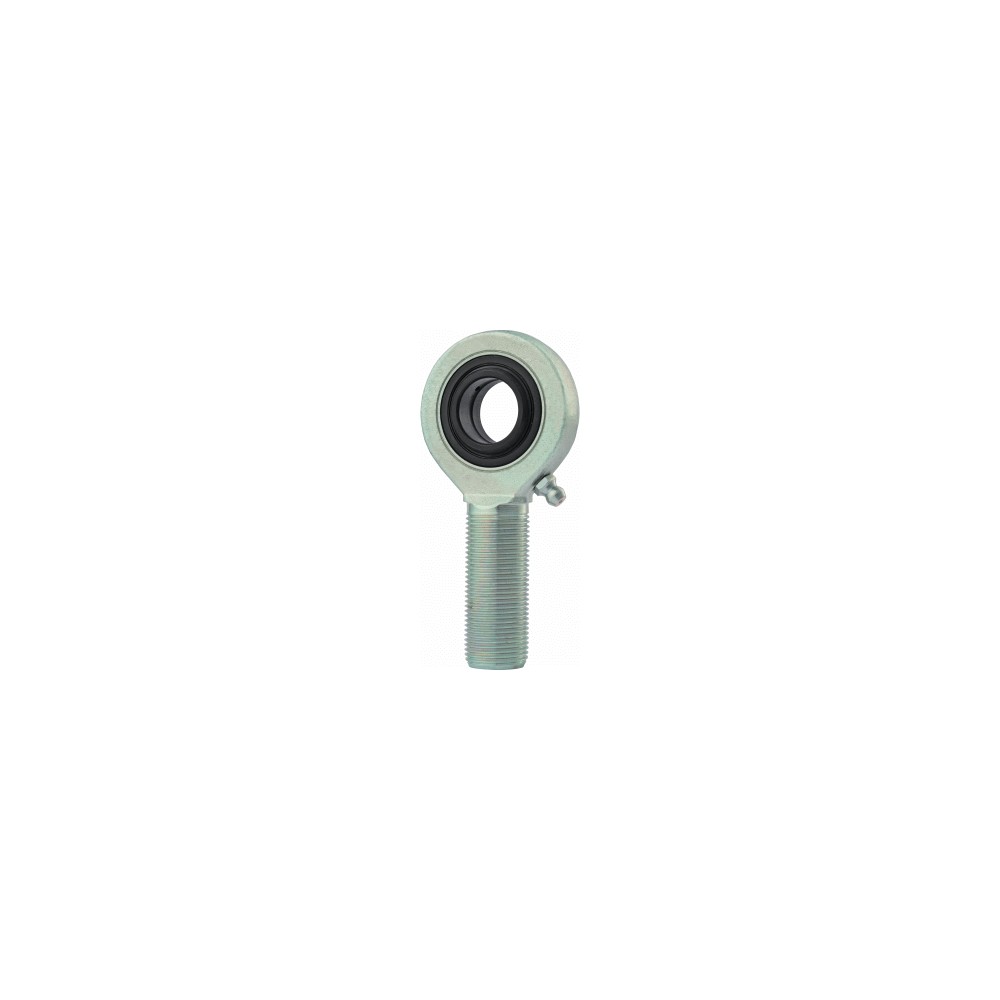

DURBAL EMN 25-30-501 Rod ends, maintenance required

DURBAL EMN 25-30-501 Rod ends, maintenance required

Product Code: EMN 25-30-501
Part/No: Eshop022042
Brand: DURBAL
Rod ends with pressed spherical-plain bearing, with -2RS lip seals on both sides, male right hand thread, series E/EH, DIN ISO 12240-4, maintenance required - DURBAL
Product Download
Product Catalogue
€58.22
Tax included
Quantity

100% Shopping Security
  On Request
Dimensions
Bore diameter 25 mm
Housing length total 125 mm
Diameter Head 62 mm
Thread G M24x2
Properties
Material Zinc plated
Sliding pair/Maintenance Maintenance required
Thread type Male thread, with right hand
Logistics
Product net weight 0.56 kg
Country of origin Federal Republic of Germany
Tariff Code 84833080

Related Products

4 other products in the same category:

SKF SIL 12 E Rod ends
DURBAL

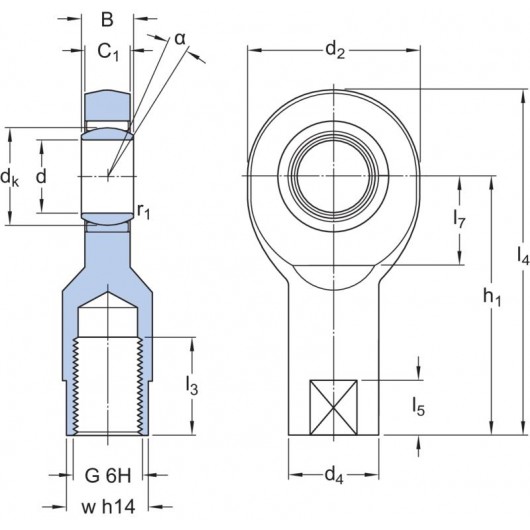

SKF SIL 12 E Rod ends
