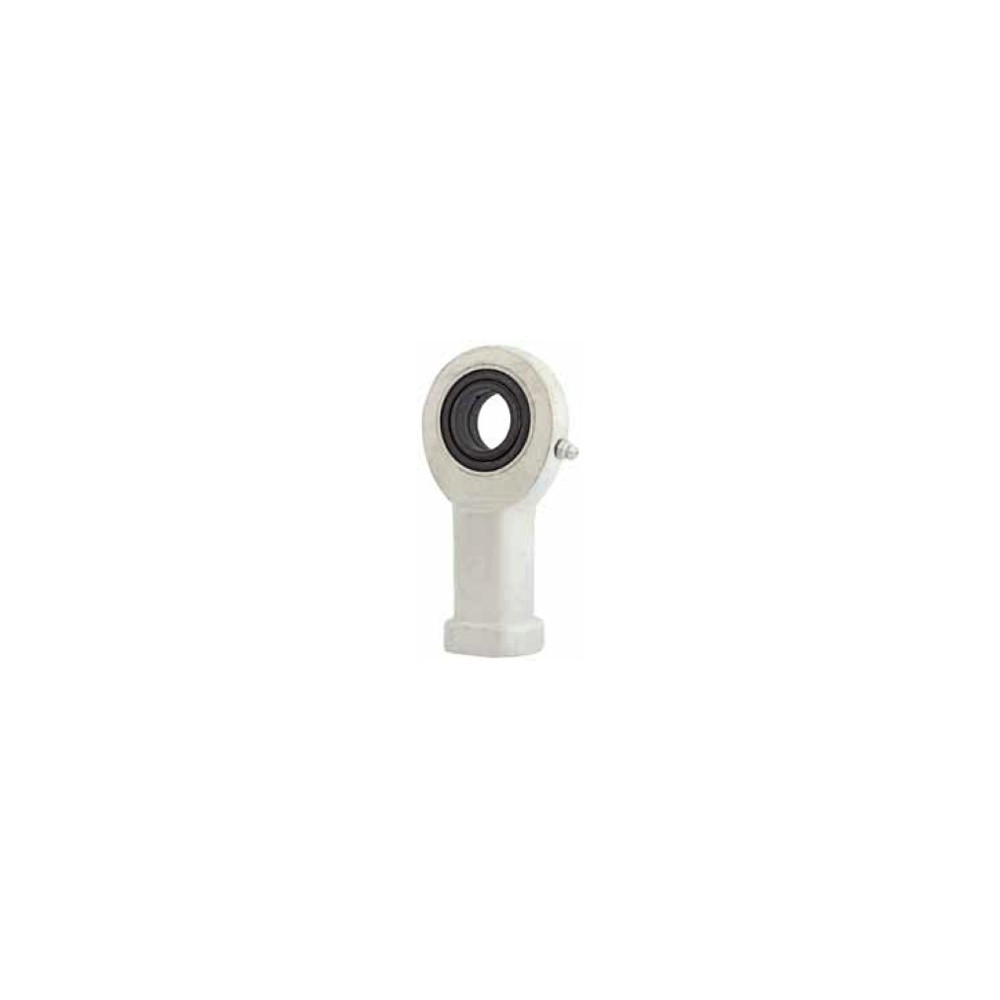

DURBAL DSI 40 ES Rod ends, maintenance required

DURBAL DSI 40 ES Rod ends, maintenance required

Product Code: DSI 40 ES
Part/No: Eshop022352
Brand: DURBAL
Rod ends with pressed spherical-plain bearing, female right hand thread, series E, according to DIN ISO 12240-4, maintenance required - DURBAL
Product Download
Product Catalogue
€59.28
Tax included
Quantity

100% Shopping Security
  On Request
Dimensions
Bore diameter 40 mm
Housing length total 188 mm
Diameter Head 92 mm
Thread G M39x3
Properties
Material Zinc plated
Sliding pair/Maintenance Maintenance required
Thread type Female thread, with right hand
Logistics
Product net weight 2 kg
Country of origin People's Republic of China
Tariff Code 84833080

Related Products

4 other products in the same category:

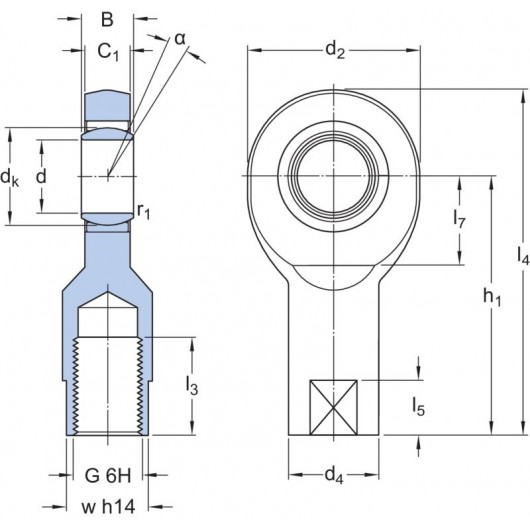

SKF SI 10 E Rod ends
DURBAL

SKF SI 10 E Rod ends

Bore diameter 10 mm
Centre height housing from end of shank 43 mm
Housing length total 60 mm
Width bearing inner ring 9 mm
Width housing eye 7.5 mm
Diameter Head 30 mm
Thread G M10
Reference: SI 10 E
Price €36.95
*Prices with vat
  On Request

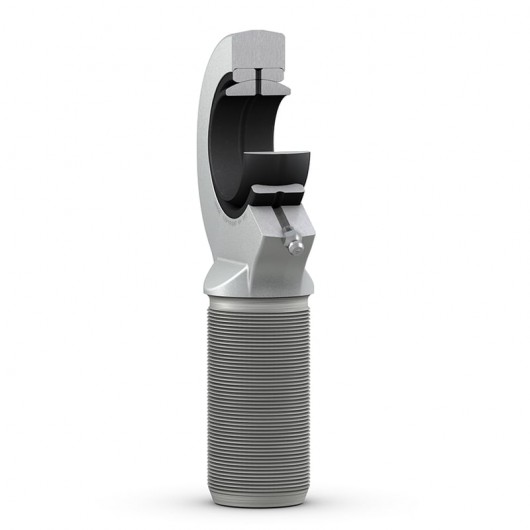

SKF SA 15 ES Rod ends
DURBAL

SKF SA 15 ES Rod ends

Bore diameter 15 mm
Centre height housing from end of shank 63 mm
Housing length total 85 mm
Width bearing inner ring 12 mm
Width housing eye 10.5 mm
Diameter Head 41 mm
Thread G M14
Reference: SA 15 ES
Price €48.34
*Prices with vat
  On Request
