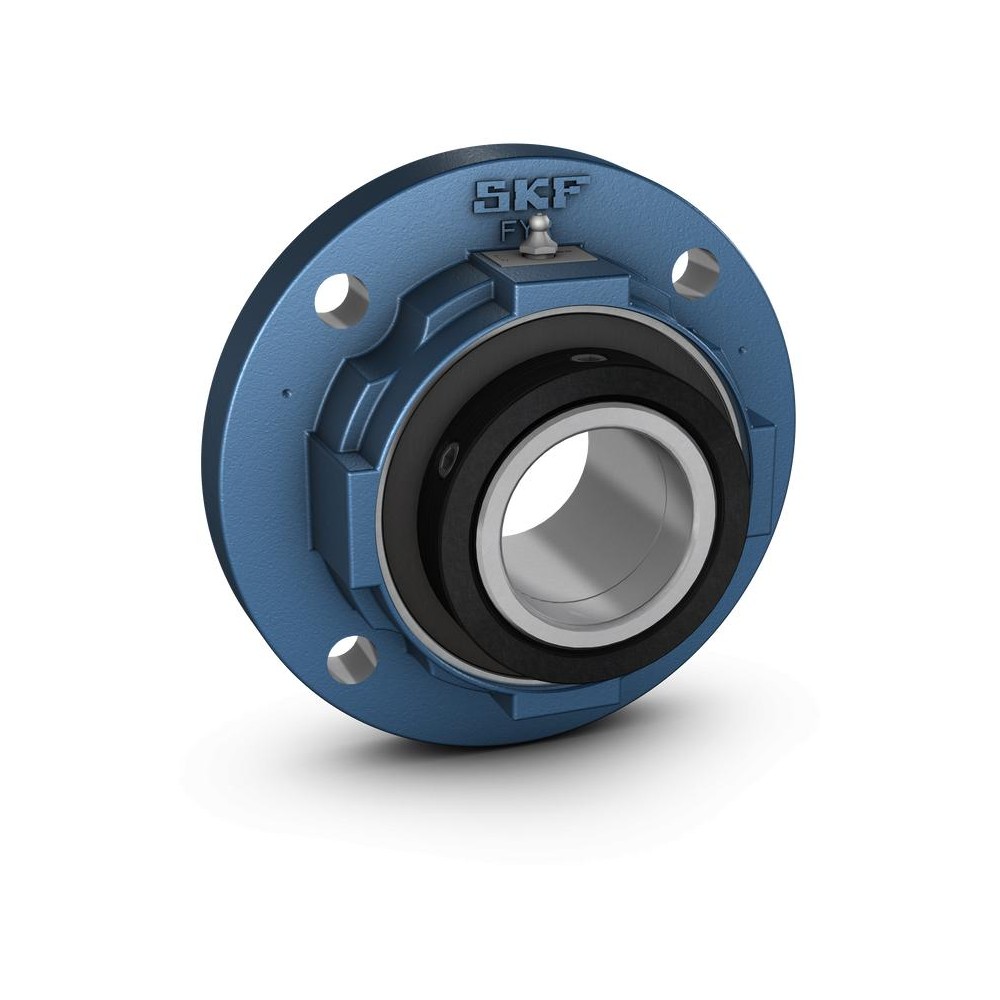

SKF F4BR 215-SRB-SRE Roller bearing units

SKF F4BR 215-SRB-SRE Roller bearing units

Product Code: F4BR 215-SRB-SRE
Part/No: Eshop010938
Brand: SKF
Four-bolt round flange roller bearing units consist of a spherical roller bearing mounted in a cast iron housing that can support rotating shafts through walls, bulkheads or other flat surfaces. The units are shaft-ready, pre-assembled and pre-greased, for installation right out of the box. Locating and non-locating variants can be specified while the standard set screw mounting accommodates rotation in both directions. End covers are optional.
Ready to mount
Factory lubricated and sealed
Long service life
Minimal maintenance
€0.00
(*The price will be determined)
Tax included
Quantity

100% Shopping Security
  On Request
Dimensions
Shaft diameter 74.6125 mm
Performance
Basic dynamic load rating 157.91186734173 kN
Basic static load rating 208.17677159417 kN
Limiting speed 2,800 r/min
Properties
Width total 97.63125 mm
Bearing width total 92.075 mm
Housing overall width 73.025 mm
Pitch diameter of bolt holes of round and triangle flange type housing 200.025 mm
Attachment bolt diameter 19.05 mm
Housing type Flanged
Bore type Cylindrical
Lubricant Grease
Material housing Cast iron
Bearing housing seal type Radial lip seal
Bearing insert Spherical roller bearing
Housing type 4 Flanged
Flanged housing type Round
Number of bolt holes for fasteners 4
Relubrication hole With
Grease fitting With
Retaining feature inner ring Set screws
Sealing unit Optional end cover
Coating Without
Material bearing Bearing steel
Bearing position Nonlocating
Logistics
Pack gross weight 11.8 kg
eClass name Mounted bearing unit (unclassified)
EAN 7316579137898
Product net weight 1.25 kg
