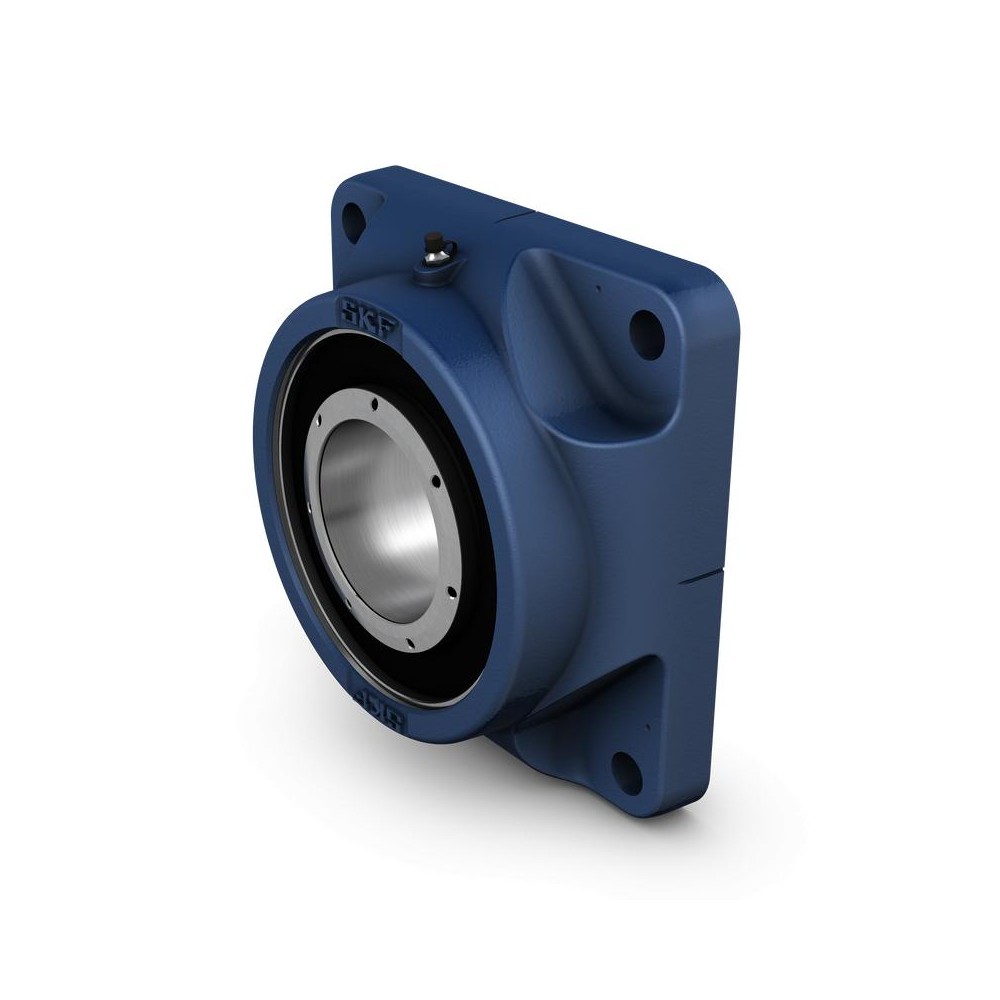

SKF FYNT 90 F Roller bearing units

SKF FYNT 90 F Roller bearing units

Product Code: FYNT 90 F
Part/No: Eshop011476
Brand: SKF
Square flanged roller bearing units consist of a spherical roller bearing mounted in a cast iron housing that can be bolted to a machine wall. They are robust, ready-to-mount units that are assembled, lubricated and sealed at the factory for maximum service life. The simple installation, easy alignment and reliable locking technology of SKF ConCentra units contribute to a smooth operation.
Ready to mount
Factory lubricated and sealed
Long service life
Minimal maintenance
€0.00
(*The price will be determined)
Tax included
Quantity

100% Shopping Security
  On Request
Dimensions
Shaft diameter 90 mm
Performance
Basic dynamic load rating 325 kN
Basic static load rating 375 kN
Limiting speed 2,100 r/min
Properties
Width total 93.5 mm
Bearing width total 86 mm
Centre distance between bolt holes 198 mm
Housing overall width 92 mm
Attachment bolt diameter 20 mm
Housing type Flanged
Bore type Cylindrical
Lubricant Grease
Material housing Cast iron
Bearing housing seal type Radial lip seal
Bearing insert Spherical roller bearing
Housing type 4 Flanged
Flanged housing type Square
Number of bolt holes for fasteners 4
Relubrication hole With
Grease fitting With
Retaining feature inner ring SKF ConCentra
Sealing unit Without
Coating Without
Material bearing Bearing steel
Bearing position Locating
Logistics
Pack gross weight 18.29 kg
eClass name Mounted bearing unit (unclassified)
EAN 7316574762231
Product net weight 12.3 kg
