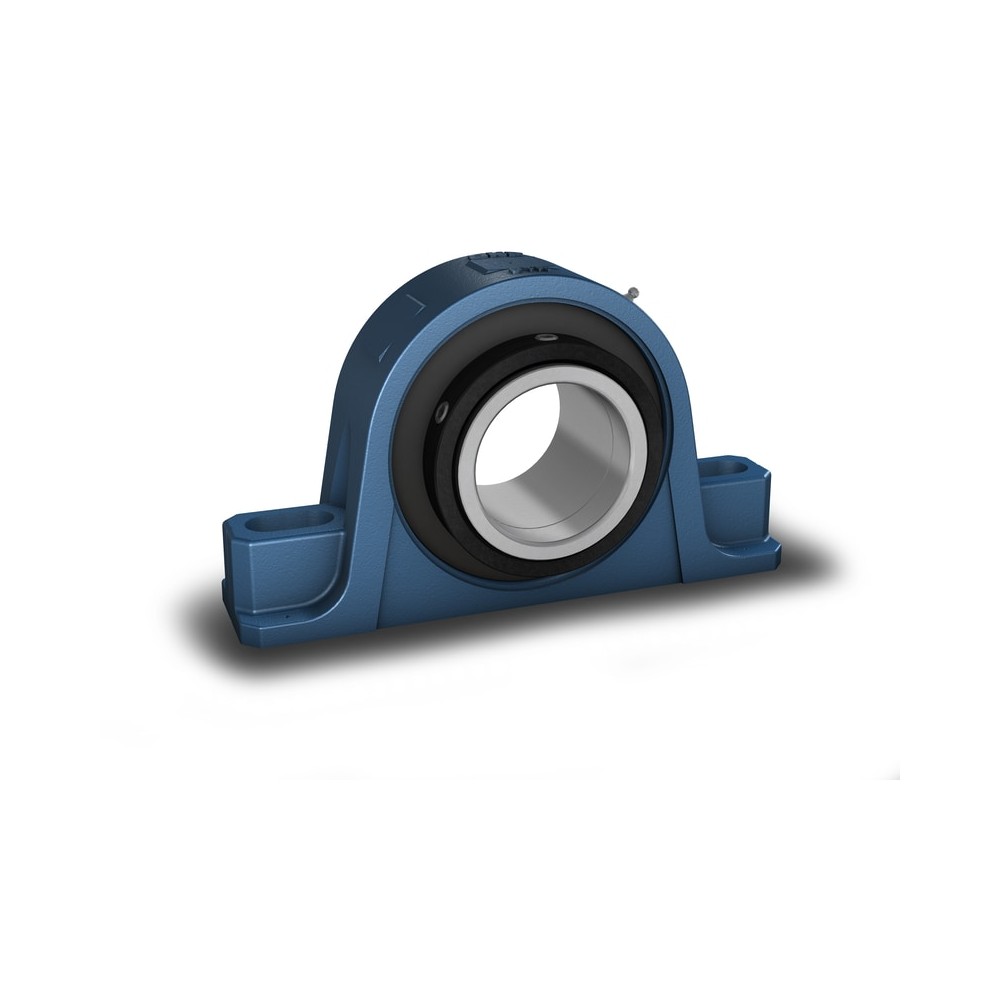

SKF P2B 207-SRB-SRH Roller bearing units

SKF P2B 207-SRB-SRH Roller bearing units

Product Code: P2B 207-SRB-SRH
Part/No: Eshop016954
Brand: SKF
Pillow (plummer) block roller bearing units and take-up roller bearing units consist of a spherical or tapered roller bearing mounted in a non-split housing that can be bolted to a support surface. This variant has a spherical roller bearing, a two-bolt base and set screw locking, holding the shaft firmly against the inner ring of the bearing. The units are sealed and lubricated and ready to use. This bearing unit covers a wide range of requirements, in inch dimensions.
Ready to mount
Robust
Factory lubricated and sealed
Quick mounting
Long service life
€0.00
(*The price will be determined)
Tax included
Quantity

100% Shopping Security
  On Request
Dimensions
Shaft diameter 61.9125 mm
Performance
Basic dynamic load rating 148.12577978816 kN
Basic static load rating 182.82190838719 kN
Limiting speed 3,100 r/min
Properties
Centre height pillow block 69.85 mm
Bearing width total 85.725 mm
Centre distance between bolt holes 184.94375 mm
Housing overall width 68.2625 mm
Attachment bolt diameter 15.875 mm
Housing type Pillow block
Bore type Cylindrical
Lubricant Grease
Material housing Cast iron
Bearing housing seal type Radial lip seal
Bearing insert Spherical roller bearing
Housing type 4 Pillow block
Number of bolt holes for fasteners 2
Relubrication hole With
Grease fitting With
Retaining feature inner ring Set screws
Sealing unit Optional end cover
Coating Without
Material bearing Bearing steel
Bearing position Locating
Logistics
Pack gross weight 7.3 kg
eClass name Mounted bearing unit (unclassified)
EAN 7316579141925
Product net weight 271.7 g
