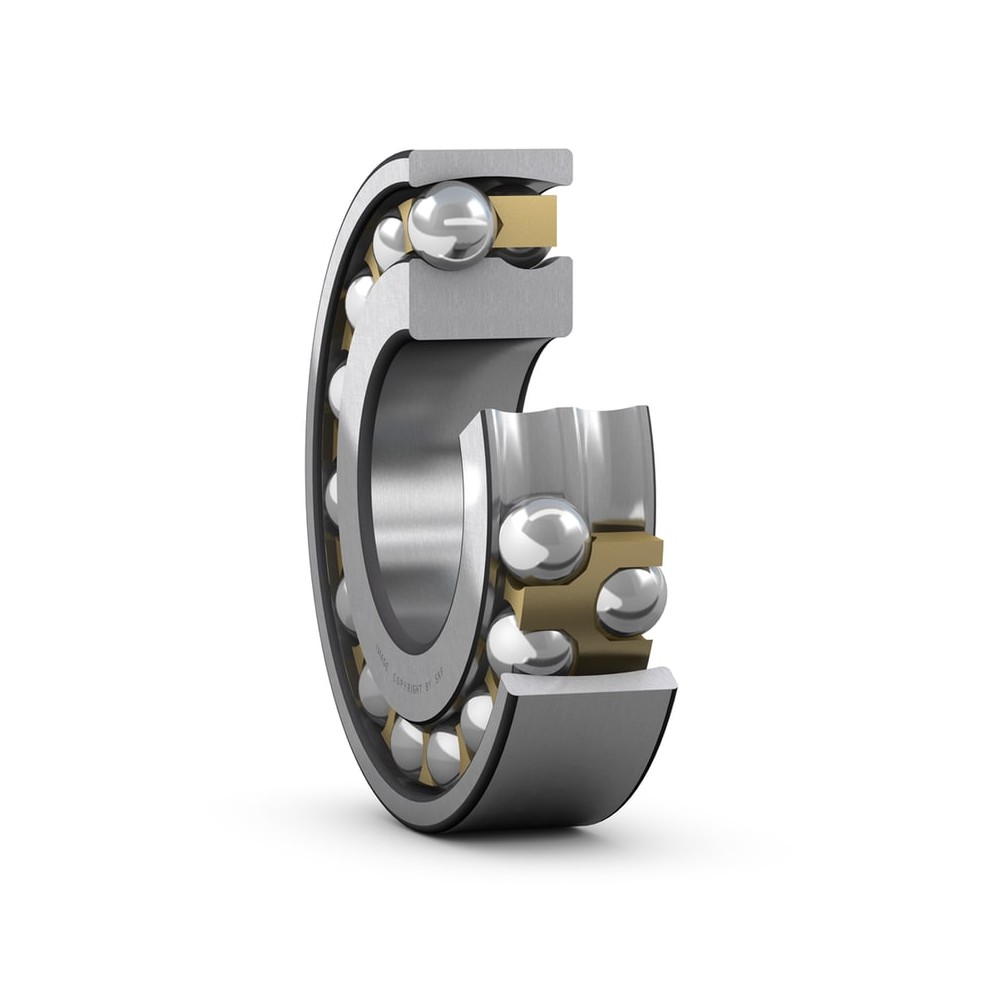

SKF 2309 EM Self-aligning Ball Bearings

SKF 2309 EM Self-aligning Ball Bearings

Product Code: 2309 EM
Part/No: 000101
Brand: SKF
Self-aligning Ball bearingshave two rows of balls, a common sphered raceway in the outer ring and two deep uninterrupted raceway grooves in the inner ring. They are insensitive to angular misalignment of the shaft relative to the housing, which can be caused, for example, by shaft deflection.
Accommodate static and dynamic misalignment
Excellent high-speed performance
Excellent light load performance
Low friction
€529.95
Tax included
mail_outlineSEND REQUEST
SKF 2309 EM Self-aligning Ball Bearings

SKF 2309 EM Self-aligning Ball Bearings

Product Code: 2309 EM

Part/No: 000101

Brand: SKF

100% Shopping Security
  On Request
Dimensions
Bore diameter 45 mm
Outside diameter 100 mm
Width 36 mm
Performance
Basic dynamic load rating 63.7 kN
Basic static load rating 19.3 kN
Limiting speed 9.000 r/min
Reference speed 13.000 r/min
Properties
Sealing Without
Bore type Cylindrical
Cage Machined metal
Locating feature bearing outer ring None
Lubricant None
Number of rows 2
Radial internal clearance CN
Relubrication feature Without
Coating Without
Material bearing Bearing steel
Tolerance class Normal
Retaining feature inner ring None
Logistics
EAN code 07316576620867
Product net weight 1.314 kg
eClass name Self-aligning ball bearing
