SKF 1204 ETN9/C2 Self-aligning ball bearings

SKF 1204 ETN9/C2 Self-aligning ball bearings

Product Code: 1204 ETN9/C2
Part/No: Eshop000872
Brand: SKF

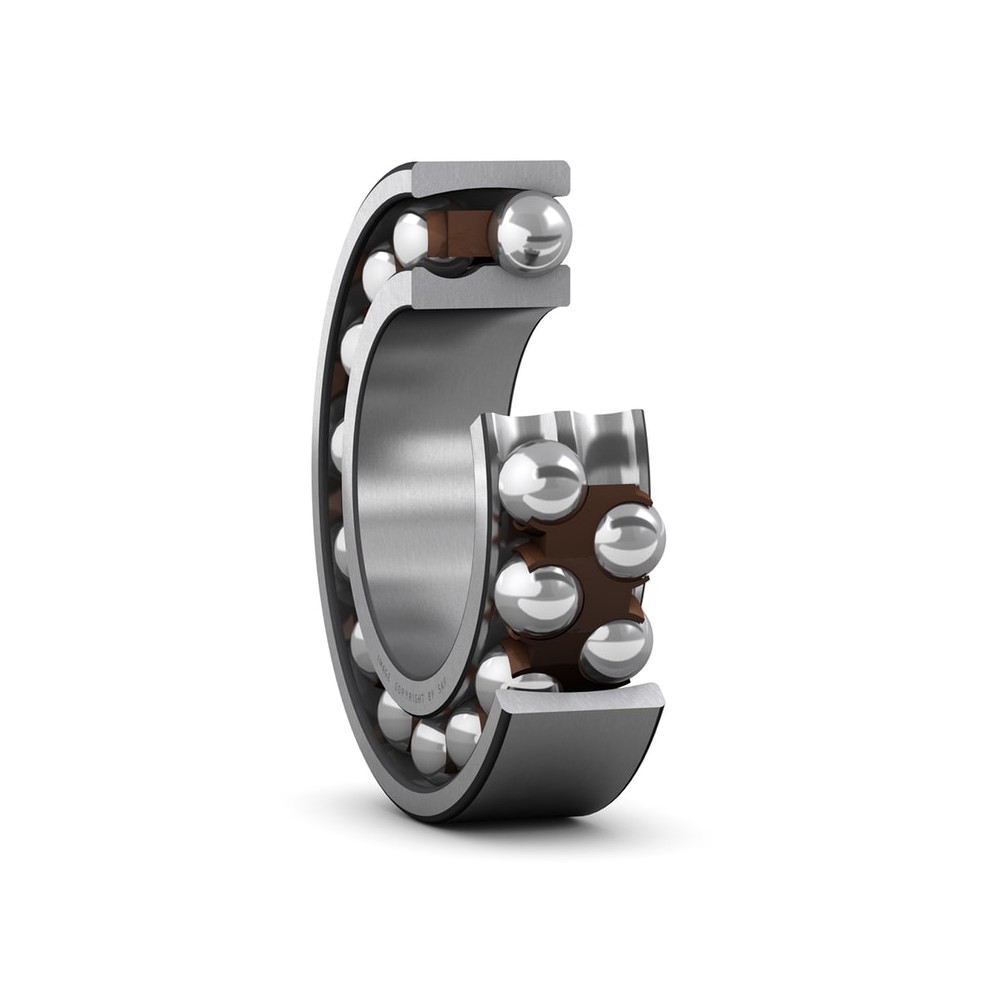

Self-aligning Ball bearingshave two rows of balls, a common sphered raceway in the outer ring and two deep uninterrupted raceway grooves in the inner ring. They are insensitive to angular misalignment of the shaft relative to the housing, which can be caused, for example, by shaft deflection.
Accommodate static and dynamic misalignment
Excellent high-speed performance
Excellent light load performance
Low friction
€0.00
(*The price will be determined)
Tax included
Quantity

100% Shopping Security
  On Request
Dimensions
Bore diameter 20 mm
Outside diameter 47 mm
Width 14 mm
Performance
Basic dynamic load rating 12.7 kN
Basic static load rating 3.4 kN
Limiting speed 20,000 r/min
Reference speed 32,000 r/min
Properties
Sealing Without
Bore type Cylindrical
Cage Nonmetallic
Locating feature bearing outer ring None
Lubricant None
Number of rows 2
Radial internal clearance C2
Relubrication feature Without
Tolerance class Normal
Retaining feature inner ring None
Coating Without
Material bearing Bearing steel
Logistics
Pack gross weight 0.115 kg
eClass name Self-aligning ball bearing
EAN 7316571452388
Product net weight 0.111 kg
