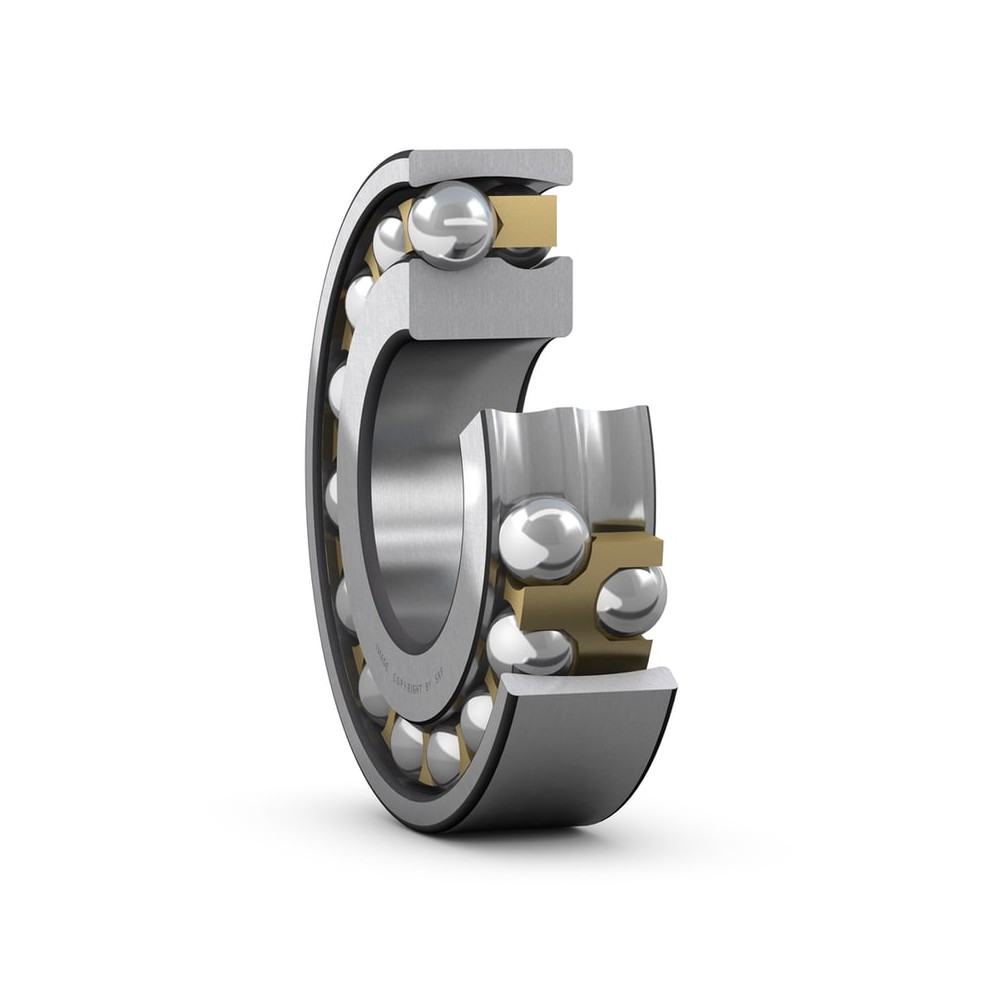

SKF 1303 EM/P62 Self-aligning ball bearings

SKF 1303 EM/P62 Self-aligning ball bearings

Product Code: 1303 EM/P62
Part/No: 037530
Brand: SKF
Self-aligning Ball bearingshave two rows of balls, a common sphered raceway in the outer ring and two deep uninterrupted raceway grooves in the inner ring. They are insensitive to angular misalignment of the shaft relative to the housing, which can be caused, for example, by shaft deflection.
Accommodate static and dynamic misalignment
Excellent high-speed performance
Excellent light load performance
Low friction
€384.73
Tax included
Quantity

100% Shopping Security
  Shipped within 24 hours
Dimensions
Bore diameter 17 mm
Outside diameter 47 mm
Width 14 mm
Performance
Basic dynamic load rating 12.7 kN
Basic static load rating 3.4 kN
Limiting speed 20,000 r/min
Reference speed 28,000 r/min
Properties
Sealing Without
Bore type Cylindrical
Cage Machined metal
Locating feature bearing outer ring None
Lubricant None
Number of rows 2
Radial internal clearance C2
Relubrication feature Without
Tolerance class Class P6 (P6)
Retaining feature inner ring None
Coating Without
Material bearing Bearing steel
Logistics
Pack gross weight 0.134 kg
eClass name Self-aligning ball bearing
EAN 7316570016734
Product net weight 0.13 kg
