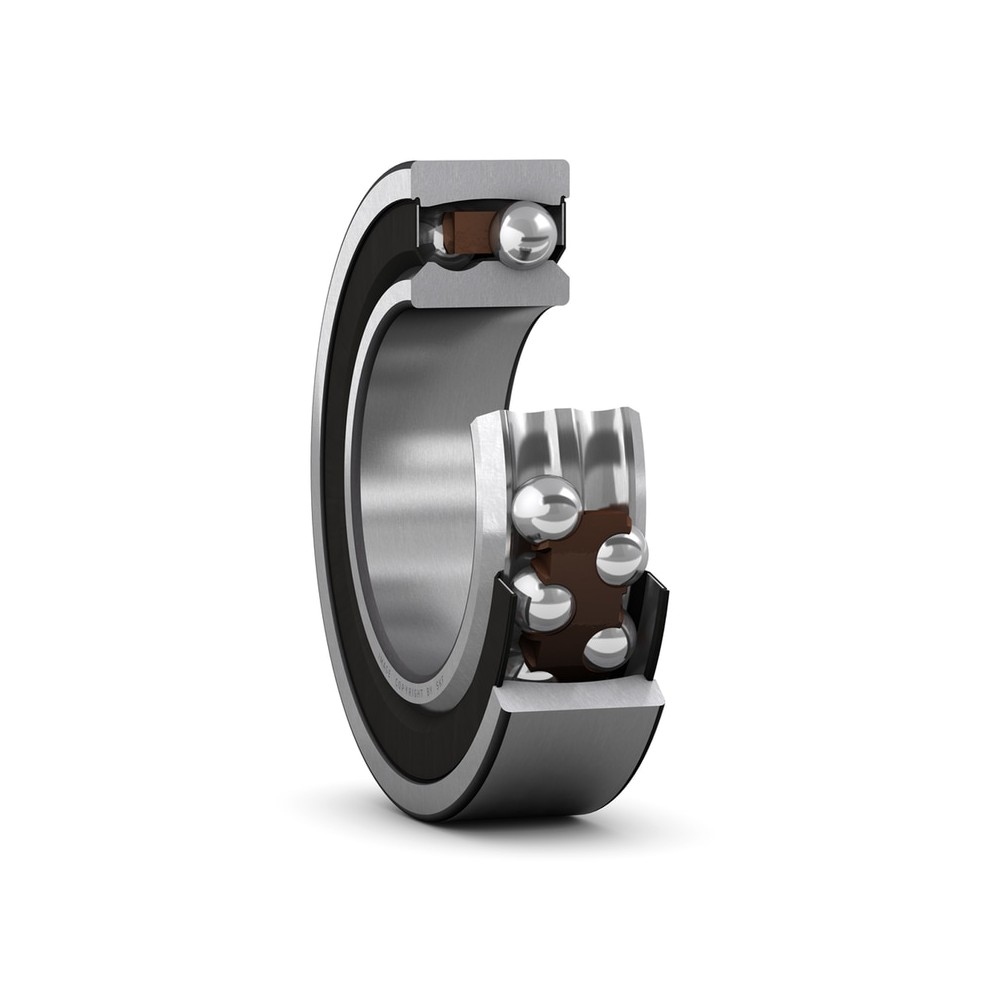

SKF 2209 E-2RS1KTN9 Self-aligning ball bearings

SKF 2209 E-2RS1KTN9 Self-aligning ball bearings

Product Code: 2209 E-2RS1KTN9
Part/No: Eshop001150
Brand: SKF
Self-aligning ball bearings, with a tapered bore and seals on both sides, have two rows of balls, a common sphered raceway in the outer ring and two deep uninterrupted raceway grooves in the inner ring. They are insensitive to angular misalignment of the shaft relative to the housing. The tapered bore facilitates ease of mounting via adapter/withdrawal sleeves. The integral sealing can prolong bearing service life by keeping lubricant in the bearings and contaminants out.
Ease of mounting via adapter/withdrawal sleeves
Accommodate static and dynamic misalignment
Excellent high-speed and light load performance
Low friction
Integral sealing results in reduced maintenance requirements and prolonged bearing service life
€214.00
Tax included
Quantity

100% Shopping Security
  On Request
Dimensions
Bore diameter 45 mm
Outside diameter 85 mm
Width 23 mm
Performance
Basic dynamic load rating 22.9 kN
Basic static load rating 7.8 kN
Limiting speed 5,300 r/min
Reference speed 15,000 r/min
Properties
Sealing type Contact
Sealing Seal on both sides
Bore type Tapered 1:12
Cage Nonmetallic
Locating feature bearing outer ring None
Lubricant Grease
Number of rows 2
Radial internal clearance CN
Relubrication feature Without
Tolerance class Normal
Retaining feature inner ring None
Coating Without
Material bearing Bearing steel
Logistics
Pack gross weight 531.1 g
eClass name Self-aligning ball bearing
EAN 7316577035691
Product net weight 518.8 g
