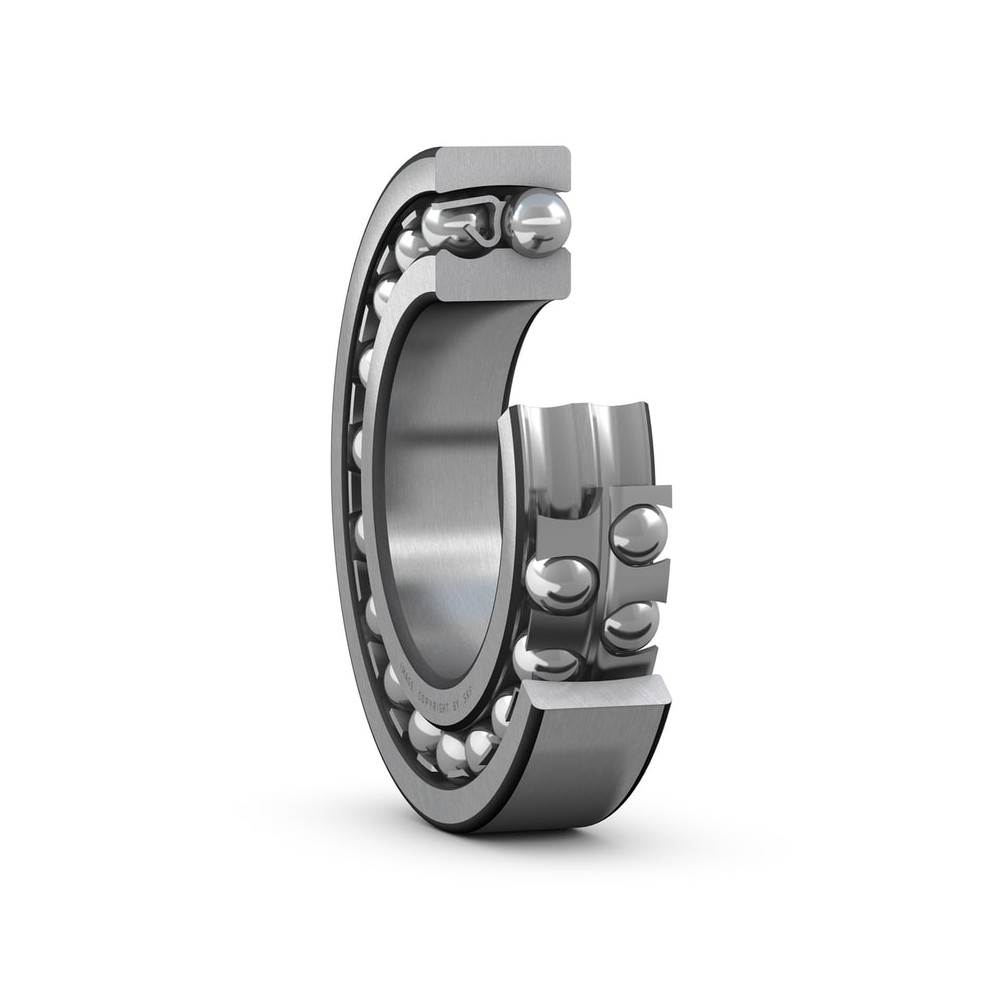

SKF 2218 K Self-aligning ball bearings

SKF 2218 K Self-aligning ball bearings

Product Code: 2218 K
Part/No: 037770
Brand: SKF
Self-aligning ball bearings, with a tapered bore, have two rows of balls, a common sphered raceway in the outer ring and two deep uninterrupted raceway grooves in the inner ring. They are insensitive to angular misalignment of the shaft relative to the housing, which can be caused, for example, by shaft deflection. The tapered bore facilitates ease of mounting via adapter sleeves or withdrawal sleeves.
Ease of mounting via adapter sleeves or withdrawal sleeves
Accommodate static and dynamic misalignment
Excellent high-speed performance
Excellent light load performance
Low friction
€961.91
Tax included
Quantity

100% Shopping Security
  On Request
Dimensions
Bore diameter 90 mm
Outside diameter 160 mm
Width 40 mm
Performance
Basic dynamic load rating 70.2 kN
Basic static load rating 28.5 kN
Limiting speed 5,300 r/min
Reference speed 7,500 r/min
Properties
Sealing Without
Bore type Tapered 1:12
Cage Sheet metal
Locating feature bearing outer ring None
Lubricant None
Number of rows 2
Radial internal clearance CN
Relubrication feature Without
Tolerance class Normal
Retaining feature inner ring None
Coating Without
Material bearing Bearing steel
Logistics
Pack gross weight 3.202 kg
eClass name Self-aligning ball bearing
EAN 7316577002037
Product net weight 3.136 kg
