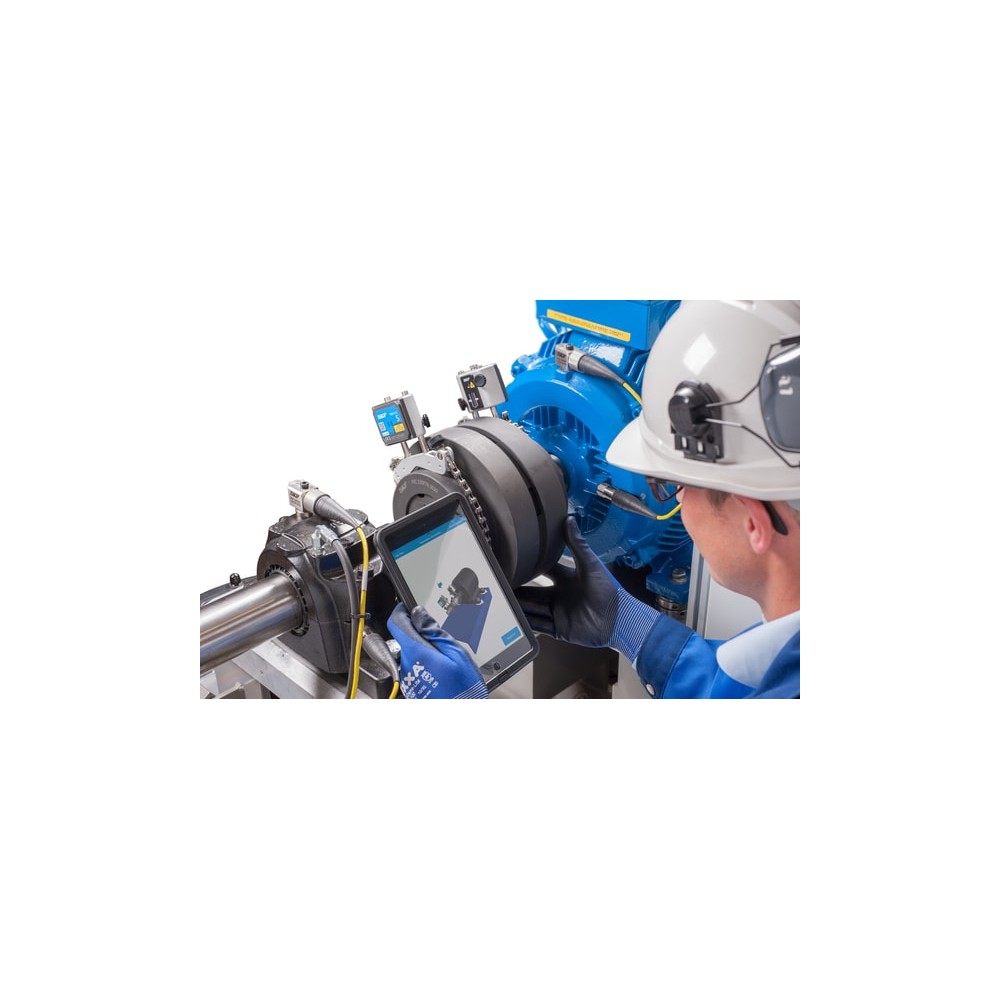

SKF TKSA 71/PRO Shaft alignment tools

Product Code: TKSA 71/PRO

Part/No: 033700

Brand: SKF

Click here for more details

The TKSA 71/PRO is designed for professional alignments in harsh industrial environments and offers a variety of features for alignment experts. The instrument is very versatile with ultra-compact measuring units for use in extremely narrow spaces. Its de

Intuitive software applications
Guided alignment processes and explanatory videos
Comprehensive accessories and dedicated software applications
Up to 10 m measurement distance, disturbance compensation and full measurement flexibility
Only 40°

€11,030.05

Tax included

Quantity

100% Shopping Security

On Request

Dimensions

Case dimensions (lxhxw) 610x265x430 (24x10.4x16.9 in.) mm

Maximum coupling height 45 mm

Maximum coupling height with extension 165 mm

Properties

Content Set of 2 Measuring units (M and S),Set of 2 shaft brackets with chains 480 mm (18.9 in) and threaded rods 80 mm (3.2 in) and magnets,Set of 8 threaded extension rods 120 mm (4.7 in),Set of 2 extension chains 1 m (3.3 ft),Set of 2 magnetic bases,Set of 2 sliding brackets,Set of 2 offset brackets 50 mm (2 in),Micro USB to USB split charging cable,Set of 2 wireless charging pads,Measuring tape,Certificate of calibration and conformance,Quick start guide,Trolley case

Battery Measuring units=rechargable 1000mAh Li-ion battery

Battery Life 8 h

Certifications Calibration certificate (2 years validity)

Alignment methods 3 position measurement 9 -12 -3,Automatic measurement,Free measurement (only 40° shaft rotation needed)

Communications Bluetooth 4.0 LE

Logistics

EAN code 07316577208590

Product net weight 12.4 kg

eClass name Product for mounting and dismounting and for maintenance

Pack gross weight 12.6 kg

UNSPSC name Heat tracing equipment
