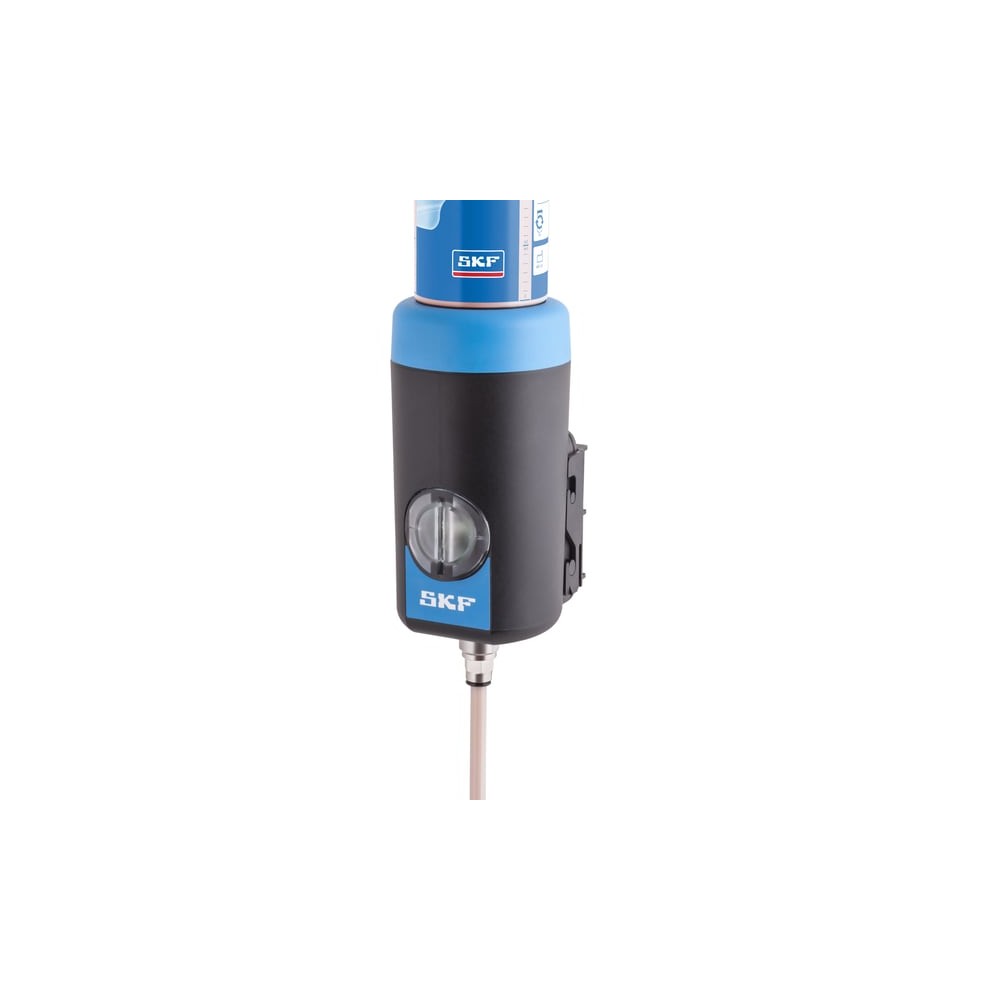

SKF TLMR 101 Single point automatic lubricators

SKF TLMR 101 Single point automatic lubricators

Product Code: TLMR 101
Part/No: 033720
Brand: SKF
With a relatively high dispensing pressure, SKF TLMR can operate at long distances and provide optimum results with difficult-to-reach and unsafe lubrication points. Its robust design makes them suitable for operating in a wide temperature range in prese
Flexible temperature independent dispense rate from 1 to 24 months
Available cartridges of 120 and 380 ml of SKF grease
Maximum discharge pressure of 30 bars (435 psi) during the dispensing period
Wide temperature range, especially suitable for e
€267.79
Tax included
Quantity

100% Shopping Security
  Shipped within 24 hours
Performance
Width across flats 1 30 bar
Highest dispense setting 120 ml cartridge 3.9 ml/d
Highest dispense setting 380 ml cartridge 12.5 ml/d
Lowest dispense setting 120 ml cartridge 0.16 ml/d
Lowest dispense setting 380 ml cartridge 0.5 ml/d
Properties
Power source 4x AA Lithium batteries (included with refill cartridge)
Product weight 0.72 kg
Ambient temperature range -25 – 70 °C
Battery 4x AA Lithium batteries (included with refill cartridge)
Battery capacity 3 A·h
Battery voltage 1.5 V
Degree of protection (IP) DIN EN 60529= IP 67,DIN 40 050-9= IP 6k9k
Drive mechanism Electro mechanical
LED indicator Green LED (every 8 sec)= OK,Green and red LED (every 8 sec)= Almost empty,Red LED (every 8 sec)= Error
Battery type Lithium
Maximum feed line length 5 m
Nominal emptying time User adjustable= 1, 2, 3, 6, 9, 12, 18 and 24 months or purge
Purge setting 31 ml
Logistics
EAN code 07316575884932
Product net weight 0.72 kg
eClass name Lubrication system (single-point)
Pack gross weight 0.72 kg
UNSPSC name Grease
