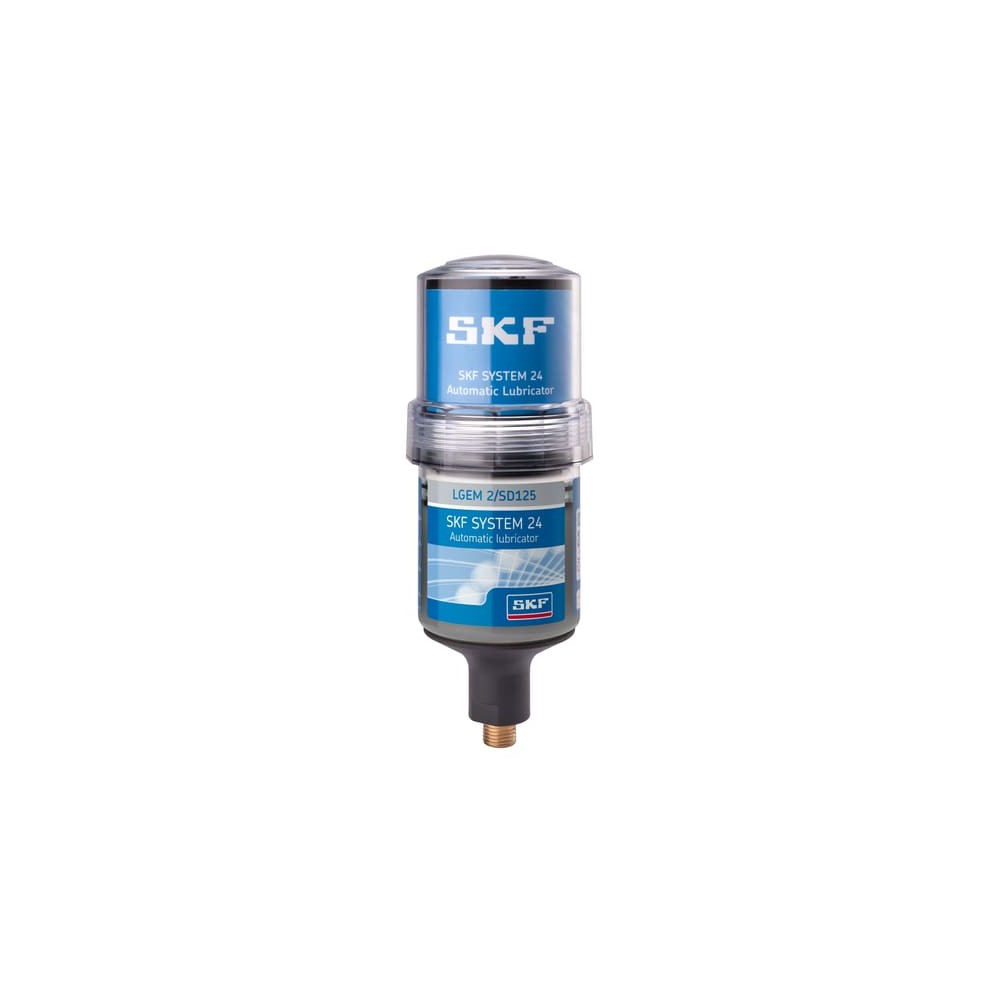

SKF TLSD 125/EM2 Single point automatic lubricators

Product Code: TLSD 125/EM2

Part/No: Eshop041981

Brand: SKF

Click here for more details

TLSD 125/EM2 is filled with SKF LGEM 2 high viscosity bearing grease with solid lubricants, recommended for low speeds and high loads and vibrations. Our electro-mechanical single point automatic lubricators are available in many configurations, pre-filled with SKF lubricants, both as battery or cable driven. Using automatic lubricators improves employee safety, increases machine reliability and optimizes maintenance operations.

Flexible dispense rate from 1 to 12 months
Maximum discharge pressure of 5 bar during the dispensing period
LED status indicators
Compact size allows installation in restrictive areas
Suitable for both direct and remote installation
Supplied with support flange for enhanced sturdiness

€126.42

Tax included

Quantity

100% Shopping Security

On Request

Dimensions

Product weight 0.56 kg

Performance

Properties

Lubricant LGEM 2

Connecting thread G 1/4

Lubricant operating temperature range –20 to +120 °C

Lubricant quantity 125 ml

Ambient temperature range 0 – 50 °C

Battery Battery pack, TLSD 1-BAT

Battery capacity 2.7 A·h

Battery_type Alkaline manganese

Battery voltage 4.5 V

Degree of protection (IP) IP 65

Drive mechanism Electro mechanical

Highest dispense setting 4.1 ml/d

Lowest dispense setting 0.3 ml/d

LED indicator Green LED (every 30 sec): OK;Yellow LED (every 30 sec): Pre-warning low battery power;Yellow LED (every 5 sec): Pre-warning high back pressure;Red LED (every 5 sec): Warning, stopped on error;Red LED (every 2 sec): Warning, empty cartridge

Lubricant description High viscosity bearing grease with solid lubricants for heavy loads, heavy vibrations and slow rotations

Maximum feed line length 3 m

Nominal emptying time User adjustable: 1, 2, 3, 4, 6, 8, 10 and 12 months

Power source Battery pack

Recommended applications Rolling element bearings running at low speed and very high loads;Jaw crushers;Crane arms

Width across flats 1 5 bar

Logistics

Pack gross weight 646.7 g

eClass name Lubrication system (single-point)

UNSPSC code 15-12-19-02

EAN code 07316575835484

Product net weight 0.56 kg
