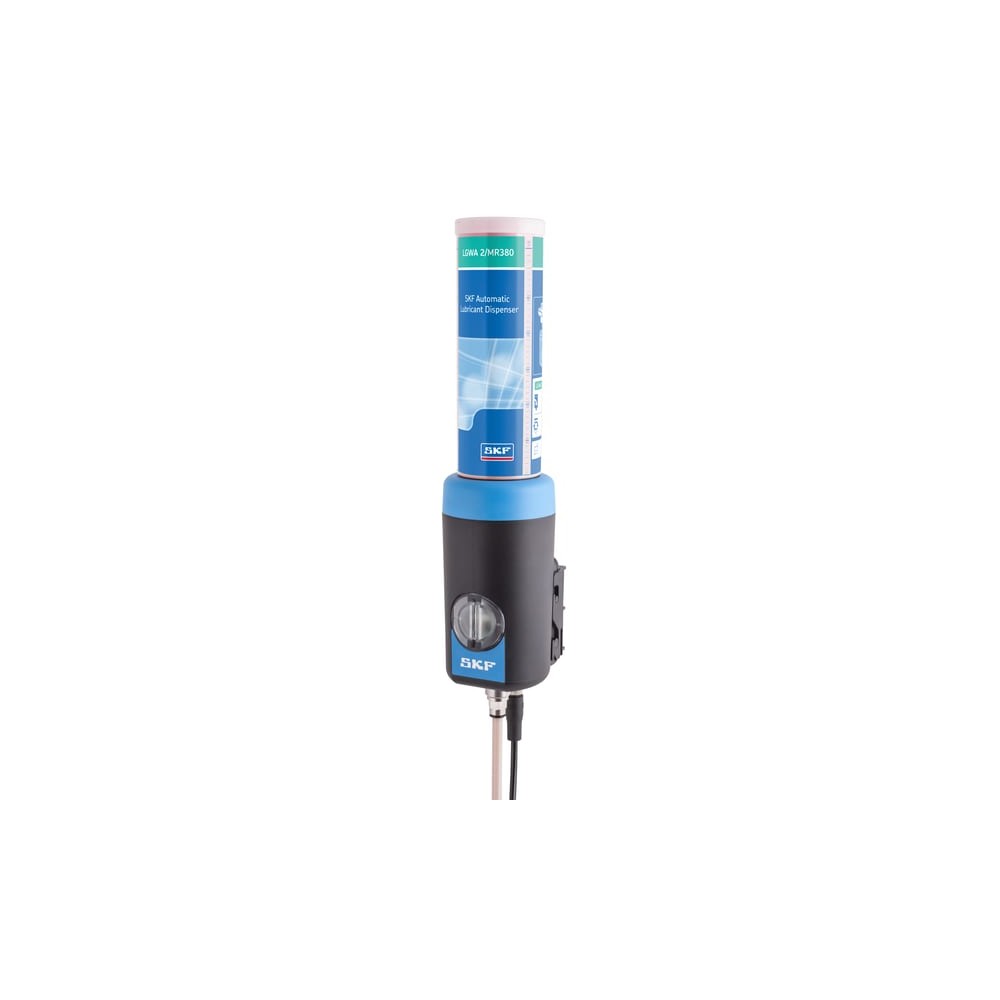

SKF TLMR 101/38WA2 Single point automatic lubricators

SKF TLMR 101/38WA2 Single point automatic lubricators

Product Code: TLMR 101/38WA2
Part/No: Eshop041985
Brand: SKF
TLMR101/38WA2 is filled with SKF LGWA 2 grease for wide temperature ranges and extreme pressures, recommended for electric motors, conveyors, fans and pumps. With a relatively high pressure, SKF TLMR can operate at long distances and provide optimum resu
Flexible temperature independent dispense rate from 1 to 24 months
Available cartridges of 120 and 380 ml of SKF grease
Maximum discharge pressure of 30 bars (435 psi) during the dispensing period
Wide temperature range
€347.15
Tax included
Quantity

100% Shopping Security
  On Request
Dimensions
Lubricant operating temperature range -30 to +140 °C
Lubricant quantity 380 ml
Performance
Width across flats 1 30 bar
Highest dispense setting 120 ml cartridge 3.9 ml/d
Highest dispense setting 380 ml cartridge 12.5 ml/d
Lowest dispense setting 120 ml cartridge 0.16 ml/d
Lowest dispense setting 380 ml cartridge 0.5 ml/d
Properties
Lubricant LGWA 2
Power source 4x AA Lithium batteries (included with refill cartridge)
Product weight 1.66 kg
Ambient temperature range -25 – 70 °C
Battery 4x AA Lithium batteries (included with refill cartridge)
Battery capacity 3 A·h
Battery voltage 1.5 V
Degree of protection (IP) DIN EN 60529= IP 67,DIN 40 050-9= IP 6k9k
Drive mechanism Electro mechanical
LED indicator Green LED (every 8 sec)= OK,Green and red LED (every 8 sec)= Almost empty,Red LED (every 8 sec)= Error
Battery type Lithium
Maximum feed line length 5 m
Nominal emptying time User adjustable= 1, 2, 3, 6, 9, 12, 18 and 24 months or purge
Lubricant description Wide temperature range, extreme pressure, high load bearing grease
Purge setting 31 ml
Logistics
EAN code 07316575884970
Product net weight 1.66 kg
eClass name Lubrication system (single-point)
Pack gross weight 1.66 kg
UNSPSC name Grease
