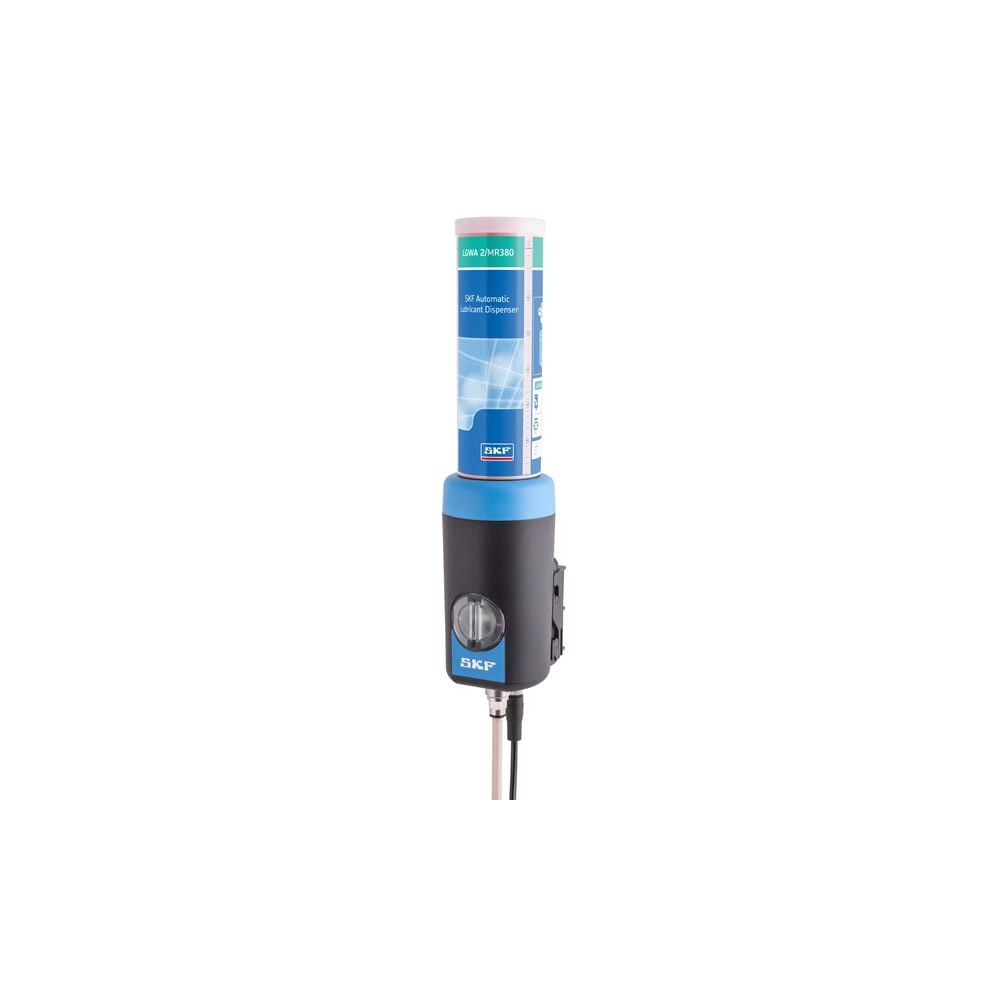

SKF TLMR 201/38WA2 Single point automatic lubricators

SKF TLMR 201/38WA2 Single point automatic lubricators

Product Code: TLMR 201/38WA2
Part/No: Eshop041986
Brand: SKF
TLMR101/38WA2 is filled with SKF LGWA 2 grease for wide temperature ranges and extreme pressures, recommended for electric motors, conveyors, fans and pumps. With a relatively high pressure, SKF TLMR can operate at long distances and provide optimum results with difficult-to-reach and unsafe lubrication points. Its robust design makes them suitable for operating in a wide temperature range in presence of vibrations. Powered by batteries or 12-24 V DC by plug M12-A (not included) and delivered with or without grease.
Flexible temperature independent dispense rate from 1 to 24 months
Available cartridges of 120 and 380 ml of SKF grease
Maximum discharge pressure of 30 bars (435 psi) during the dispensing period
Wide temperature range, especially suitable for engine rooms, and hot fan applications, as well as wind turbine applications.
€456.26
Tax included
Quantity

100% Shopping Security
  On Request
Dimensions
Product weight 1.41 kg
Performance
Properties
Lubricant LGWA 2
Connecting thread G 1/4
Lubricant operating temperature range –30 to +140 °C
Lubricant quantity 380 ml
Ambient temperature range -25 – 70 °C
Battery none
Degree of protection (IP) DIN EN 60529: IP 67;DIN 40 050-9: IP 6k9k
Drive mechanism Electro mechanical
LED indicator Green LED (every 8 sec): OK;Green and red LED (every 8 sec): Almost empty;Red LED (every 8 sec): Error
Lubricant description Wide temperature range, extreme pressure, high load bearing grease
Maximum feed line length 5 m
Nominal emptying time User adjustable: 1, 2, 3, 6, 9, 12, 18 and 24 months or purge
Power source 12-24 V DC via M12-A connection
Purge setting 31 ml
Highest dispense setting 120 ml cartridge 3.9 ml/d
Highest dispense setting 380 ml cartridge 12.5 ml/d
Lowest dispense setting 120 ml cartridge 0.16 ml/d
Lowest dispense setting 380 ml cartridge 0.5 ml/d
Width across flats 1 30 bar
Logistics
Pack gross weight 1.529 kg
eClass name Lubrication system (single-point)
UNSPSC code 15-12-19-02
EAN code 07316575884994
Product net weight 1.41 kg
eClass code 23-06-10-14
