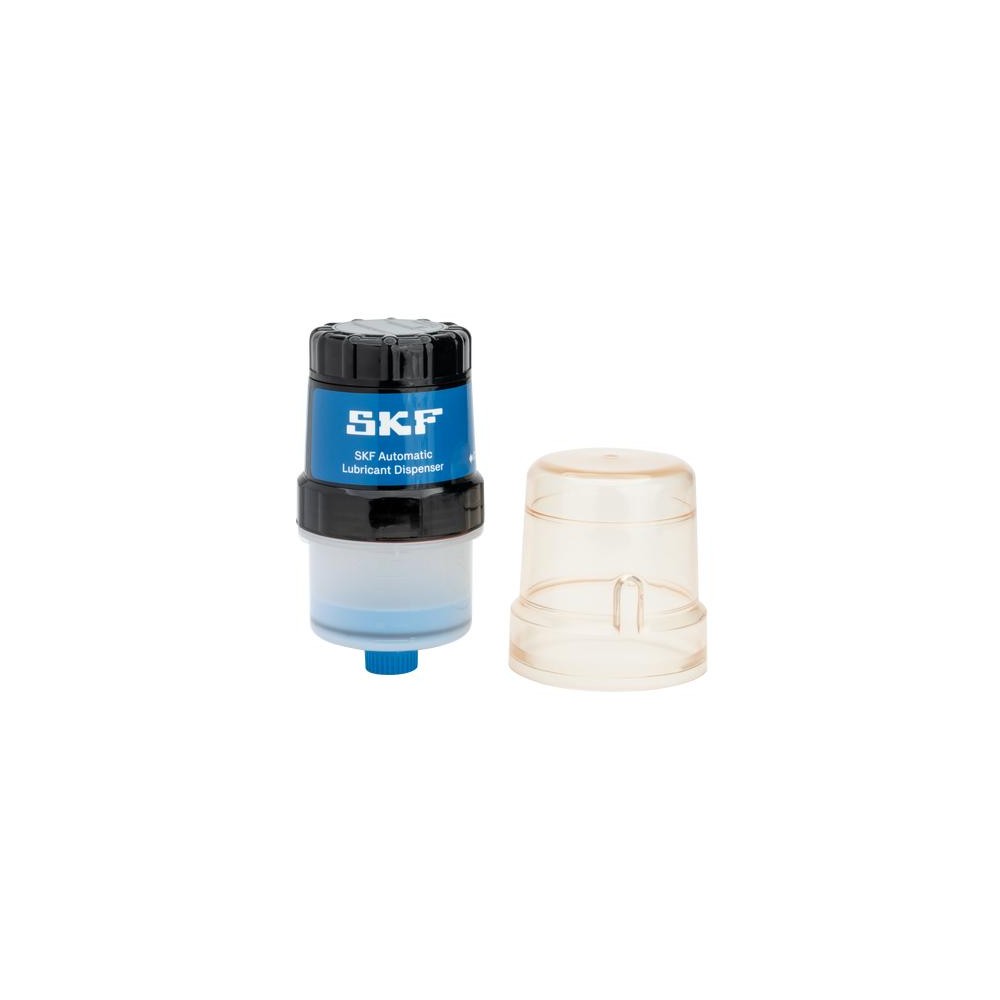

SKF TLRD 150 Single point automatic lubricators

SKF TLRD 150 Single point automatic lubricators

Product Code: TLRD 150
Part/No: Eshop042445
Brand: SKF
Battery-powered drive unit with a translucent empty cartridge which can be easily be filled with any compatible grease. Once installed and set, it automatically delivers the desired flow of grease in a continuous way. The dispense rate can be adjusted on the lubricator directly. Once empty, it can easily be refilled, equipped with a new battery pack and installed again.
Can be filled and refilled with any compatible grease
Flexible dispense rate from 1 to 12 months
LED status indicators
Compact size allows installation in restrictive areas
Suitable for both direct and remote installation
Makes lubrication easy and time effective
€247.94
Tax included
Quantity

100% Shopping Security
  On Request
Dimensions
Product weight 0.58 kg
Performance
Properties
Connecting thread G 1/2
Dimensions (WxLxH) 89 x 89 x 152 mm
Ambient temperature range -20 – 60 °C
Battery Battery pack, 6V
Battery capacity 1.4 A·h
Battery_type CR-P2 Lithium
Battery voltage 6
Content Drive unit with top cover;Empty grease container;Battery pack;Instructions for use
Degree of protection (IP) IP 65
Drive mechanism Electro mechanical
Highest dispense setting 4.9 ml/d
Lowest dispense setting 0.4 ml/d
Lubricator capacity 150 ml
LED indicator Red LED flashing : feed blockage or empty battery or empty cup
Maximum feed line length 3 m
Nominal emptying time User adjustable: any integer value from 1 to 12 months
NLGI class of lubricant (max) 2
Power source Battery
Recommended applications Pumps, fans and blowers, conveyors, escalators, cranes, food and beverage processing machinery and many more
Relative humidity 0 to 75%, non-condensing
Recommended storage temperature 0–50 °C
Shelf life 2 year
Special features Delivered without grease. Easily fillable and refillable
Width across flats 1 5 bar
Logistics
Pack gross weight 6.41 kg
eClass name Lubrication system (single-point)
UNSPSC code 15-12-19-02
EAN code 07316581947133
Product net weight 0.53 kg
eClass code 23-06-10-14
