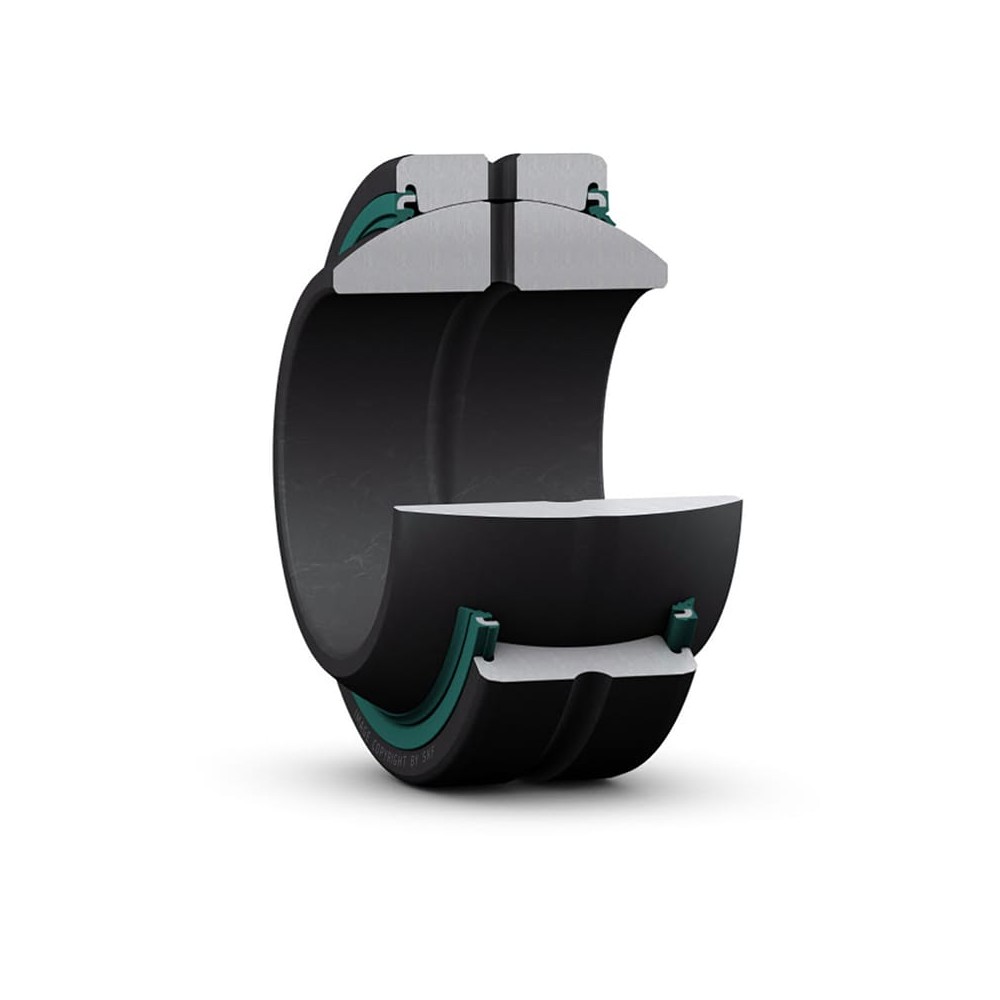

SKF GEH 40 ESX-2LS Radial spherical plain bearings

SKF GEH 40 ESX-2LS Radial spherical plain bearings

Product Code: GEH 40 ESX-2LS
Part/No: Eshop011911
Brand: SKF
These radial spherical plain bearings have an SKF Explorer steel/steel sliding contact surface combination. They are initially lubricated and have a triple-lip, heavy-duty contact seal on both sides. Compared to conventional steel/steel bearings, they have increased dynamic load ratings. Compared to the GE series, they have a wider inner ring and a larger outside diameter, which enable higher load ratings and larger tilt angles.
Designed for radial and combined radial and axial loads
Long service life
Virtually maintenance-free
Suitable for heavy static or impact loads
Enable larger tilt angles
€0.00
(*The price will be determined)
Tax included
Quantity

100% Shopping Security
  On Request
Dimensions
Bore diameter 40 mm
Outside diameter 68 mm
Width inner ring 40 mm
Width outer ring 25 mm
Performance
Basic dynamic load rating 190 kN
Basic static load rating 640 kN
Properties
SKF performance class SKF Explorer
Sealing type Triplelip
Sealing Seal on both sides
Radial internal clearance CN
Relubrication feature With
Sliding contact surface combination Steel/steel, SKF Explorer
Material inner ring Bearing steel
Material outer ring Bearing steel
Maintenance Virtually maintenancefree
Logistics
Pack gross weight 527.3 g
eClass name Spherical plain bearing
EAN 7316575579692
Product net weight 0.39 kg
