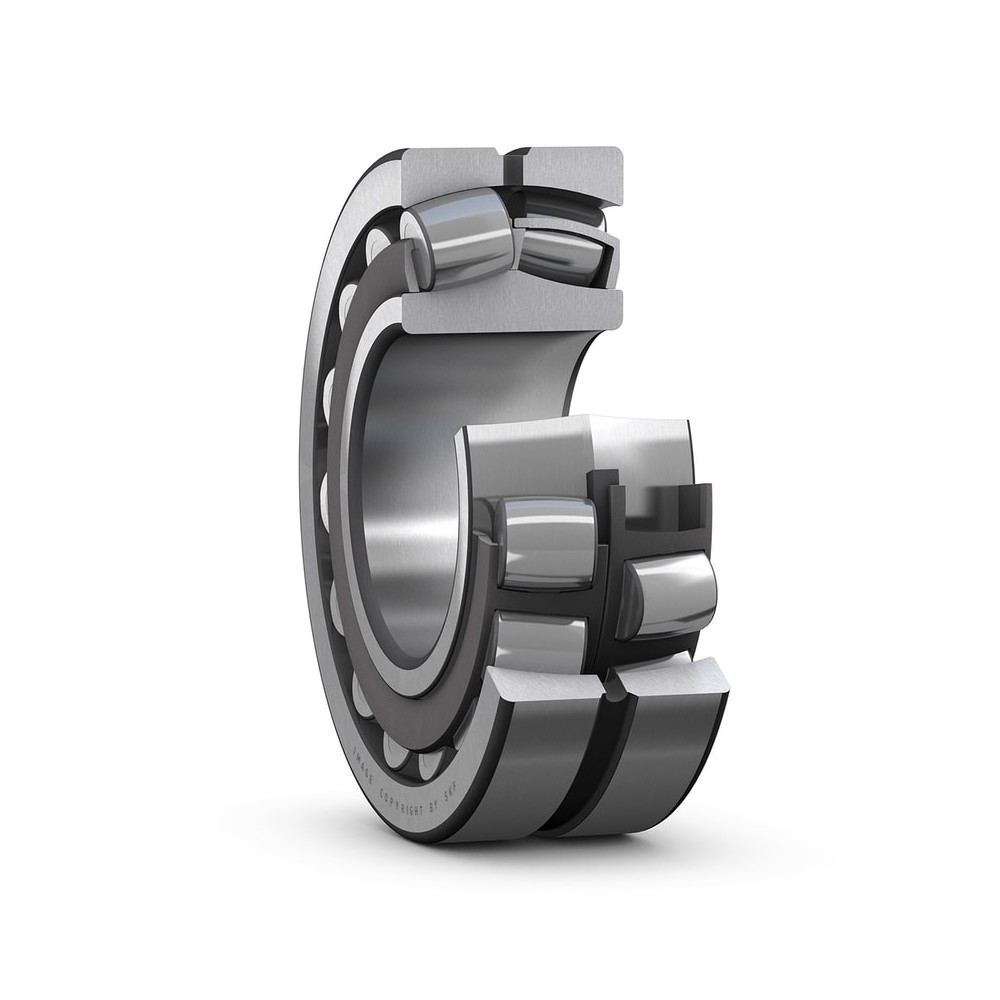

SKF 22332 CC/C3W33 Spherical roller bearings

SKF 22332 CC/C3W33 Spherical roller bearings

Product Code: 22332 CC/C3W33
Part/No: Eshop001678
Brand: SKF
Spherical roller bearings can accommodate heavy loads in both directions. They are self-aligning and accommodate misalignment and shaft deflections, with virtually no increase in friction or temperature. The design includes features to facilitate relubrication. The bearings can be used in a modular system, including housings, sleeves and nuts.
Accommodate misalignment
High load carrying capacity
Relubrication features
Low friction and long service life
Increased wear resistance
€6,487.58
Tax included
Quantity

100% Shopping Security
  On Request
Dimensions
Bore diameter 160 mm
Outside diameter 340 mm
Width 114 mm
Performance
Basic dynamic load rating 1,680 kN
Basic static load rating 1,960 kN
Limiting speed 1,900 r/min
Reference speed 1,500 r/min
Properties
SKF performance class SKF Explorer
Candidate for remanufacturing Yes
Sealing Without
Bore type Cylindrical
Cage Sheet metal
Locating feature bearing outer ring Without
Lubricant None
Number of rows 2
Radial internal clearance C3
Relubrication feature With
Tolerance class Normal
Tolerance class for dimensions Normal
Tolerance class for runout P5
Logistics
Pack gross weight 54.7 kg
eClass name Spherical roller bearing
EAN 7316576602399
Product net weight 49.6 kg
