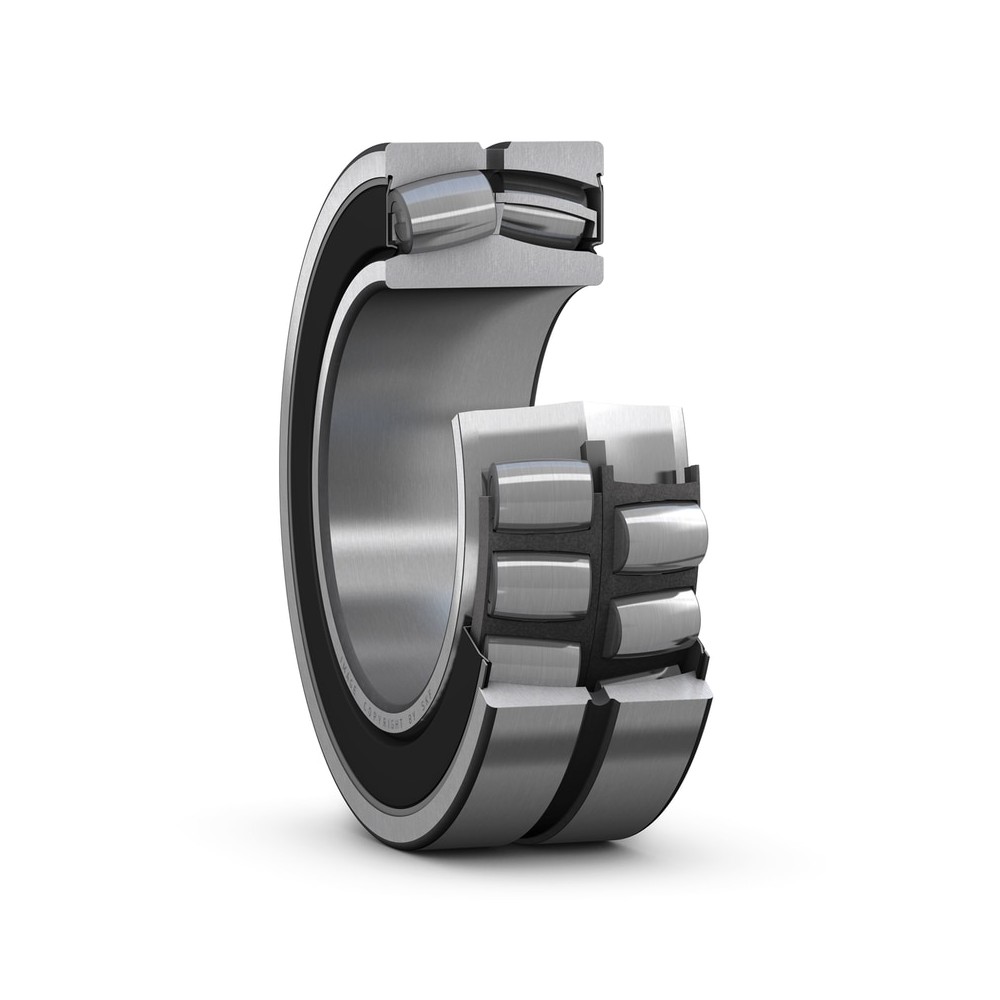

SKF 23132-2CS5W/C5GJA9 Spherical roller bearings

SKF 23132-2CS5W/C5GJA9 Spherical roller bearings

Product Code: 23132-2CS5W/C5GJA9
Part/No: Eshop002182
Brand: SKF
Spherical roller bearings can accommodate heavy loads in both directions. They are self-aligning and accommodate misalignment and shaft deflections, with virtually no increase in friction or temperature. Under normal operating conditions, sealed bearings are almost maintenance-free, keeping service costs and grease consumption low.
Accommodate misalignment
High load carrying capacity
Sealed for increased reliability
Low friction and long service life
Increased wear resistance
€0.00
(*The price will be determined)
Tax included
Quantity

100% Shopping Security
  On Request
Dimensions
Bore diameter 160 mm
Outside diameter 270 mm
Width 86 mm
Performance
Basic dynamic load rating 1,030 kN
Basic static load rating 1,400 kN
Limiting speed 0 r/min
Properties
SKF performance class SKF Explorer
Candidate for remanufacturing Yes
Sealing type Contact
Sealing Seal on both sides
Bore type Cylindrical
Cage Sheet metal
Locating feature bearing outer ring Without
Lubricant Grease
Number of rows 2
Radial internal clearance C5
Relubrication feature Without
Tolerance class Normal
Tolerance class for dimensions Normal
Tolerance class for runout P5
Logistics
Pack gross weight 20.65 kg
eClass name Spherical roller bearing
EAN 7316576942501
Product net weight 20.5 kg
