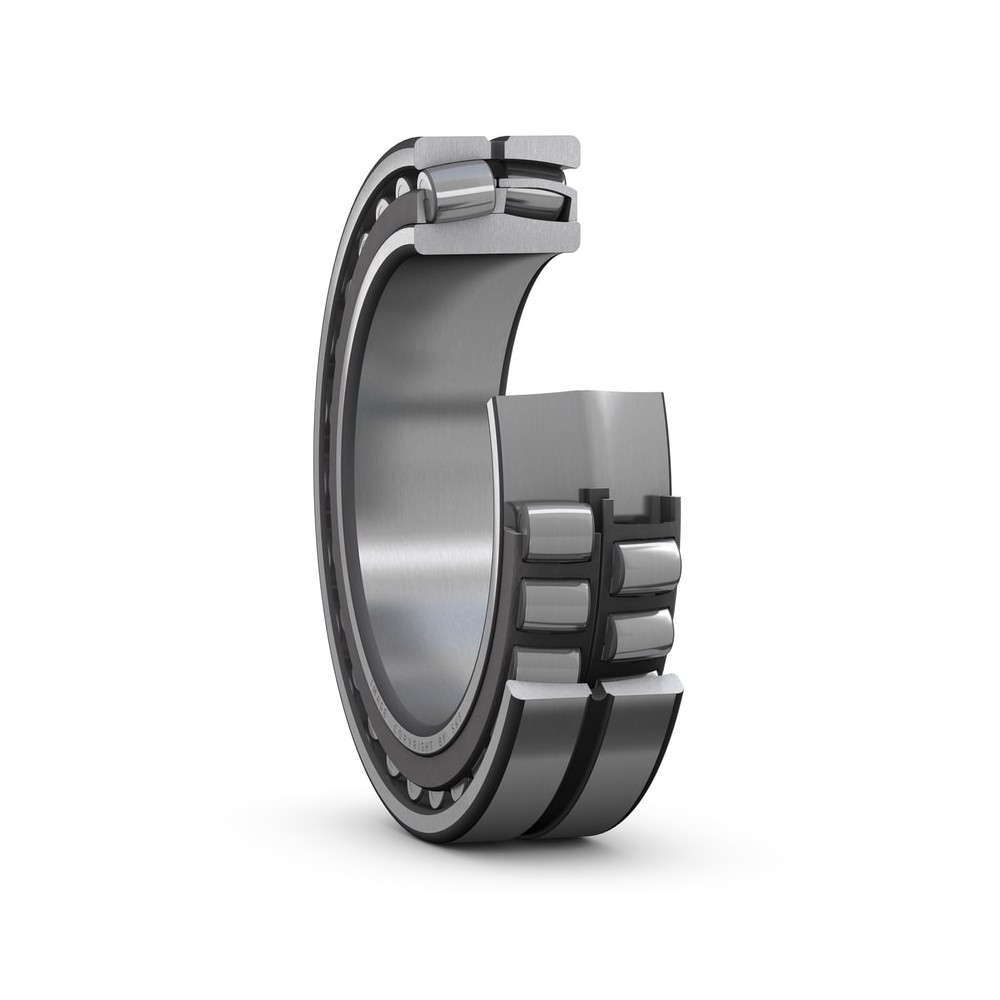

SKF 23940 CC/W33VE194 Spherical roller bearings

SKF 23940 CC/W33VE194 Spherical roller bearings

Product Code: 23940 CC/W33VE194
Part/No: Eshop002595
Brand: SKF
Spherical roller bearings can accommodate heavy loads in both directions. They are self-aligning and accommodate misalignment and shaft deflections, with virtually no increase in friction or temperature. The design includes one or two locating slots in the outer ring side face and includes features to facilitate relubrication.
Accommodate misalignment
High load carrying capacity
Relubrication features
Low friction and long service life
Increased wear resistance
€0.00
(*The price will be determined)
Tax included
Quantity

100% Shopping Security
  On Request
Dimensions
Bore diameter 200 mm
Outside diameter 280 mm
Width 60 mm
Performance
Basic dynamic load rating 651 kN
Basic static load rating 1,040 kN
Limiting speed 2,400 r/min
Reference speed 2,200 r/min
Properties
SKF performance class SKF Explorer
Candidate for remanufacturing Yes
Sealing Without
Bore type Cylindrical
Cage Sheet metal
Locating feature bearing outer ring Locating slot
Lubricant None
Number of rows 2
Radial internal clearance CN
Relubrication feature With
Tolerance class Normal
Tolerance class for dimensions Normal
Tolerance class for runout P5
Logistics
Pack gross weight 11.39 kg
eClass name Spherical roller bearing
EAN 7316575372422
Product net weight 11.25 kg
