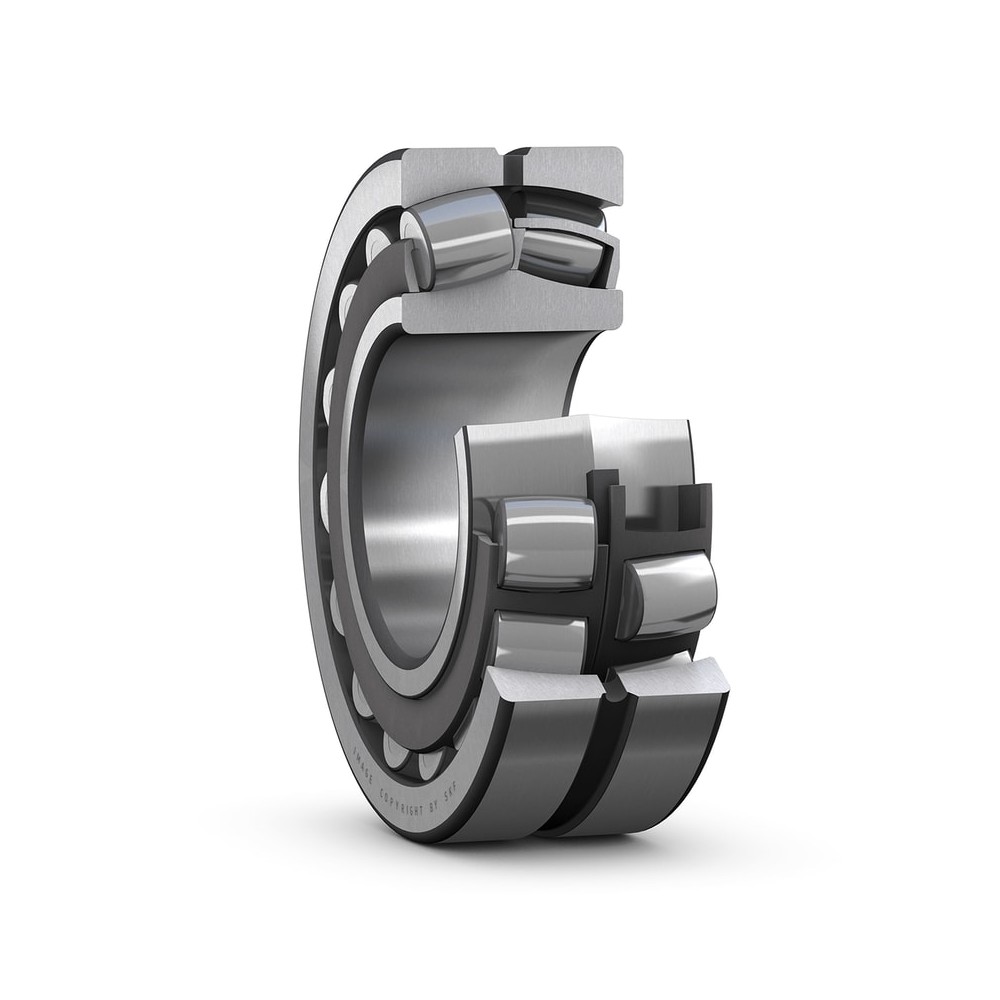

SKF 23960 CC/C083W509 Spherical roller bearings

SKF 23960 CC/C083W509 Spherical roller bearings

Product Code: 23960 CC/C083W509
Part/No: Eshop002642
Brand: SKF
Spherical roller bearings can accommodate heavy loads in both directions. They are self-aligning and accommodate misalignment and shaft deflections, with virtually no increase in friction or temperature. The design includes features to facilitate relubrication. The bearings can be used in a modular system, including housings, sleeves and nuts.
Accommodate misalignment
High load carrying capacity
Relubrication features
Low friction and long service life
Increased wear resistance
€0.00
(*The price will be determined)
Tax included
Quantity

100% Shopping Security
  On Request
Dimensions
Bore diameter 300 mm
Outside diameter 420 mm
Width 90 mm
Performance
Basic dynamic load rating 1,413 kN
Basic static load rating 2,500 kN
Limiting speed 1,600 r/min
Reference speed 1,400 r/min
Properties
SKF performance class SKF Explorer
Candidate for remanufacturing Yes
Sealing Without
Bore type Cylindrical
Cage Sheet metal
Locating feature bearing outer ring Without
Lubricant None
Number of rows 2
Radial internal clearance C3
Relubrication feature With
Tolerance class Special: C08
Tolerance class for dimensions Normal
Tolerance class for runout P5
Logistics
Pack gross weight 42.4 kg
eClass name Spherical roller bearing
EAN 7316571552132
Product net weight 38.49 kg
