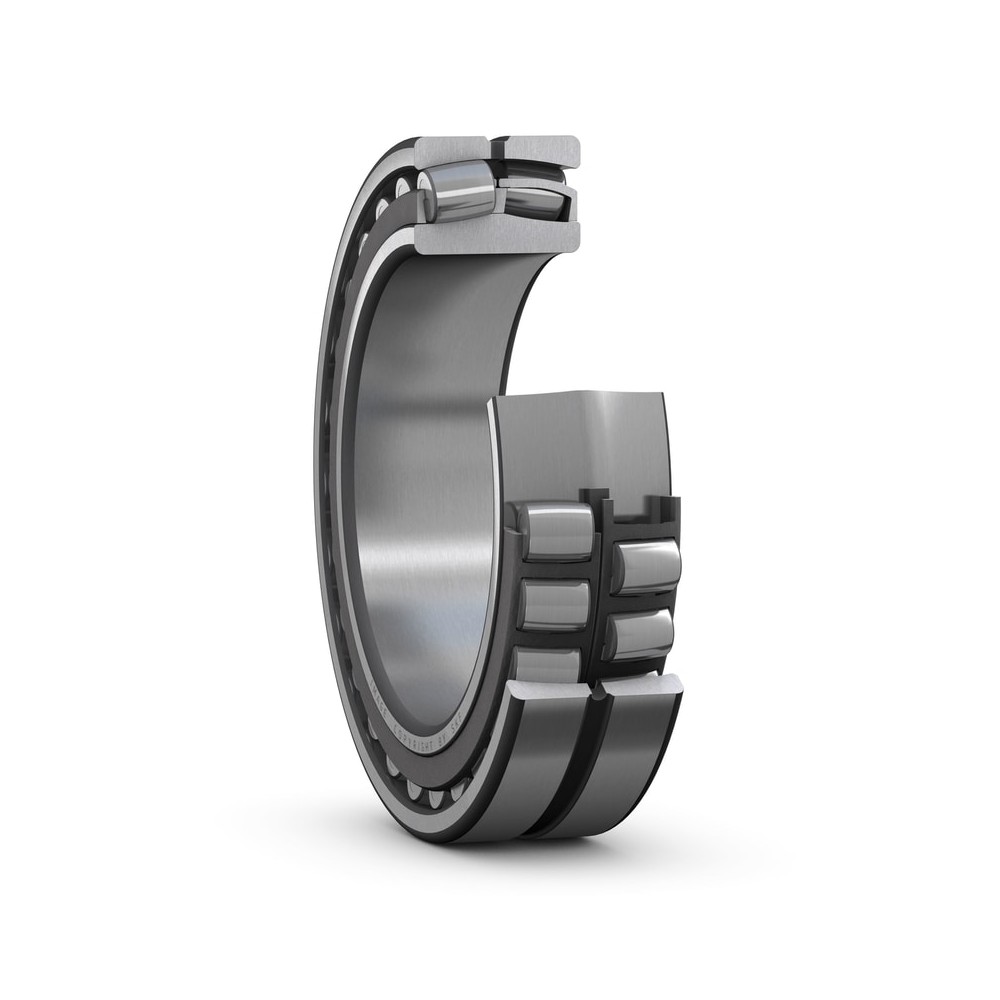

SKF 22244 CCN2/C3W33 Spherical roller bearings

SKF 22244 CCN2/C3W33 Spherical roller bearings

Product Code: 22244 CCN2/C3W33
Part/No: Eshop001429
Brand: SKF
Spherical roller bearings can accommodate heavy loads in both directions. They are self-aligning and accommodate misalignment and shaft deflections, with virtually no increase in friction or temperature. The design includes one or two locating slots in the outer ring side face and includes features to facilitate relubrication.
Accommodate misalignment
High load carrying capacity
Relubrication features
Low friction and long service life
Increased wear resistance
€0.00
(*The price will be determined)
Tax included
Quantity

100% Shopping Security
  On Request
Dimensions
Bore diameter 220 mm
Outside diameter 400 mm
Width 108 mm
Performance
Basic dynamic load rating 1,835 kN
Basic static load rating 2,360 kN
Limiting speed 2,000 r/min
Reference speed 1,500 r/min
Properties
SKF performance class SKF Explorer
Candidate for remanufacturing Yes
Sealing Without
Bore type Cylindrical
Cage Sheet metal
Locating feature bearing outer ring Locating slot
Lubricant None
Number of rows 2
Radial internal clearance C3
Relubrication feature With
Tolerance class Normal
Tolerance class for dimensions Normal
Tolerance class for runout P5
Logistics
Pack gross weight 64.9 kg
eClass name Spherical roller bearing
EAN 7316570252811
Product net weight 58.76 kg
