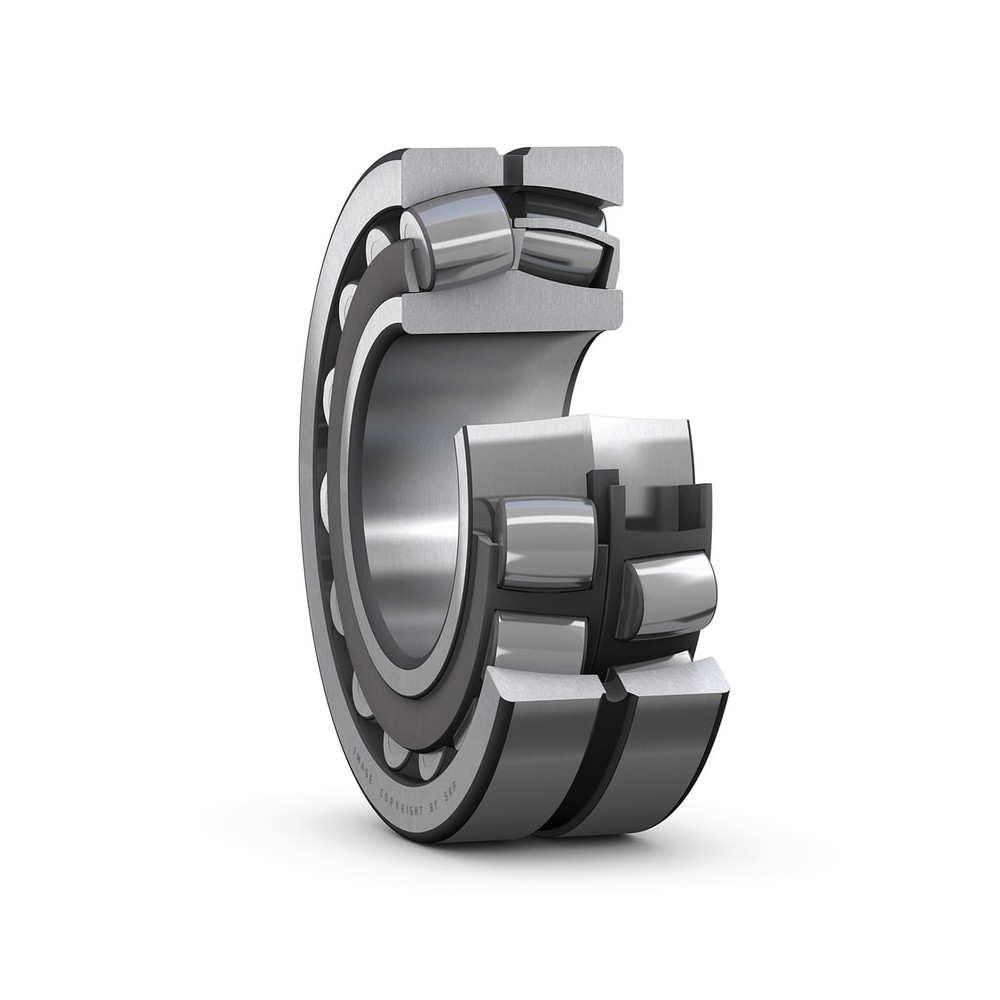

SKF 22308 EN/VB238 Spherical roller bearings

SKF 22308 EN/VB238 Spherical roller bearings

Product Code: 22308 EN/VB238
Part/No: Eshop001462
Brand: SKF
Spherical roller bearings can accommodate heavy loads in both directions. They are self-aligning and accommodate misalignment and shaft deflections, with virtually no increase in friction or temperature. They have an annular groove in the outer ring to retain a snap ring, and a design that includes features to facilitate relubrication. The bearings can be used in a modular system, including housings, sleeves and nuts.
Accommodate misalignment
High load carrying capacity
Relubrication features
Low friction and long service life
Increased wear resistance
€0.00
(*The price will be determined)
Tax included
Quantity

100% Shopping Security
  On Request
Dimensions
Bore diameter 40 mm
Outside diameter 90 mm
Width 33 mm
Performance
Basic dynamic load rating 155 kN
Basic static load rating 140 kN
Limiting speed 8,000 r/min
Reference speed 6,000 r/min
Properties
SKF performance class SKF Explorer
Sealing Without
Bore type Cylindrical
Cage Sheet metal
Locating feature bearing outer ring Snap ring groove
Lubricant None
Number of rows 2
Radial internal clearance CN
Relubrication feature With
Tolerance class Normal
Tolerance class for dimensions Normal
Tolerance class for runout P5
Logistics
Pack gross weight 1018.6 g
eClass name Spherical roller bearing
EAN 7316571570532
Product net weight 990.6 g
