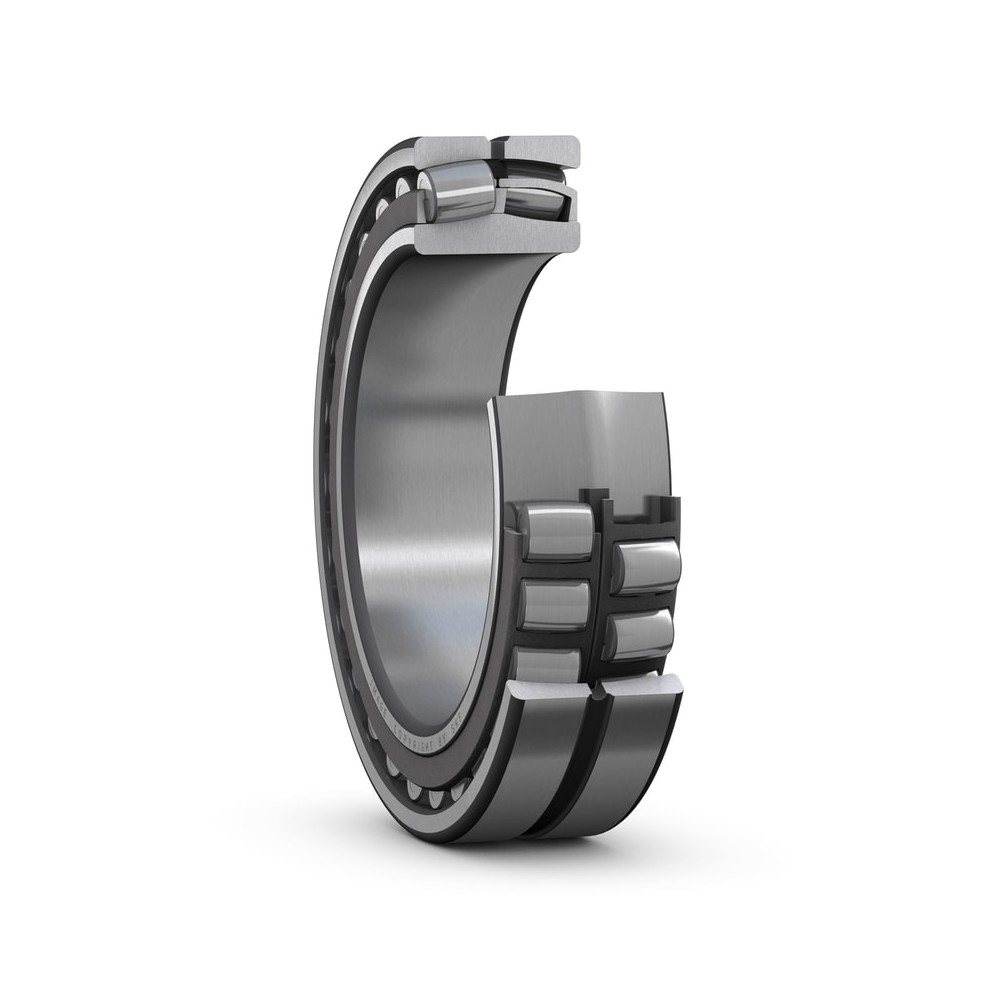

SKF 22324 CCK/C3 Spherical roller bearings

SKF 22324 CCK/C3 Spherical roller bearings

Product Code: 22324 CCK/C3
Part/No: Eshop001612
Brand: SKF
Spherical roller bearings can accommodate heavy loads in both directions. They are self-aligning and accommodate misalignment and shaft deflections, with virtually no increase in friction or temperature. They can be used in a modular system, including housings, sleeves and nuts.
Accommodate misalignment
High load carrying capacity
Low friction and long service life
Increased wear resistance
€3,303.45
Tax included
Quantity

100% Shopping Security
  On Request
Dimensions
Bore diameter 120 mm
Outside diameter 260 mm
Width 86 mm
Performance
Basic dynamic load rating 1,019 kN
Basic static load rating 1,120 kN
Limiting speed 2,600 r/min
Reference speed 2,000 r/min
Properties
SKF performance class SKF Explorer
Candidate for remanufacturing Yes
Sealing Without
Bore type Tapered 1:12
Cage Sheet metal
Locating feature bearing outer ring Without
Lubricant None
Number of rows 2
Radial internal clearance C3
Relubrication feature Without
Tolerance class Normal
Tolerance class for dimensions Normal
Tolerance class for runout P5
Logistics
Pack gross weight 22.14 kg
eClass name Spherical roller bearing
EAN 7316570227529
Product net weight 21.99 kg
