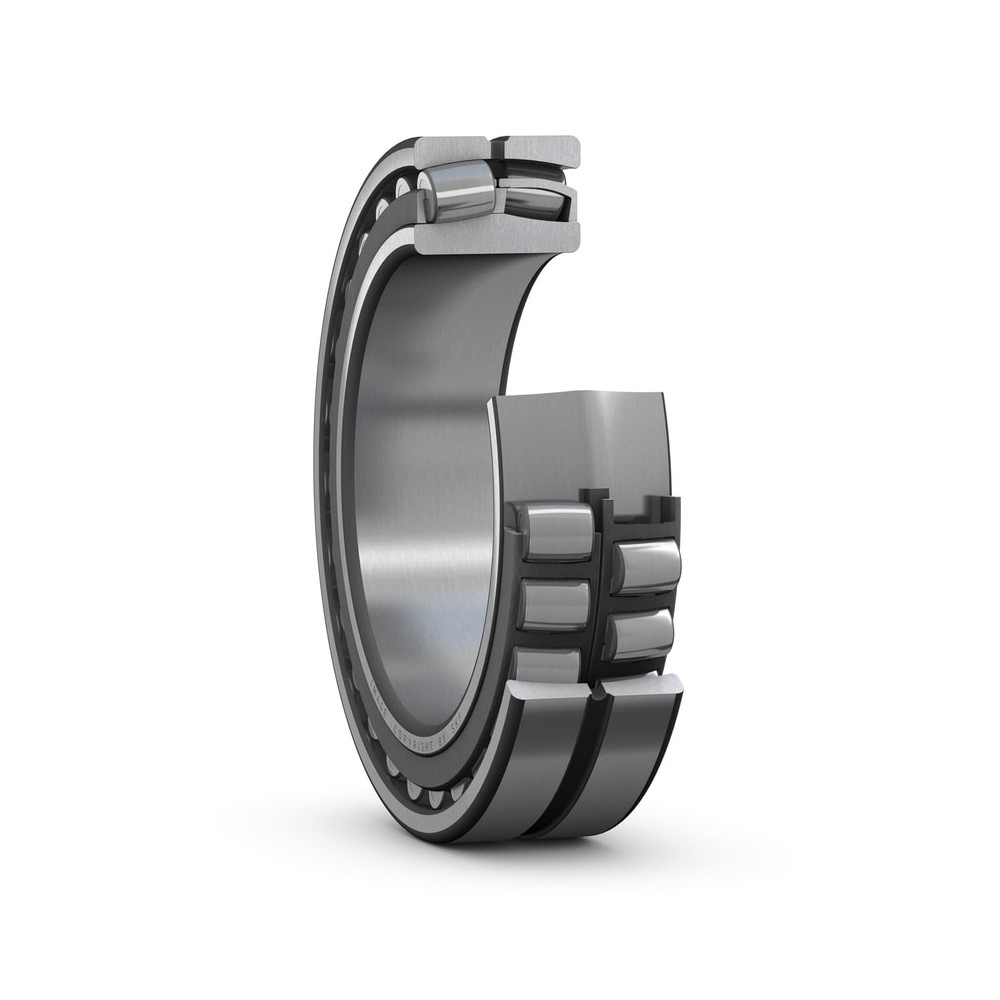

SKF 22326 CC/C3VA355 Spherical roller bearings

SKF 22326 CC/C3VA355 Spherical roller bearings

Product Code: 22326 CC/C3VA355
Part/No: Eshop001626
Brand: SKF
Spherical roller bearings can accommodate heavy loads in both directions. They are self-aligning and accommodate misalignment and shaft deflections, with virtually no increase in friction or temperature. They can be used in a modular system, including housings, sleeves and nuts.
Accommodate misalignment
High load carrying capacity
Low friction and long service life
Increased wear resistance
€0.00
(*The price will be determined)
Tax included
Quantity

100% Shopping Security
  On Request
Dimensions
Bore diameter 130 mm
Outside diameter 280 mm
Width 93 mm
Performance
Basic dynamic load rating 1176 kN
Basic static load rating 1320 kN
Limiting speed 2.400 r/min
Reference speed 1.800 r/min
Tolerance class for dimensions Normal
Properties
Sealing Without
Bore type Cylindrical
Cage Sheet metal
Locating feature bearing outer ring Without
Lubricant None
Number of rows 2
Radial internal clearance C3
Relubrication feature Without
SKF performance class SKF Explorer
Candidate for remanufacturing Yes
Logistics
EAN code 07316571120584
Product net weight 28.02 kg
eClass name Spherical roller bearing
